DESCRIPTION

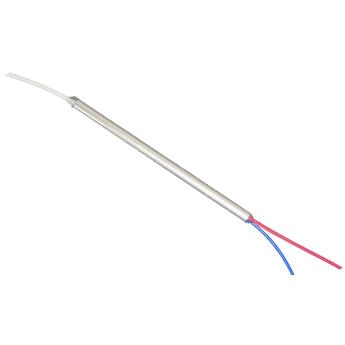

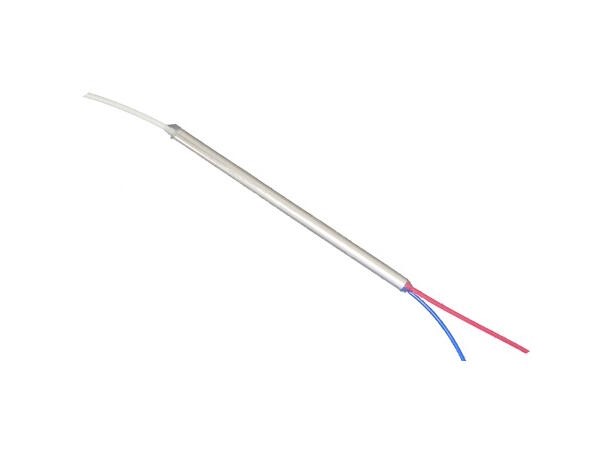

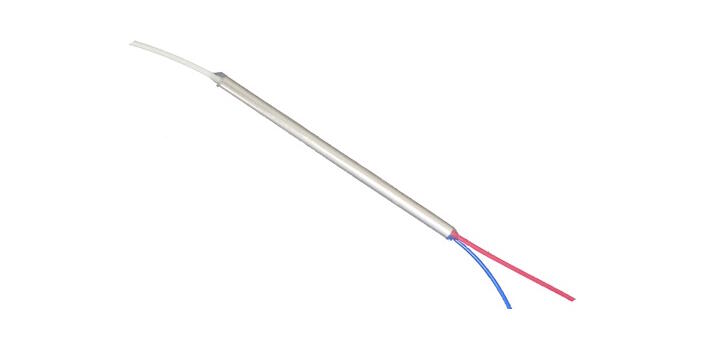

This fiber optic coupler taps off 2% of the optical power on a singlemode fiber. It supports a wide range of wavelengths and can thus be used for monitoring all types of signals being transported on the fiber including CWDM. The compact size is ideal for installation in a splicing enclosure.

FEATURES

• Fused Biconical Taper (FBT) All Band Coupler

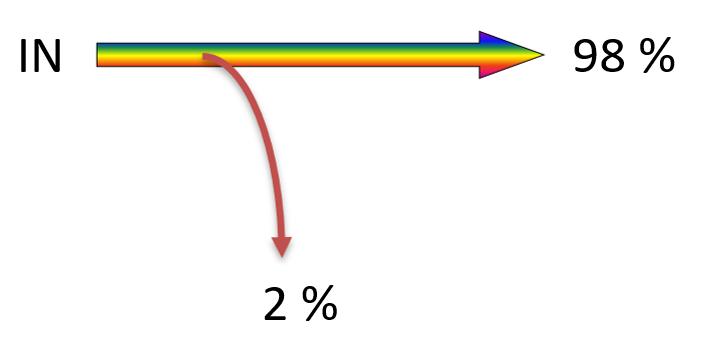

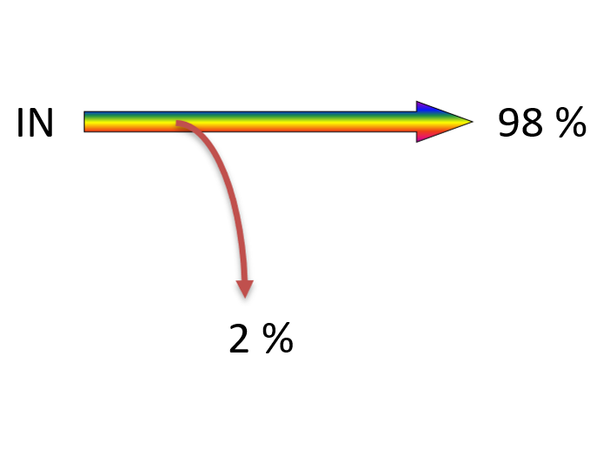

• 2/98 % power split ratio
• Supports wavelengths 1260-1620 nm
• Protocol transparent (support 1G, 10G etc.)
• 900 µm loose tube pigtails G.657.A1 fibers with LC/UPC connectors
• Tested for reliability according to Telcordia GR-1209-CORE/GR-1221-CORE
