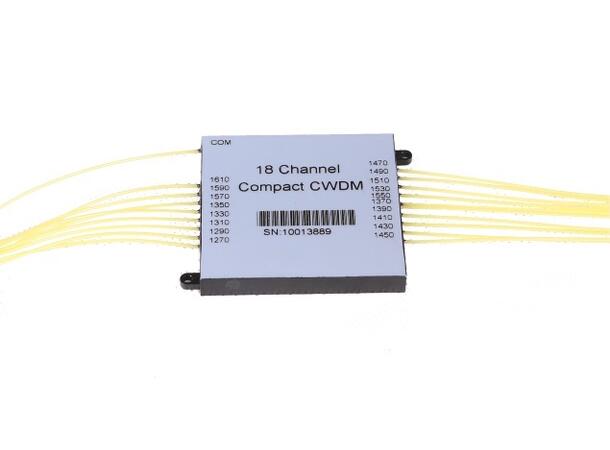

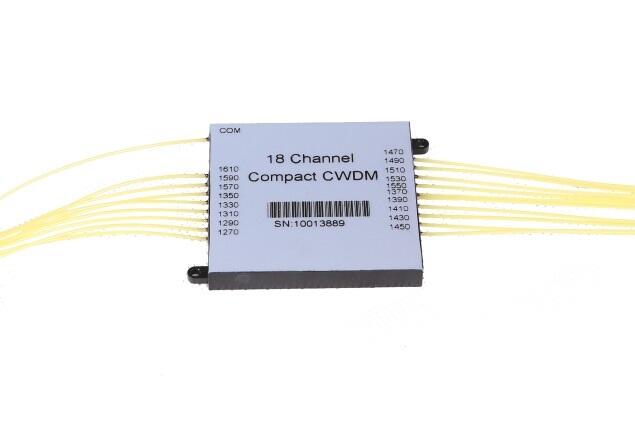

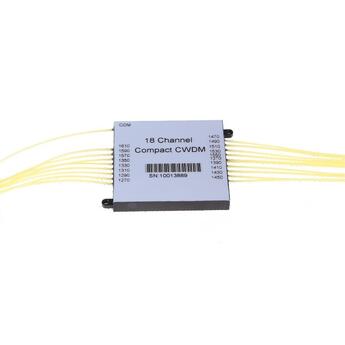

Fiberworks compact 18 ch. CWDM Mux/Demux C27-C61,for splice trays, 900µm pigtails Fiberworks compact 18 ch. CWDM Mux/Demux C27-C61,for splice trays, 900µm pigtails

Fiberworks compact 18 ch. CWDM Mux/Demux

C27-C61,for splice trays, 900µm pigtails

Varenr: F-CCMUX-18-2761-O9
Datablad / mer produktinformasjon
BeskrivelseTeknisk info
Beskrivelse
FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

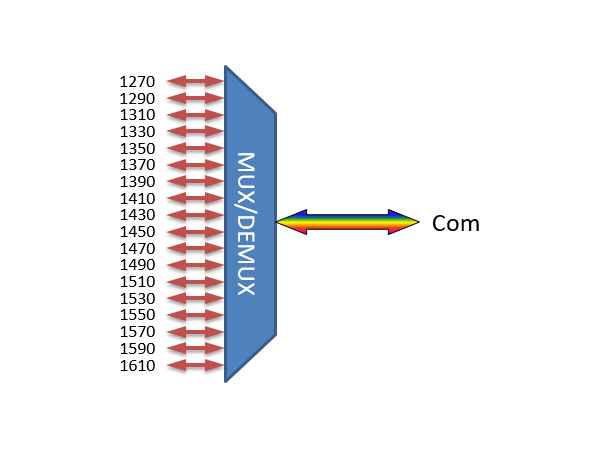

•  Standard 18 CWDM channels 1270 – 1610 nm, 20 nm spacing
•  50*50*6 mm box
•  1m pigtails, 900µm loose tube

• Operating temperature: -30 ~ +80 °C
•  Based on free space optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Insertion loss < 3.3 dB


Teknisk info

Produktinformasjon

Formfaktor Minimodul
Fibertype SM
Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 18
Add/drop-muligheter Nei, kun mux/demux
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
