Fiberworks 8+1 CATV CWDM Mux+Demux, APC C47-C61 + 1310nm/CWDM upgrade, Mon.ports Fiberworks 8+1 CATV CWDM Mux+Demux, APC C47-C61 + 1310nm/CWDM upgrade, Mon.ports Fiberworks 8+1 CATV CWDM Mux+Demux, APC C47-C61 + 1310nm/CWDM upgrade, Mon.ports Fiberworks 8+1 CATV CWDM Mux+Demux, APC C47-C61 + 1310nm/CWDM upgrade, Mon.ports

Fiberworks 8+1 CATV CWDM Mux+Demux, APC

C47-C61 + 1310nm/CWDM upgrade, Mon.ports

Varenr: F-CMUX-8+1-4761-MLA
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

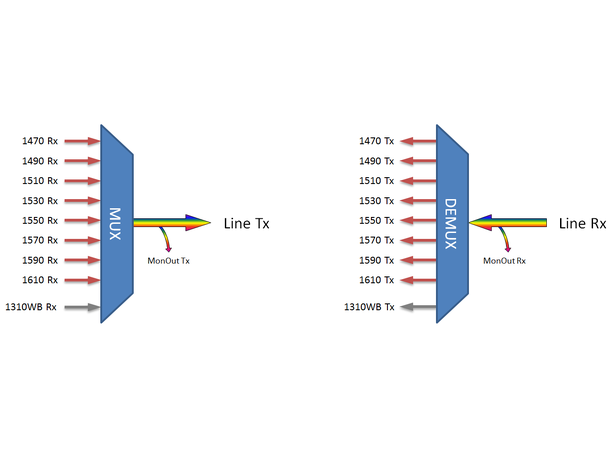

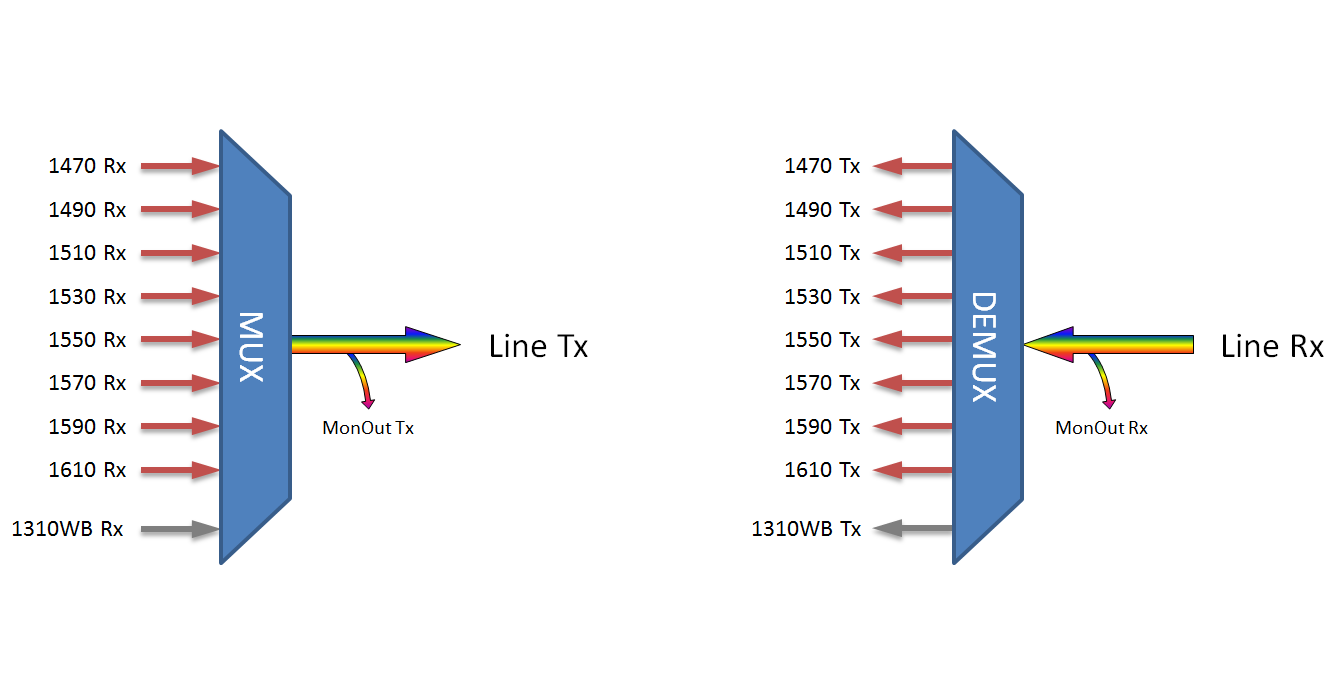

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- 8 CWDM channels 1470nm - 1610nm with 20nm spacing
- 1310nm wideband/upgrade port
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/APC connectors for minimal reflections
Teknisk info

Produktinformasjon

Formfaktor Fiberworks
Fibertype SM
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 8
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Vinklet (APC)
Konnektor LC/APC
Andre egenskaper
  • Monitorport
  • Utvidelsesport 1310 nm
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
