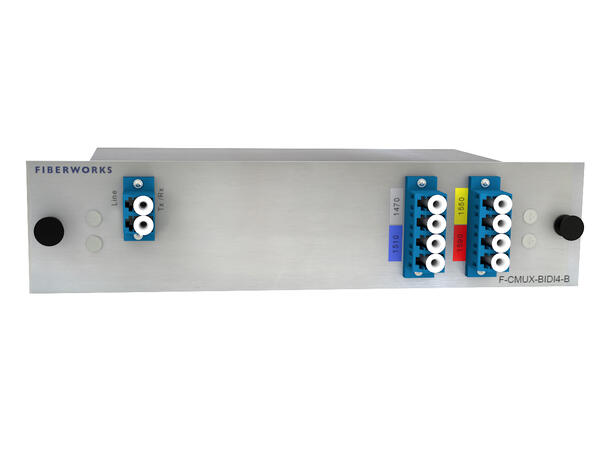

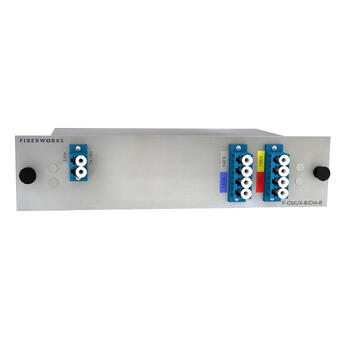

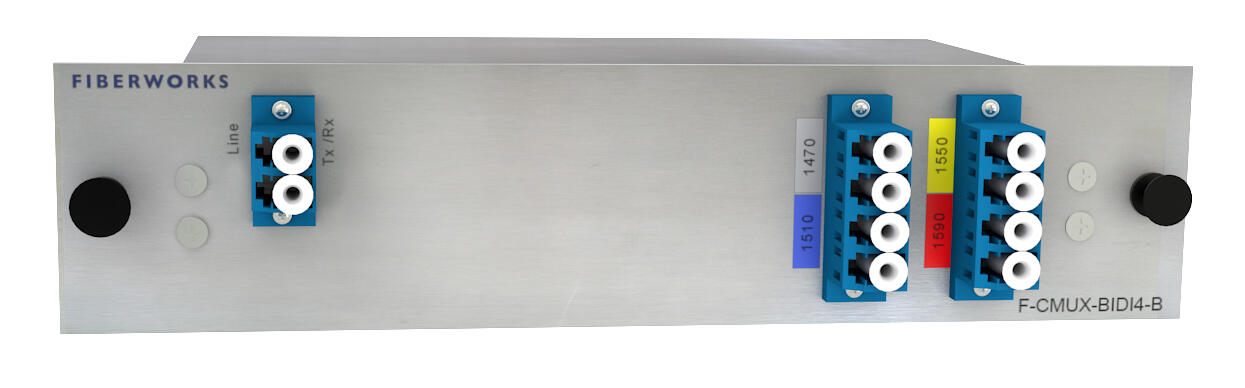

Fiberworks 4 ch. CWDM BiDi Mux/Demux Low Loss, Single fiber, LC/UPC, B-side

Fiberworks 4 ch. CWDM BiDi Mux/Demux

Low Loss, Single fiber, LC/UPC, B-side

Varenr: F-CMUX-BIDI4-B-LL-LU



Lurer du på hvordan single-fiber CWDM virker?



Klikk her for å lese mer om dette!





BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- 4 bi-directional channels using 8 CWDM wavelengths 1470nm - 1610nm with 20nm spacing

- Ultra low insertion loss (< 1.3 dB)
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor Fiberworks
Fibertype SM
Konnektor LC/UPC
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
