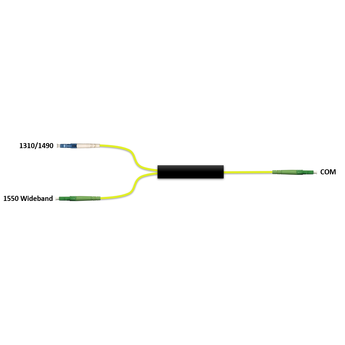

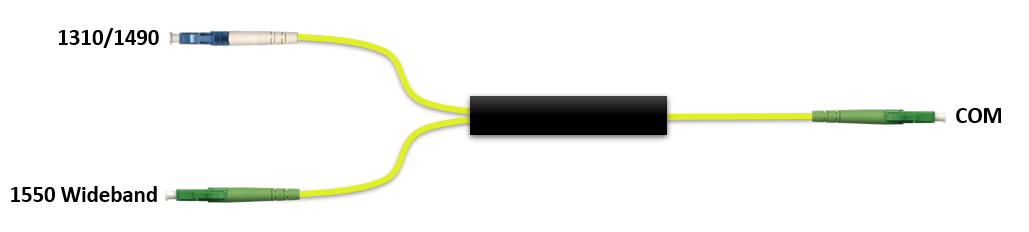

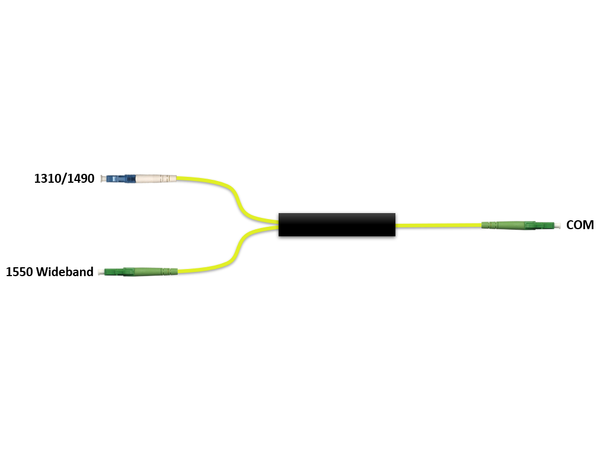

Fiberworks 1 ch. CWDM OADM 1550 nm wide Patchcord style, LC connectors UPC/APC

Fiberworks 1 ch. CWDM OADM 1550 nm wide

Patchcord style, LC connectors UPC/APC

Varenr: F-COADM-1-IY-LC-15WB
BeskrivelseTeknisk info
Beskrivelse
FEATURES
  • 1550nm and 1310/1490nm splitter/combiner e.g. for RF overlay
  • ABS box 90x20x10 mm
  • 2 mm patchcord style
  • LC/UPC connector on 1310/1490
  • LC/APC connectors on 1550WB and Com
  • Based on thin film optics with epoxy free optical path
  • Protocol transparent (support 1G, 10G etc.)

SPECIFICATIONS
  • Passband 1550WB port: 1540-1560 nm
  • Reflection band 1310/1490 port: 1260-1360 and 1480-1500 nm.
  • Insertion loss: < 0.8 dB



Teknisk info

Produktinformasjon

Formfaktor Plastboks
Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 1
Add/drop-muligheter Ja, "drop & continue"
Konnektortype Rett (UPC, PC)
Konnektor
  • LC/APC
  • LC/UPC
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
