Corning Fibrlok Splice Holder Assembly with 2529 Fibrlok splice Corning Fibrlok Splice Holder Assembly with 2529 Fibrlok splice

Corning Fibrlok Splice Holder Assembly

with 2529 Fibrlok splice

Varenr: 3M-2539
Alt. varenr: 7100135228
BeskrivelseTilbehør
Beskrivelse

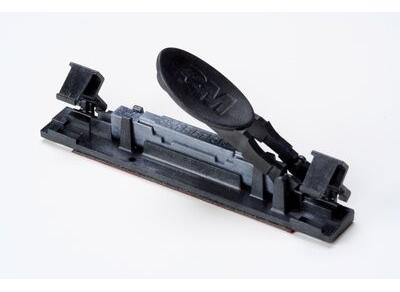

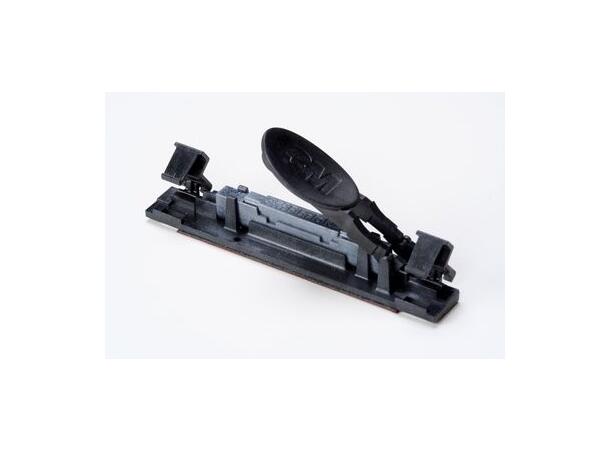

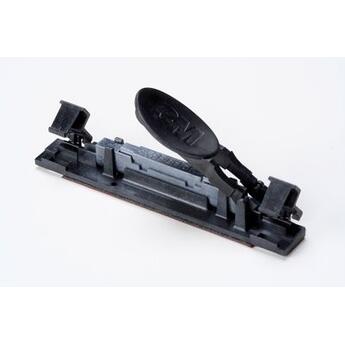

The 2539 splice/holder integrates the Corning Fibrlok II splice 2529, actuation tool, and holder all in one package. It helps enable fast, on-site installation without a separate assembly tool or splice tray.

It enables fast, on-site installation without a separate assembly tool or splice tray.

Designed for restoration of broken fiber and the final Fiber-to-the-Premise (FTTP) drop connection, it can be easily used with singlemode or multimode fibers with 250µm or 900µm tight buffer. Clamps on each side of the splice provide strain relief for the 900µm tight buffer for longterm stability and reliability.

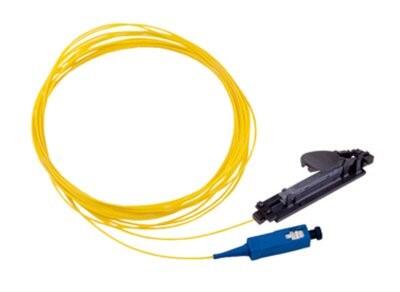

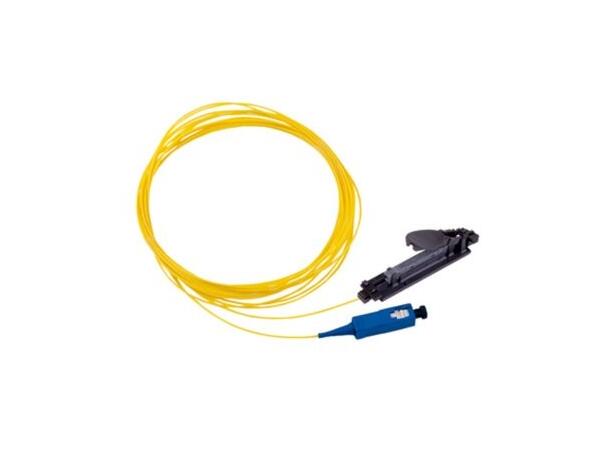

Corning VHB Tape on the bottom of the splice/holder permanently holds it at the splice location. The Fibrlok II splice/holder is also available with a pre-terminated SC/APC or SC/UPC pigtail for easy installation.



Sold in 60-packs. (Price is EA)
Tilbehør
