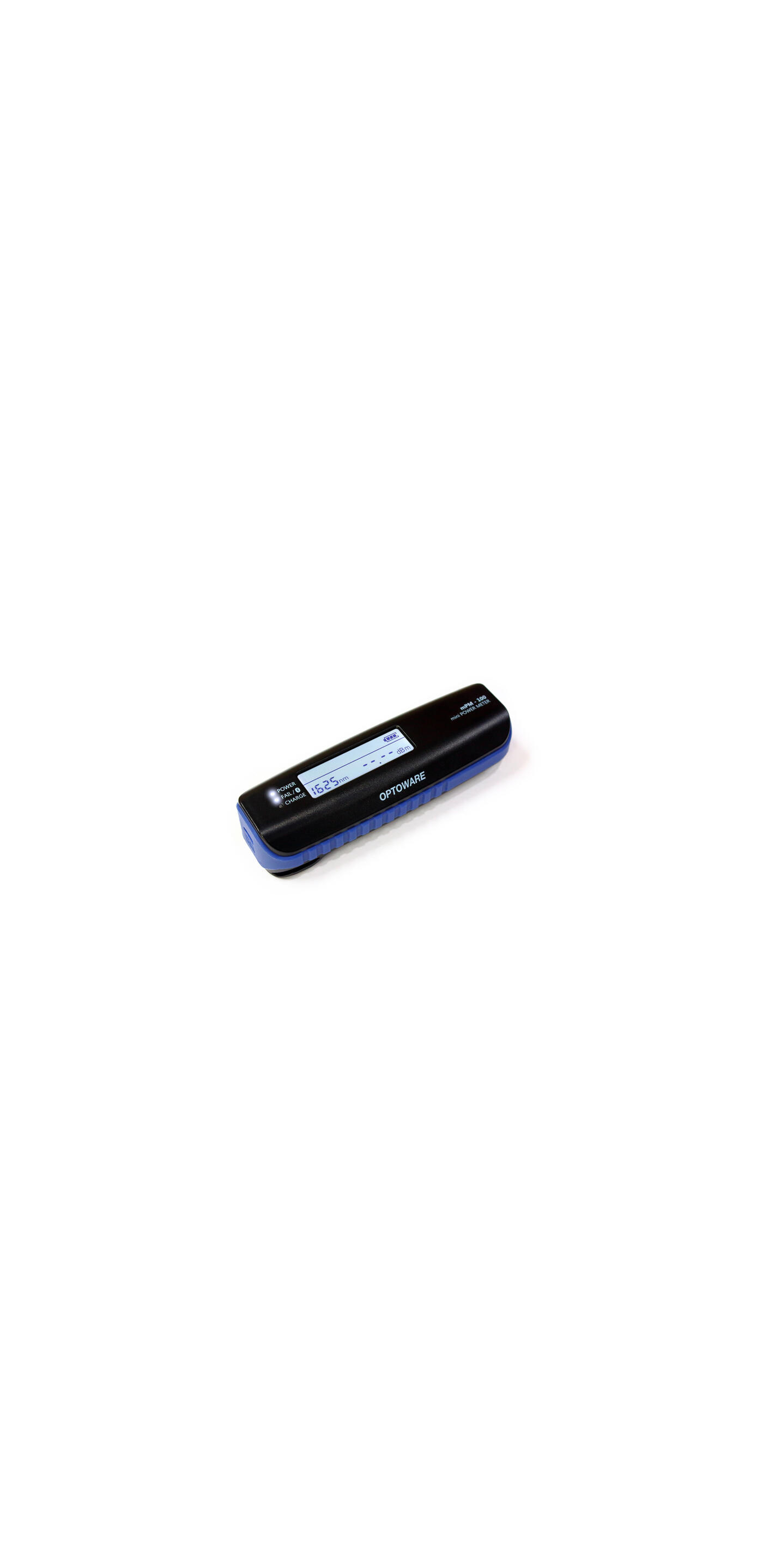

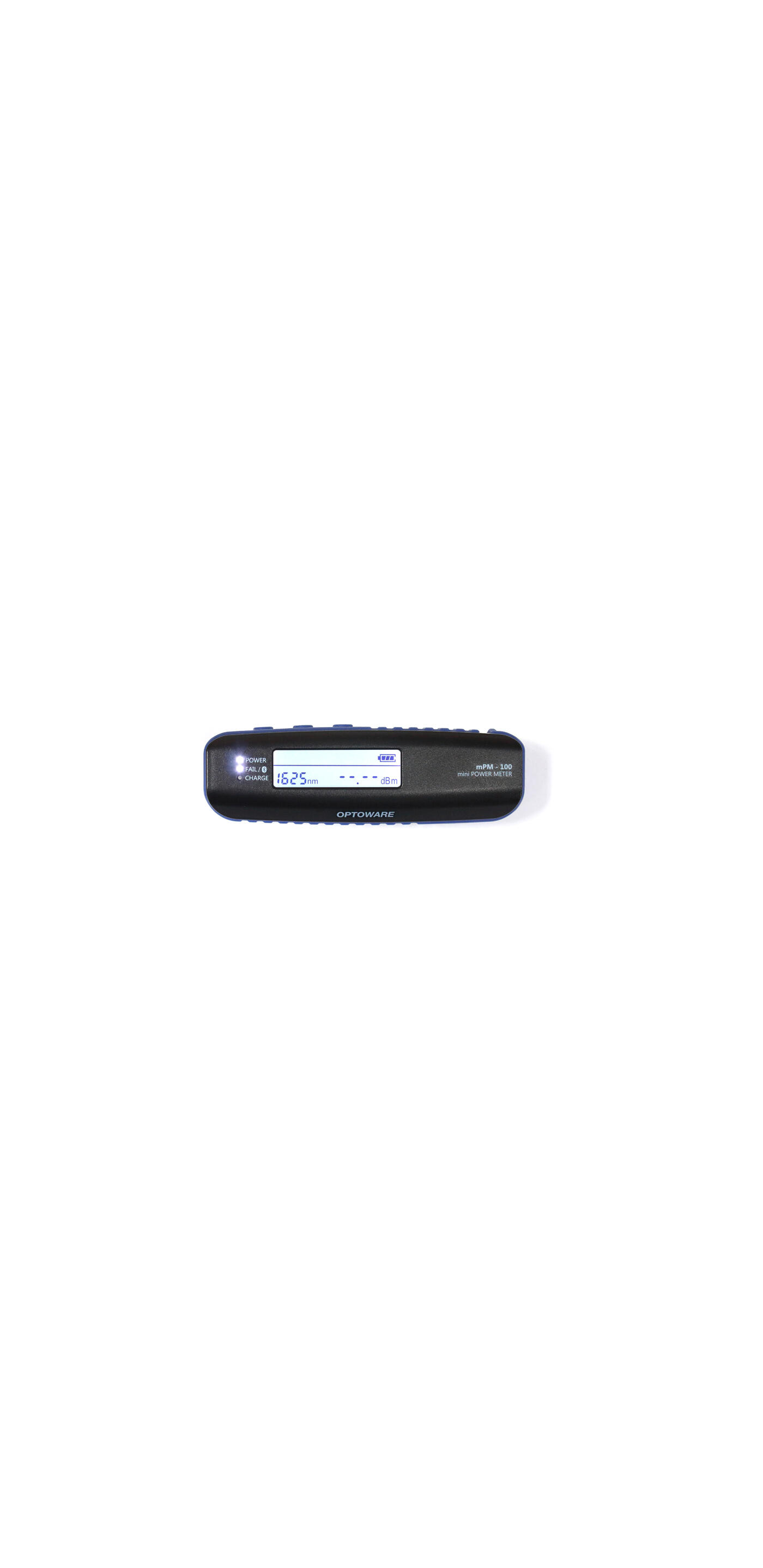

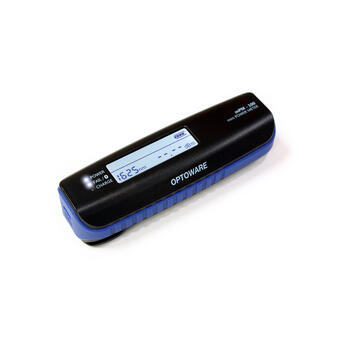

Mini Power Meter SM/MM 22 bølgelengder

CWDM+850/980/1300/1625nm, -40 ~ +25 dBm

Varenr: TM-mPM-120-22B
BeskrivelseAlternativer
Beskrivelse

FEATURES
- Power meter for high power, up to +25 dBm
- Very small and lightweight
- Communicates with Smartphone via USB / Bluetooth
- Communicates with PC via USB

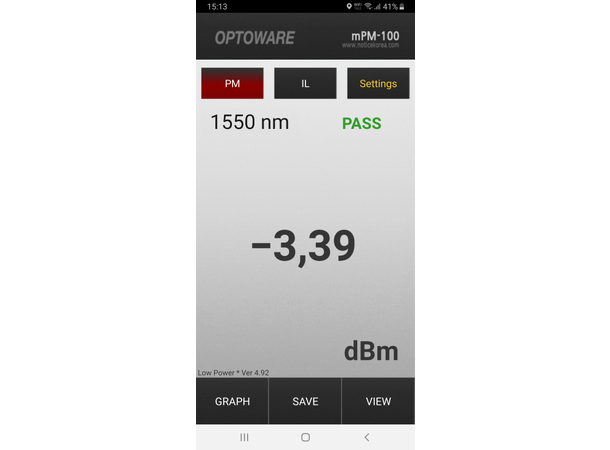

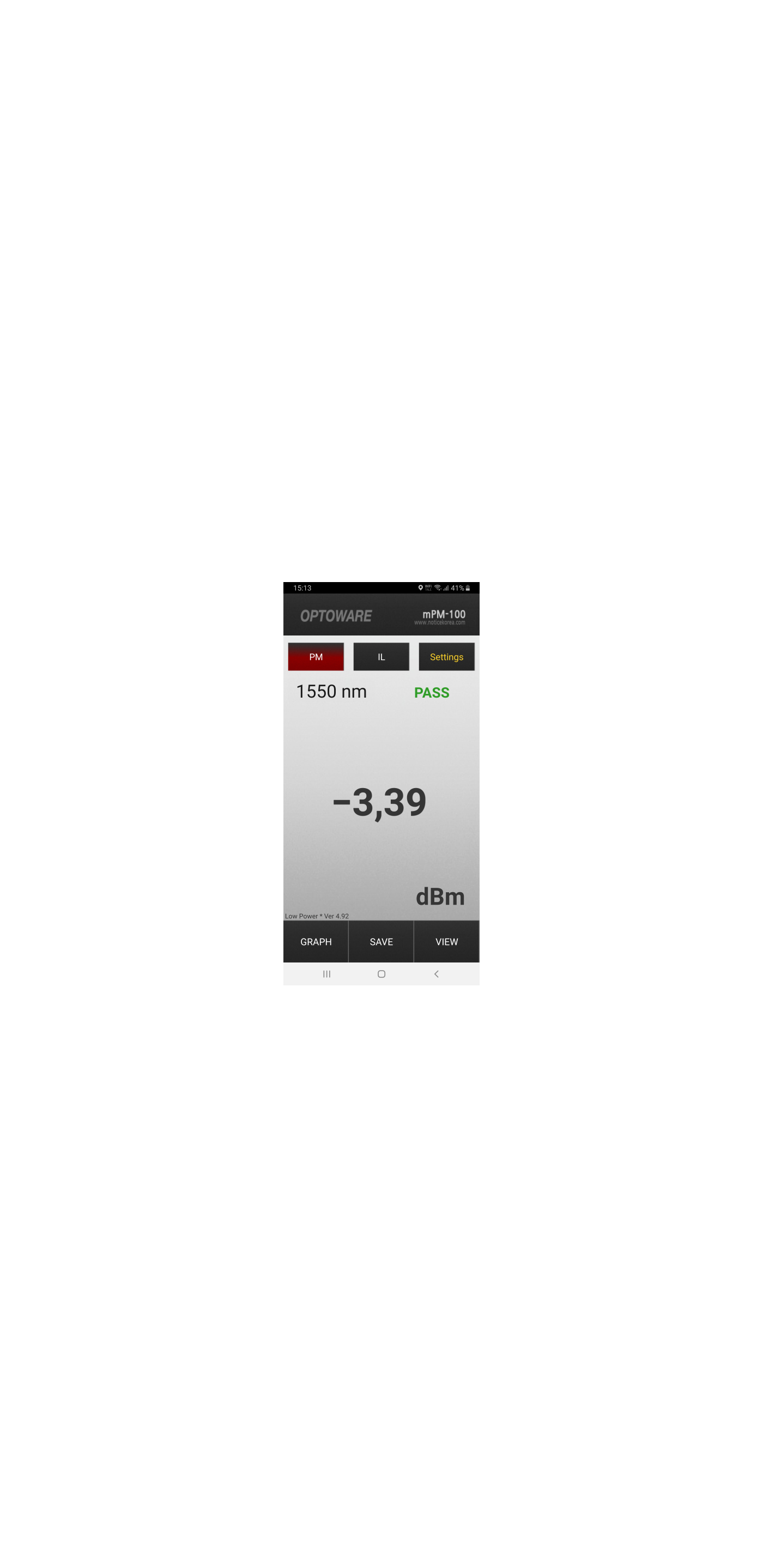

- Smartphone application software and PC Software
- Internal data storage up to 100 measurements
- Pass/Fail indication for in-field compliance
- Li-ion Polymer rechargeable battery
- Battery charging via a USB interface

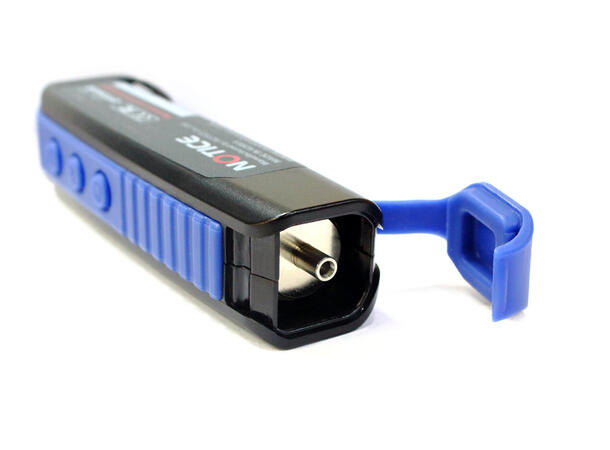

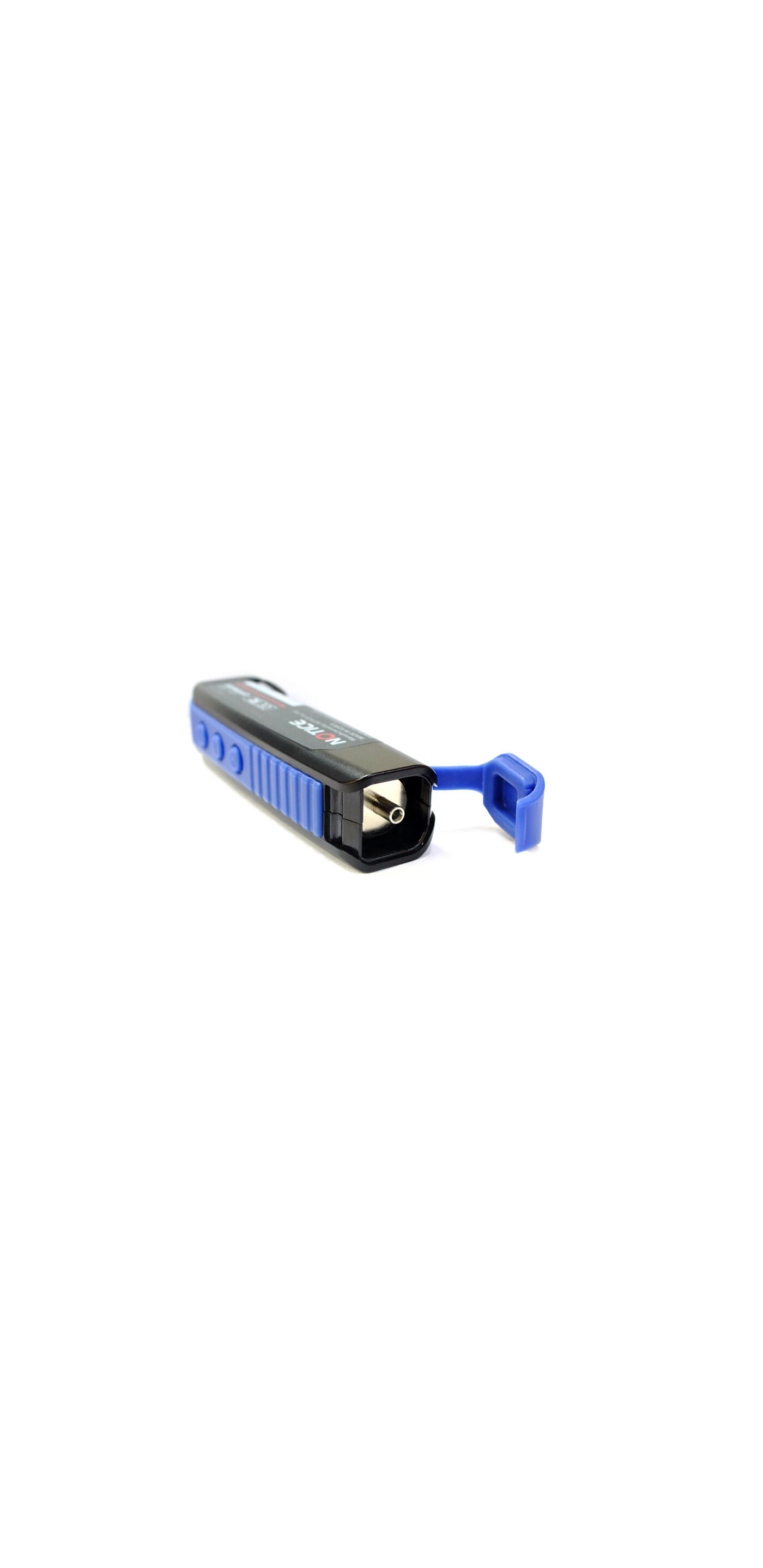

- Universal 2.5mm adapter to accept FC, SC or ST (1.25mm adapter option)
- 22 Factory-calibrated wavelengths (nm)
850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625



Parameters Values
Adapter type Universal 2.5mm adapter / 1.25 mm adapter (option)
Fiber type Single-mode and Multi-mode
Calibrated Wavelengths mPM 120-22B 850, 980, 1300 and 1625 nm plus CWDM 18 wavelengths 1270 ~ 1610 nm
Wavelength range 800 ~ 1650 nm
Measurement range +25 ~ -40 dBm
Resolution 0.01 dB
Measurement accuracy ±5 % @ -20 dBm
Display unit nm, dBm
Battery Type Li-ion Polymer Rechargeable
Power 3.7 V
Life 3 hrs (Continuous usage)
Charging time 1 hr
General Spec. Size & Weight 32(H) X 102(W) X 24(D) mm, 70 g

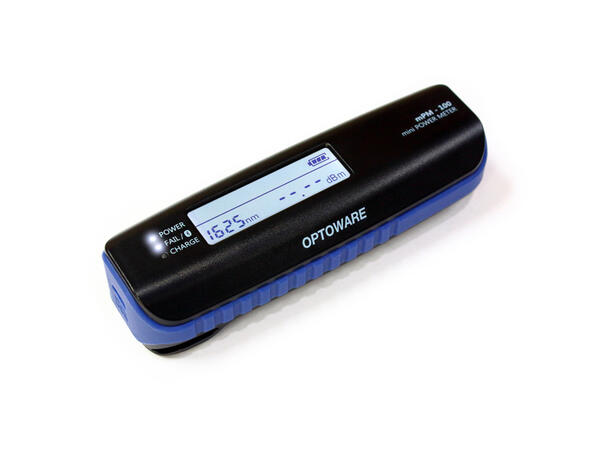

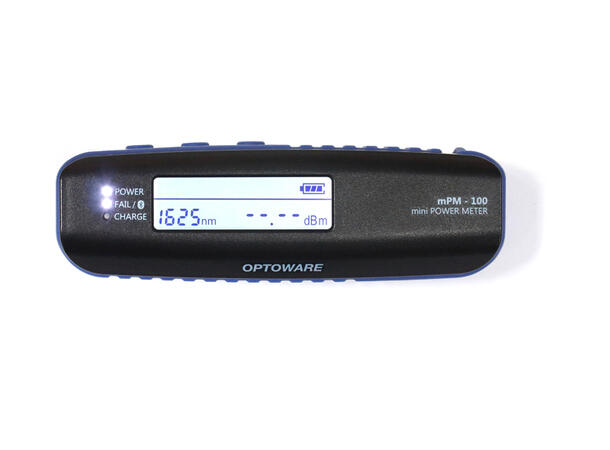

Display LCDw/LED backlight, 3LED indicators
Data storage 100 measurements
External interface USB 2.0, Bluetooth
