FEATURES
- Very small and lightweight
- Communicates with Smartphone via USB / Bluetooth
- Communicates with PC via USB

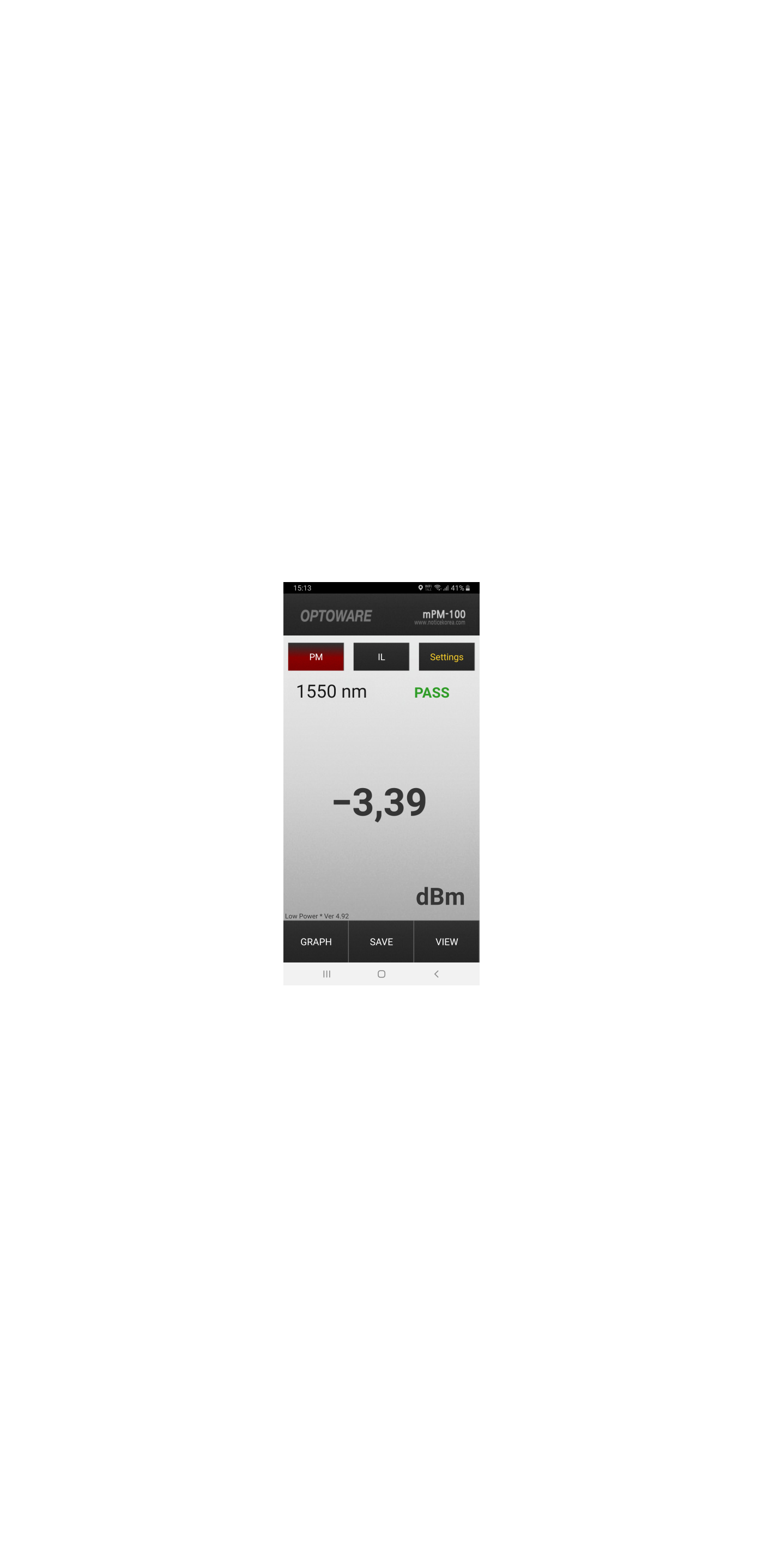

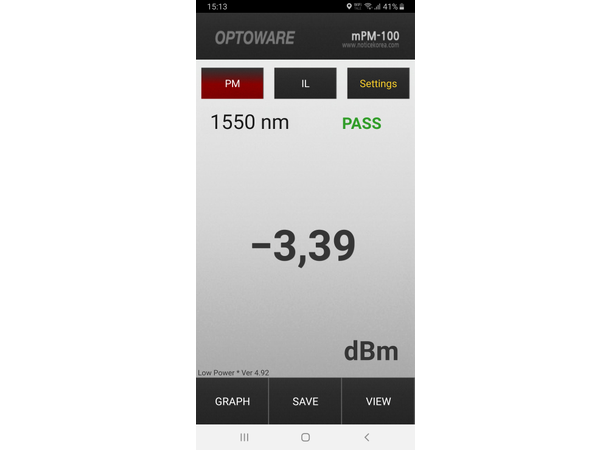

- Smartphone application software and PC Software
- Internal data storage up to 100 measurements
- Pass/Fail indication for in-field compliance
- Li-ion Polymer rechargeable battery
- Battery charging via a USB interface

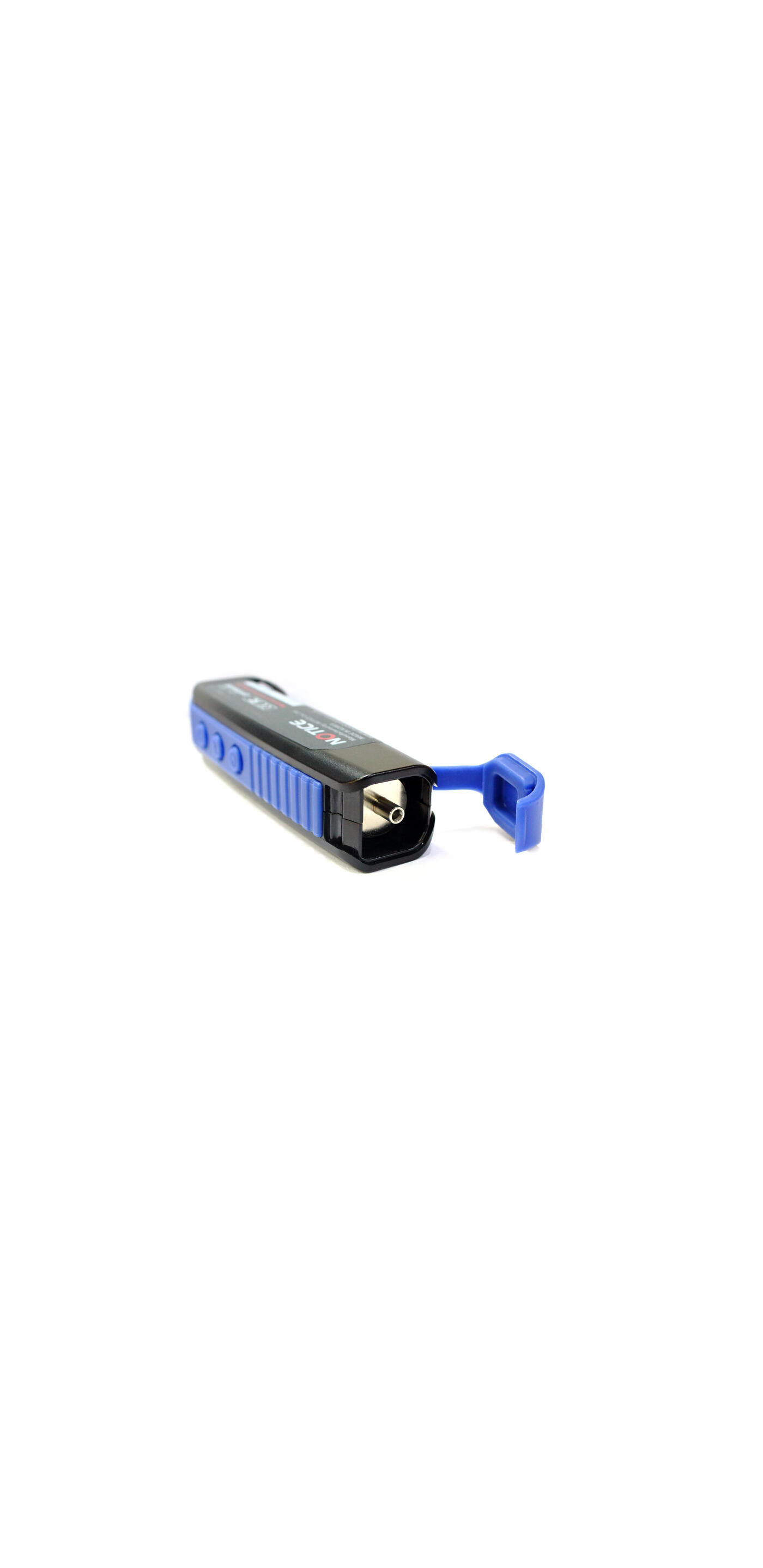

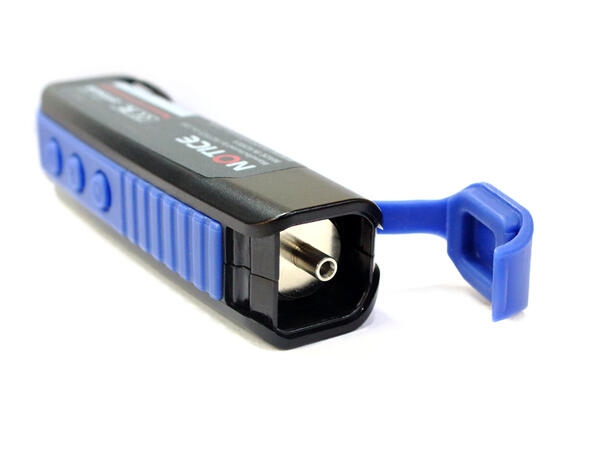

- Universal 2.5mm adapter to accept FC, SC or ST (1.25mm adapter option)
- 5 Factory-calibrated wavelengths (nm): 850, 1300, 1310, 1490, 1550
|
Parameters
|
Values
|
| Adapter type |
Universal 2.5mm adapter / 1.25 mm adapter (option) |
| Fiber type |
Single-mode and Multi-mode |
| Calibrated Wavelengths |
mPM 100-5B |
850, 1300, 1310, 1490 and 1550 nm |
| Wavelength range |
800 ~ 1650 nm |
| Measurement range |
+10 ~ -60 dBm |
| Resolution |
0.01 dB |
| Measurement accuracy |
±5 % @ -20 dBm |
| Display unit |
nm, dBm |
| Battery |
Type |
Li-ion Polymer Rechargeable |
| Power |
3.7 V |
| Life |
3 hrs (Continuous usage) |
| Charging time |
1 hr |
| General Spec. |
Size & Weight |
32(H) X 102(W) X 24(D) mm, 70 g |
| Display |

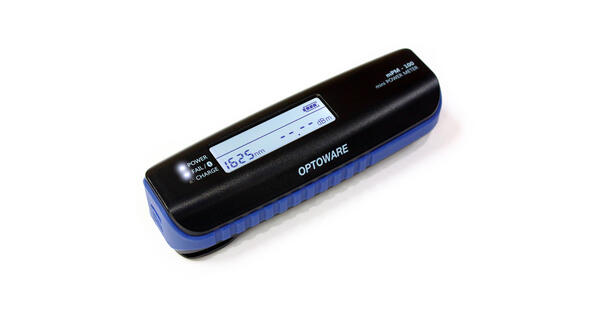

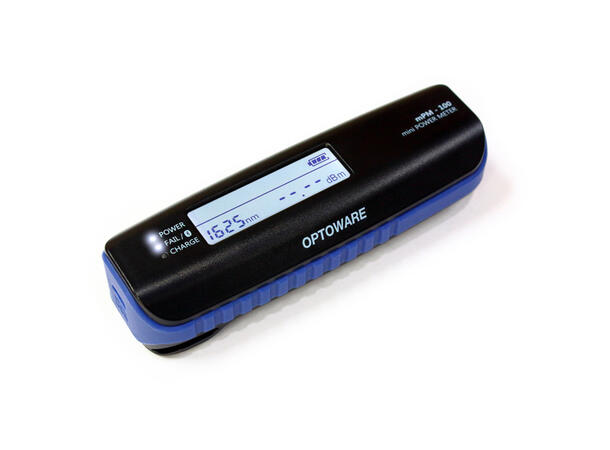

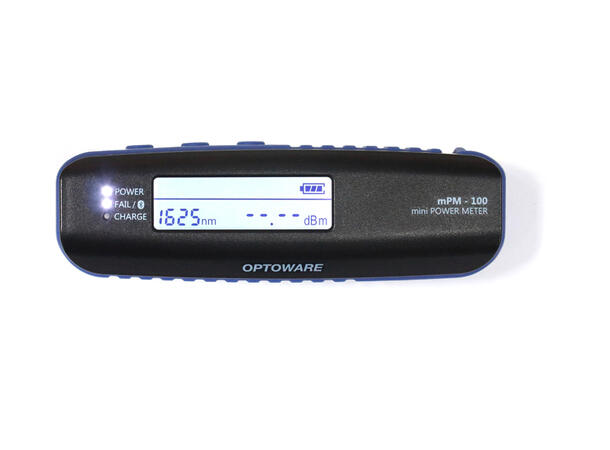

LCDw/LED backlight, 3LED indicators |
| Data storage |
100 measurements |
| External interface |
USB 2.0, Bluetooth |
