Fiberworks compact 8 ch. CWDM Mux/Demux C29-C43,for splice trays, 250µm pigtails Fiberworks compact 8 ch. CWDM Mux/Demux C29-C43,for splice trays, 250µm pigtails

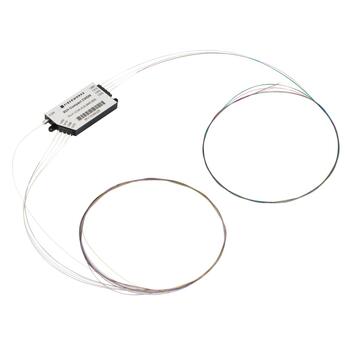

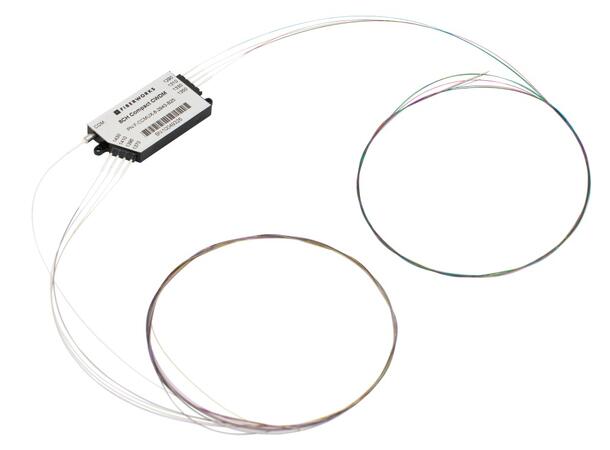

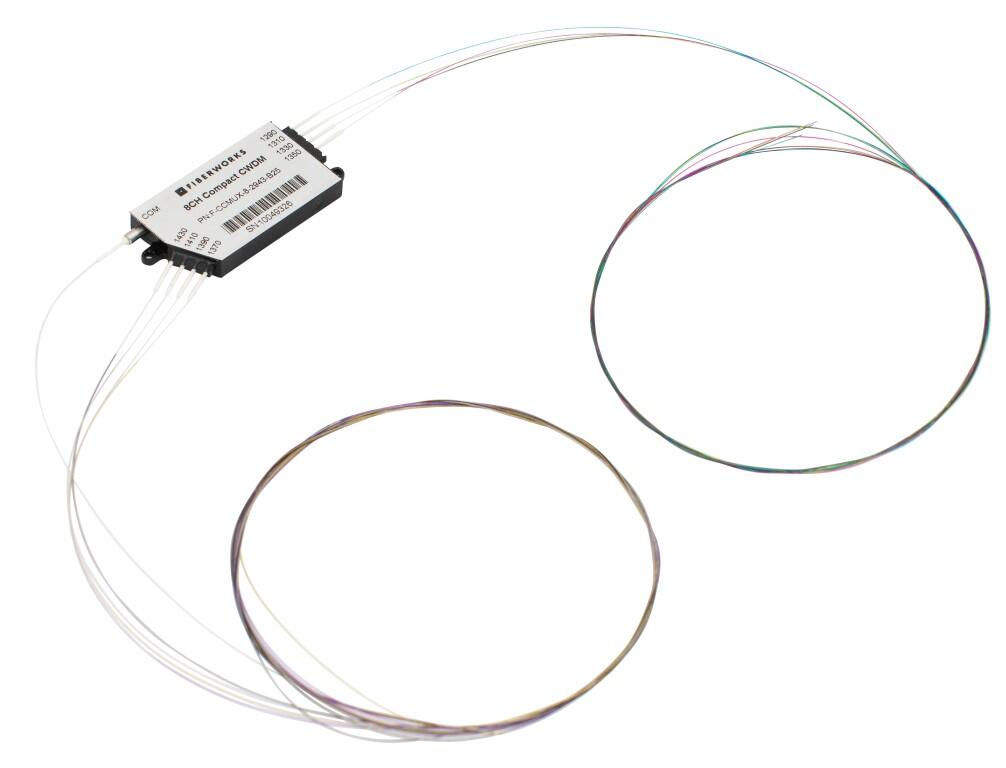

Fiberworks compact 8 ch. CWDM Mux/Demux

C29-C43,for splice trays, 250µm pigtails

Varenr: F-CCMUX-8-2943-B25
Datablad / mer produktinformasjon
BeskrivelseTeknisk info
Beskrivelse
FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

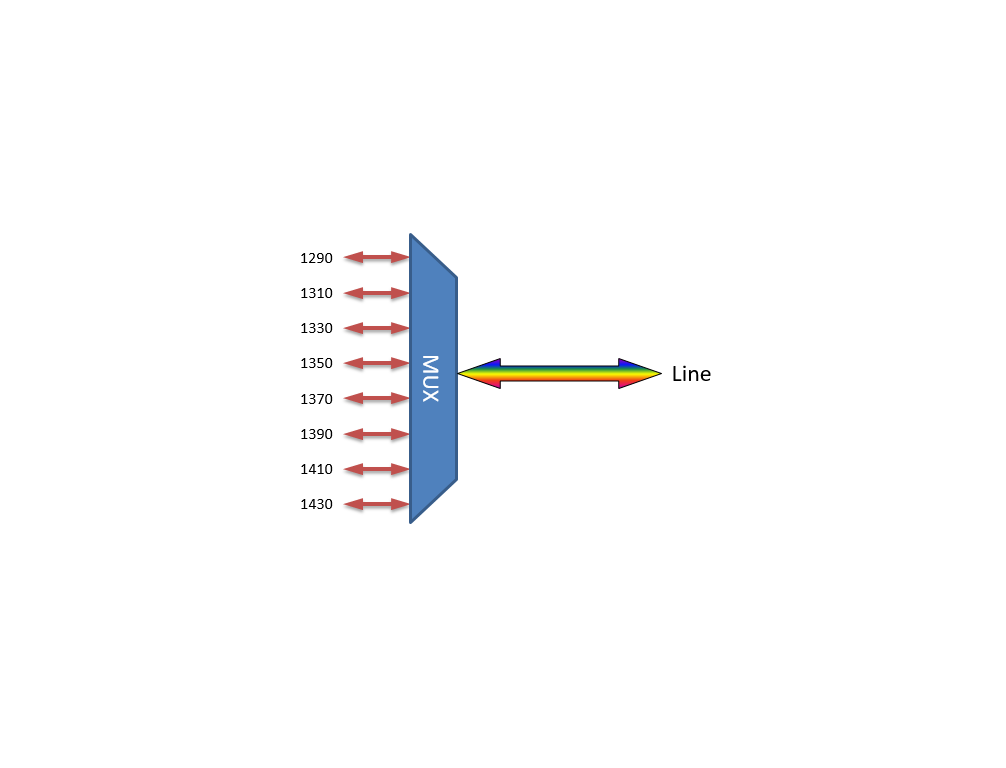

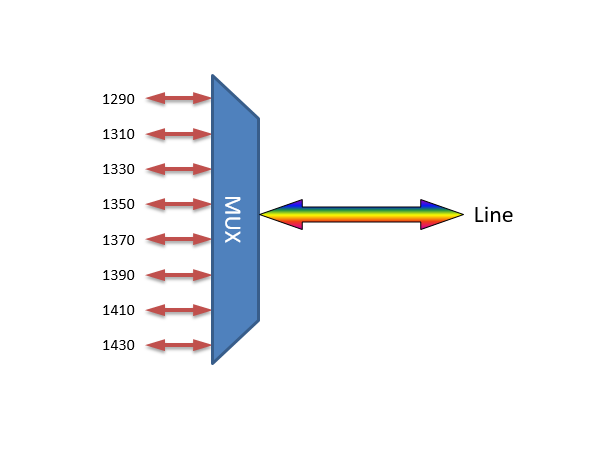

•  Standard 8 CWDM channels 1290 – 1430 nm, 20 nm spacing
•  44*25*6 mm box
•  1m pigtails, 250µm
• Operating temperature: -40 ~ +80 °C
•  Based on free space optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)


Teknisk info

Produktinformasjon

Formfaktor Minimodul
Fibertype SM
Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 8
Add/drop-muligheter Nei, kun mux/demux
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
