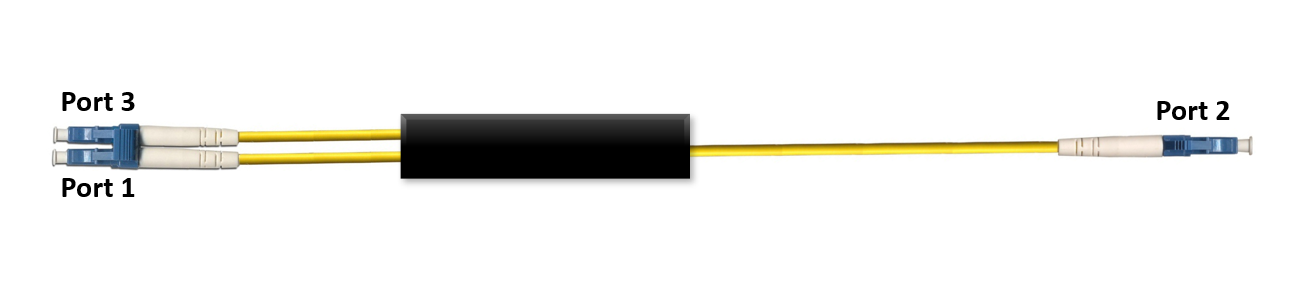

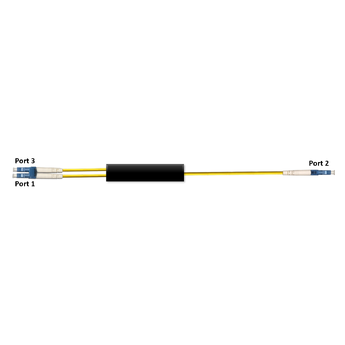

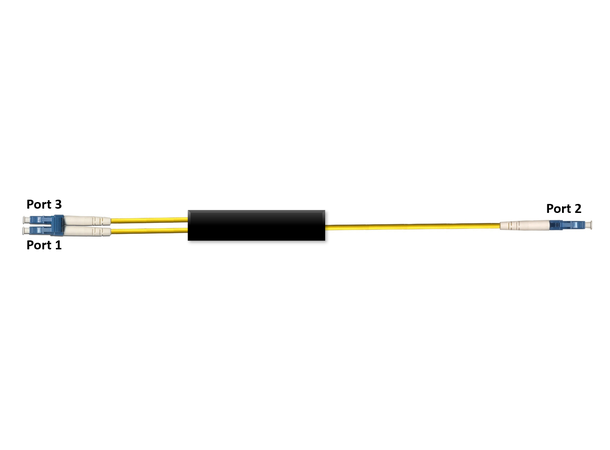

Circulator wideband 1450-1650 nm, 2 m

Patchcord style, LC/UPC connectors

Varenr: F-CIRC-HB-IY-LU-LU-2
Beskrivelse
Beskrivelse
FEATURES

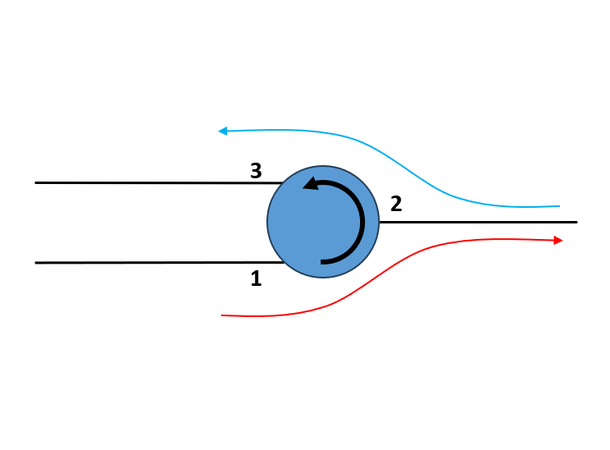

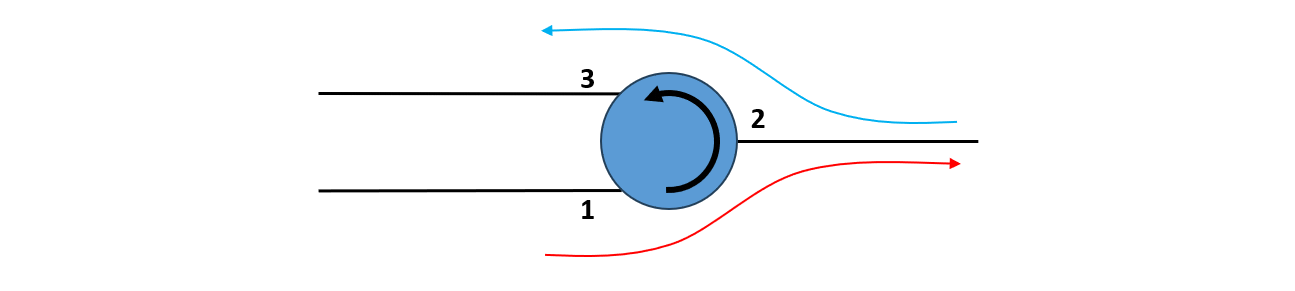

  • 3-port wideband optical circulator
  • 1450 - 1650 nm

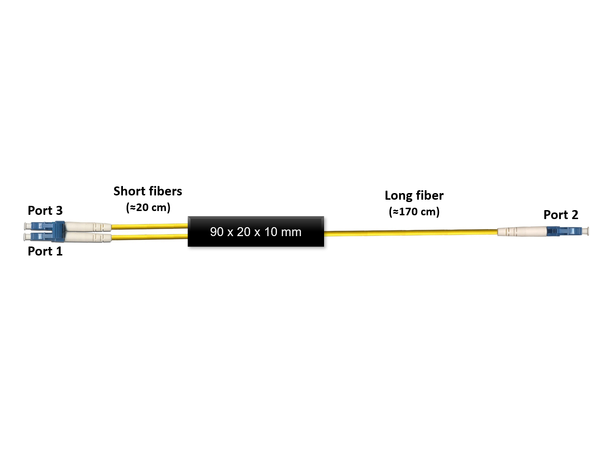

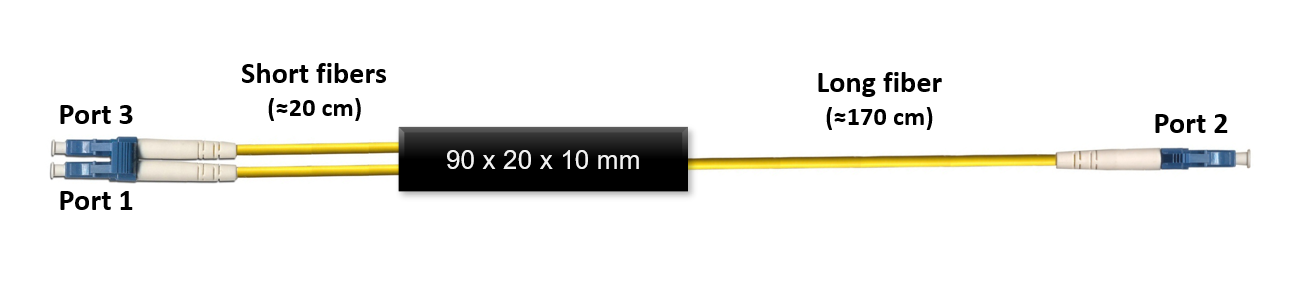

  • ABS box 90x20x10 mm
  • 2 mm patchcord style, 2 meter total length
  • LC/UPC connectors
  • Low insertion loss (< 1.3 dB)
  • Isolation 25-50 dB
  • Based on thin film optics with epoxy free optical path
  • Protocol transparent (support 1G, 10G etc.)
