Fiberworks 4 ch multimode CWDM Mux+Demux C51-C57, 62.5 µm Fiberworks 4 ch multimode CWDM Mux+Demux C51-C57, 62.5 µm Fiberworks 4 ch multimode CWDM Mux+Demux C51-C57, 62.5 µm Fiberworks 4 ch multimode CWDM Mux+Demux C51-C57, 62.5 µm

Fiberworks 4 ch multimode CWDM Mux+Demux

C51-C57, 62.5 µm

Varenr: F-CMUX-4-MM6-5157-LP
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse
FEATURES
- For 62.5 µm multimode fiber (OM1)
- Coarse WDM in compliance with ITU-T G.694.2

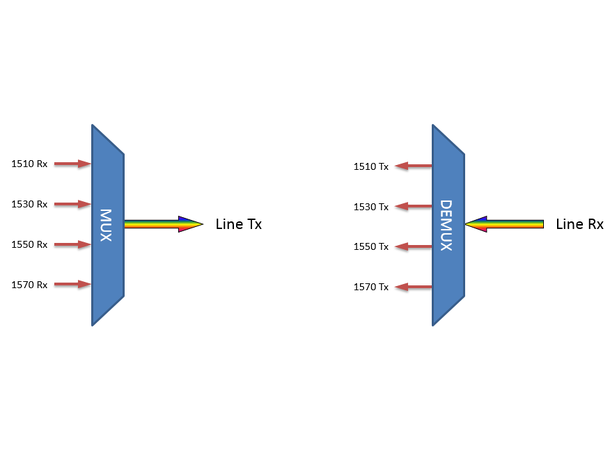

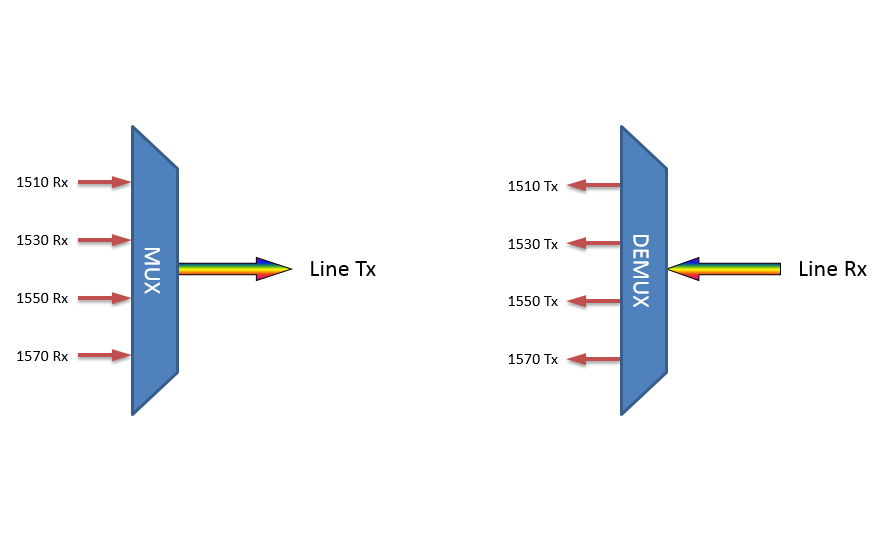

- CWDM channels 1510nm, 1530nm, 1550nm, 1570nm
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
- LC/PC connectors

Teknisk info

Produktinformasjon

Formfaktor Fiberworks
Fibertype Multimodus OM1
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 4
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Konnektor LC/PC
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090


Tilbehør
