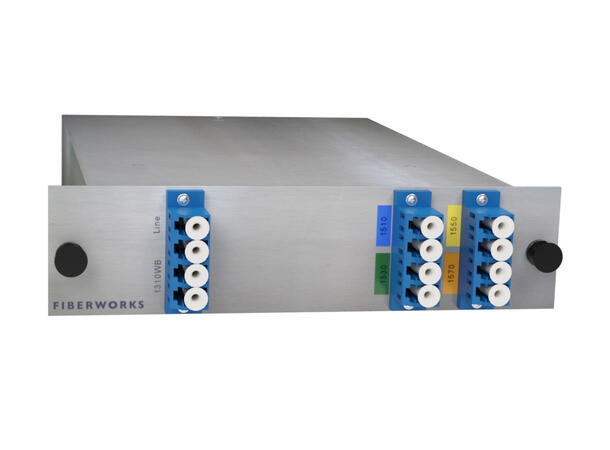

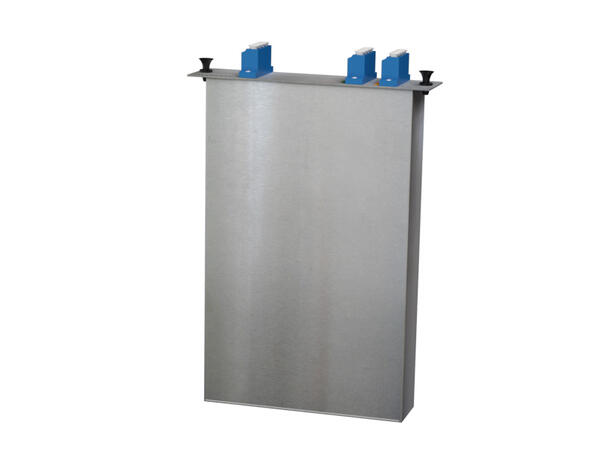

Fiberworks 4+1 ch. CWDM Mux+Demux, LGX2 C51-C57 + 1310nm/CWDM upgrade Fiberworks 4+1 ch. CWDM Mux+Demux, LGX2 C51-C57 + 1310nm/CWDM upgrade Fiberworks 4+1 ch. CWDM Mux+Demux, LGX2 C51-C57 + 1310nm/CWDM upgrade Fiberworks 4+1 ch. CWDM Mux+Demux, LGX2 C51-C57 + 1310nm/CWDM upgrade

Fiberworks 4+1 ch. CWDM Mux+Demux, LGX2

C51-C57 + 1310nm/CWDM upgrade

Varenr: F-CMUX-4+1-5157-LGX2
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

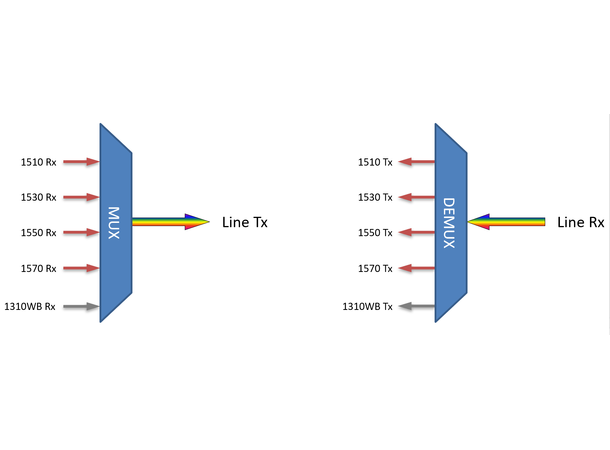

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- CWDM channels 1510nm, 1530nm, 1550nm, 1570nm
- With 1310nm wideband port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

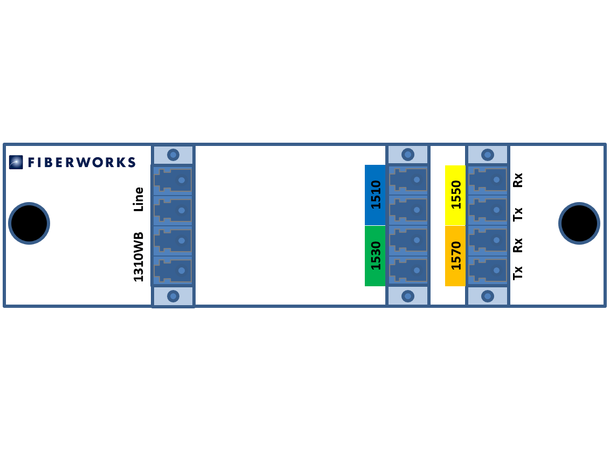

- LGX2 form factor - Three modules fit in 1U in 19" chassis or 12 modules in 3U chassis
- LC/UPC connectors


Teknisk info

Produktinformasjon

Formfaktor LGX2
Fibertype SM
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 4
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
Andre egenskaper Utvidelsesport 1310 nm
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
