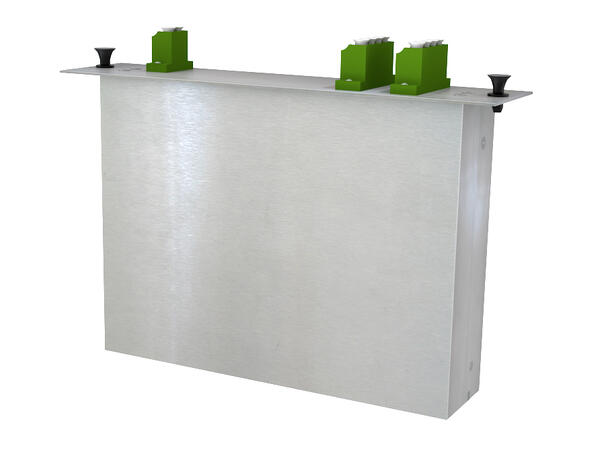

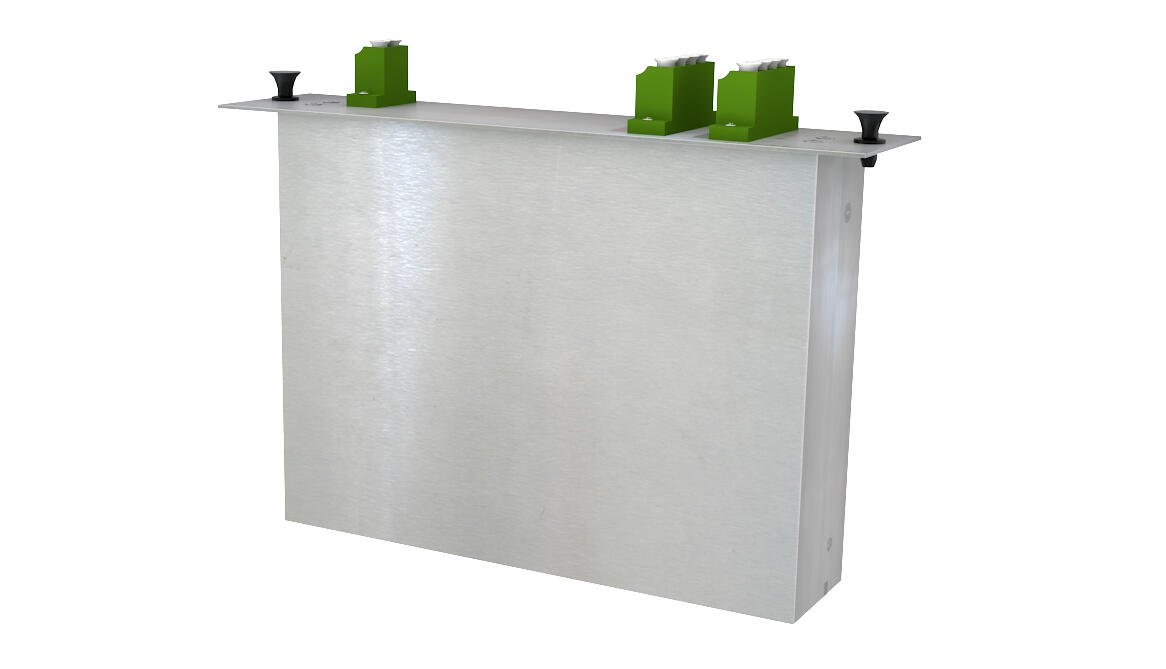

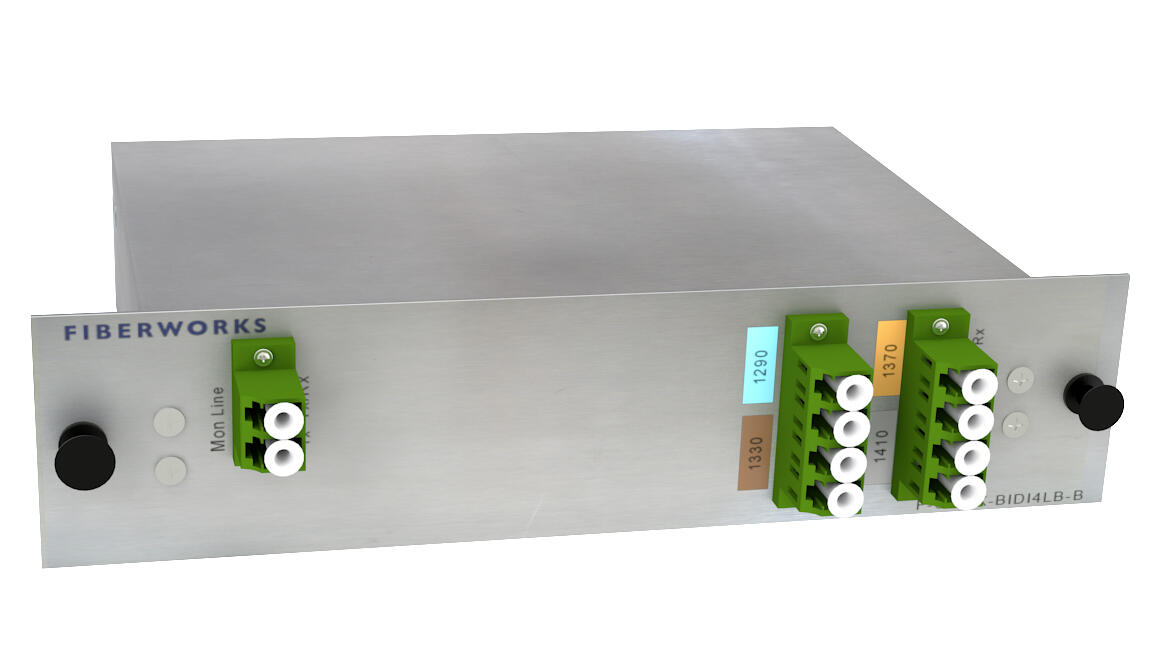

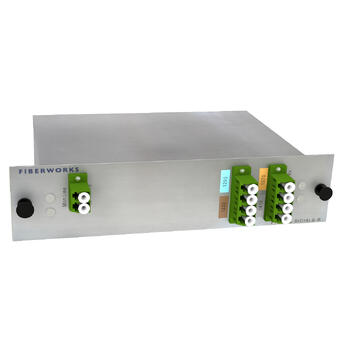

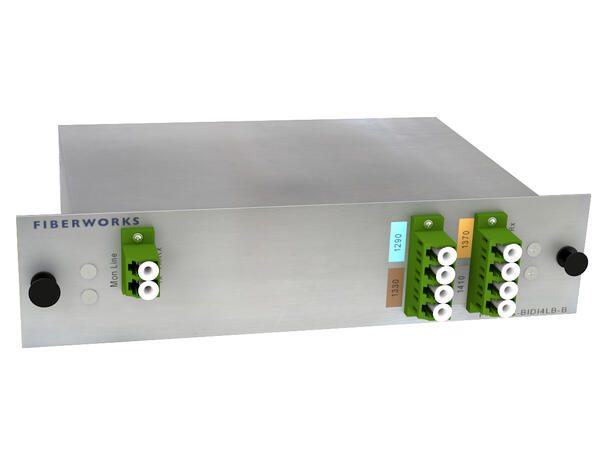

F-CMUX-BIDI4LB-B-MLA Fiberworks AS Fiberworks 4ch. CWDM BiDi CATV Mux/Demux Low Band, Mon. port, LC/APC, B-side

Fiberworks 4ch. CWDM BiDi CATV Mux/Demux Low Band, Mon. port, LC/APC, B-side

Fiberworks 4ch. CWDM BiDi CATV Mux/Demux

Low Band, Mon. port, LC/APC, B-side

Varenr: F-CMUX-BIDI4LB-B-MLA

Beskrivelse

FEATURES
•  Coarse WDM in compliance with ITU-T G.694.2

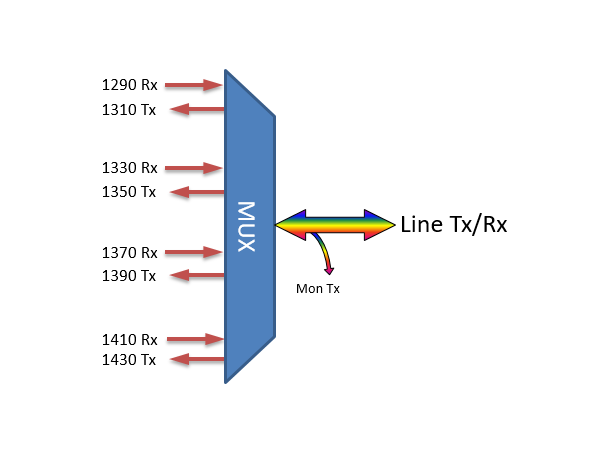

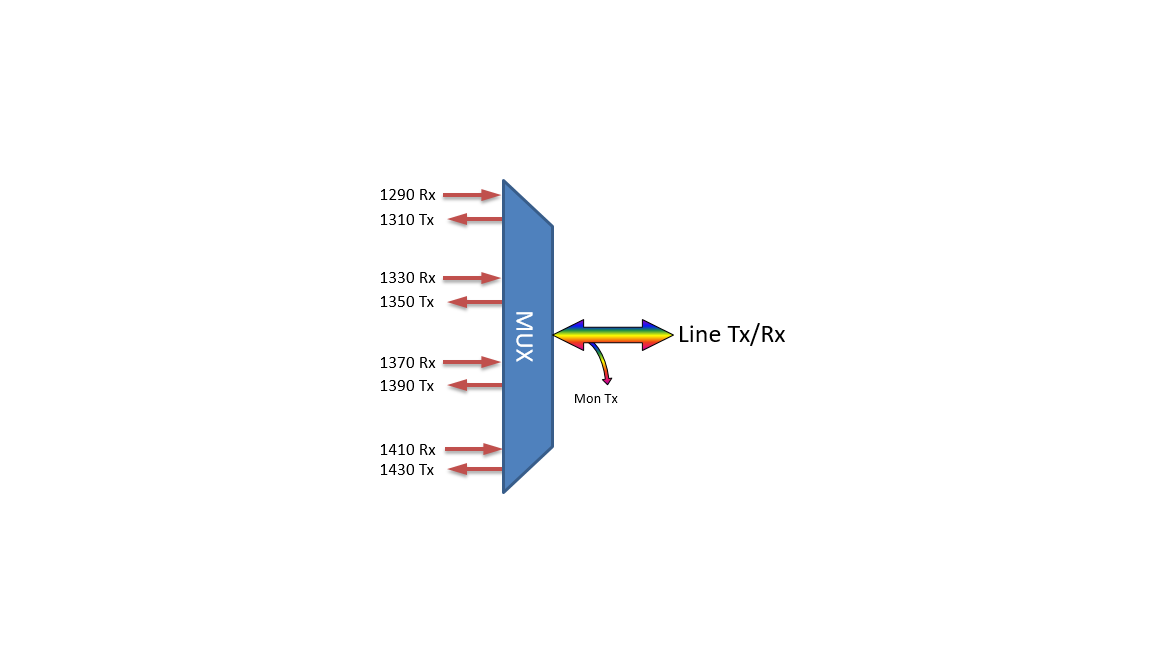

•  4 bi-directional channels using standard 8-channel CWDM low band 1290 – 1430 nm, 20 nm spacing
•  2% monitoring port for Tx.
•  Based on thin film optics with epoxy free optical path
•  Protocol transparent (support 1G, 10G etc.)
•  Two modules fit in 1U in 19" rack
•  LC/APC connectors

Teknisk info

Produktinformasjon

Formfaktor	Fiberworks
Fibertype	SM
Linjefiber	Enkel (bidi, mux/demux)
Antall kanaler	4
Add/drop-muligheter	Nei, kun mux/demux
Konnektortype	Vinklet (APC)
Konnektor	LC/APC
Andre egenskaper	Monitorport
Produktklassifisering/tollkoder	ECCN: EAR99 HS: 8517.62.0090
