12-core MTP/MPO mounted fan-out

MPO12(f) to LC/UPC connectors. SM 9/125

Varenr: F-MPO12-1-SM-MPA-LCU
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse

Denne modulen har MPO-konnektor uten styrepinner (female), den trenger derfor kabler med styrepinner (male).


DESCRIPTION

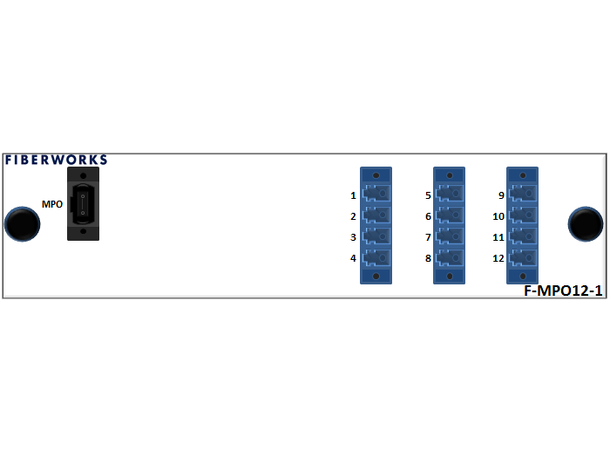

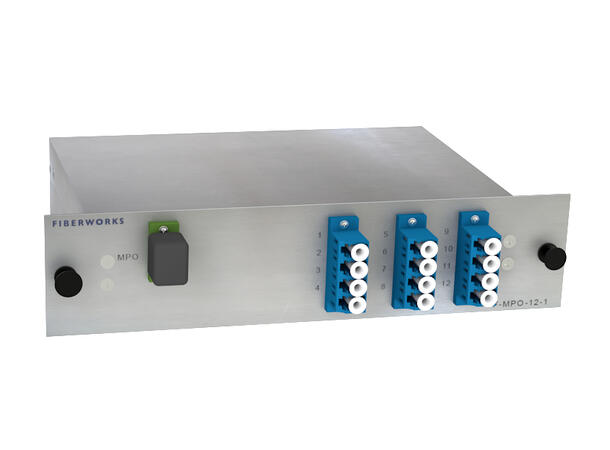

The Fiberworks 12-core MTP/MPO fan-out is a multi-fiber patch cord mounted in a standard Fiberworks module. One end is terminated in a MPO/APC female connector and the other in 12 LC/UPC connectors.

Two of these modules fit in a 1U 19" chassis . The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.

FEATURES
- High density / compact size
- MPO/APC female to LC/UPC connectors
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
Teknisk info

Produktinformasjon

Konnektortype MPO Base-12 (MPO12)
