MPO mounted fanout for 2x QSFP PSM4

MPO8(f) to LC/UPC connectors. SM 9/125.

Varenr: F-MPO16-2-SM-M1F-LCU
BeskrivelseTeknisk infoTilbehør
Beskrivelse

Denne modulen har MPO-konnektor uten styrepinner (female), den trenger derfor kabler med styrepinner (male).


DESCRIPTION

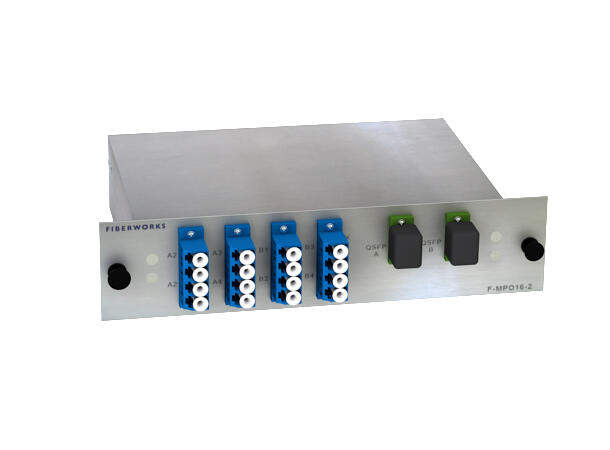

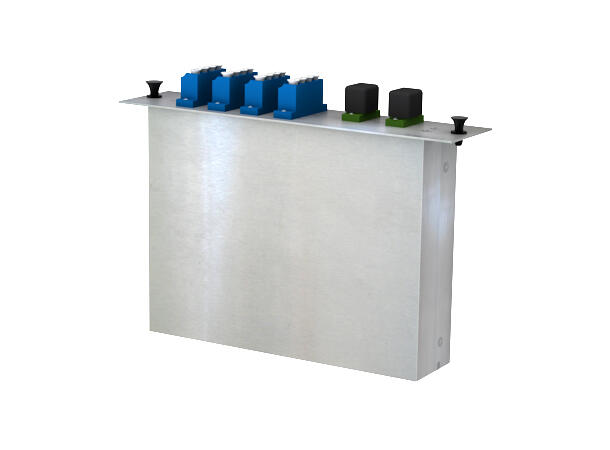

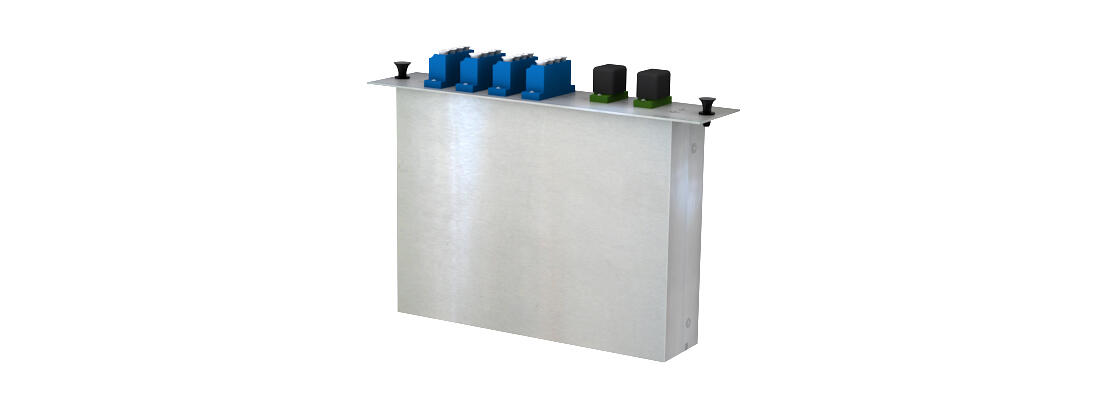

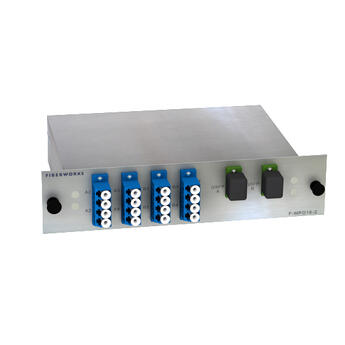

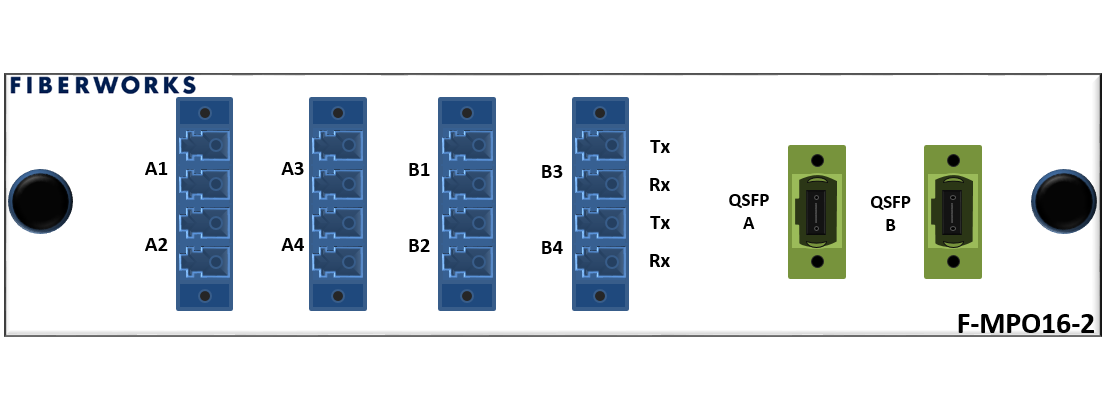

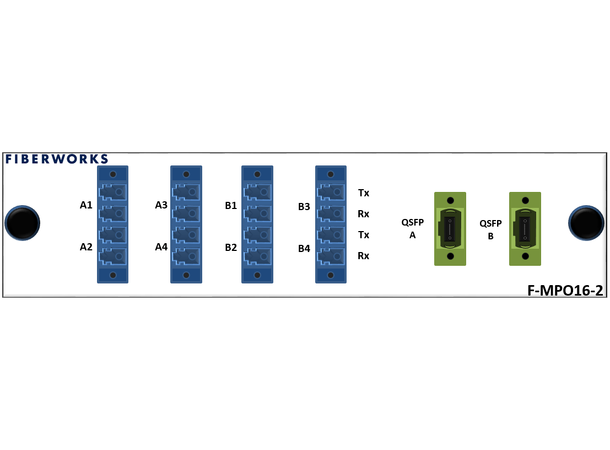

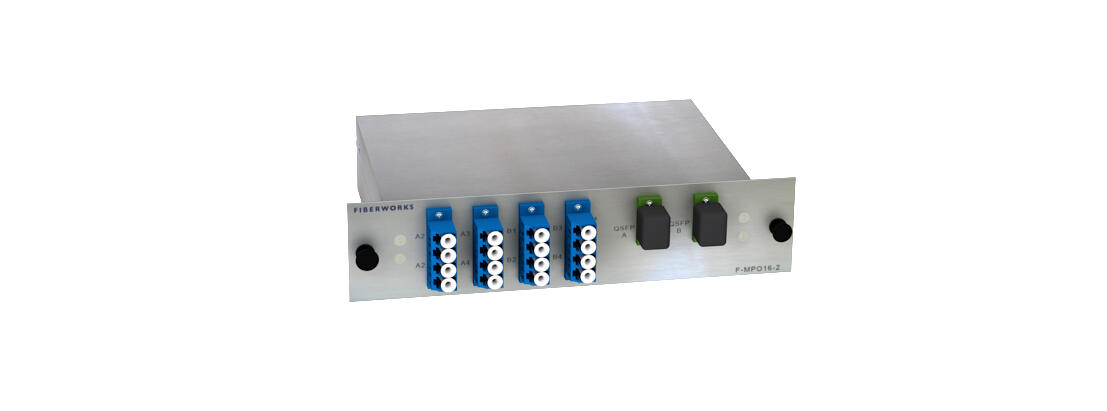

This Fiberworks MTP/MPO fan-out is a multi-fiber patch cord mounted in a standard Fiberworks module. Two MPO connectors are connected to 16 LC/UPC connectors (i.e. 8 fibers per MPO connector). The layout is made for separating the four individual channels of singlemode QSFP PSM4 transceivers:
  • 40G QSFP+ PSM4 to 4x 10GBASE-LR
  • 100G QSFP28 PSM4 to 4x 25GBASE-LR

Two of these modules fit in a 1U 19" chassis. The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.

FEATURES
- High density / compact size
- All connectors on the front
- Two 8-core MPO/APC female connectors (compatible with 12-fiber MPO cables)

- 24 LC/UPC connectors on front side
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
Teknisk info

Produktinformasjon

Bruksområde Oppsplitting av QSFP PSM4
Konnektortype MPO Base-8 (MPO8)
