24-port MPO mounted fan-out, rear access

2x MPO12(f) to 12x LC/PC, 50/125µm OM4.

Varenr: F-MPO24-2-OM4-MP-LC
BeskrivelseTeknisk infoTilbehør
Beskrivelse

Denne modulen har MPO-konnektor uten styrepinner (female), den trenger derfor kabler med styrepinner (male).


DESCRIPTION

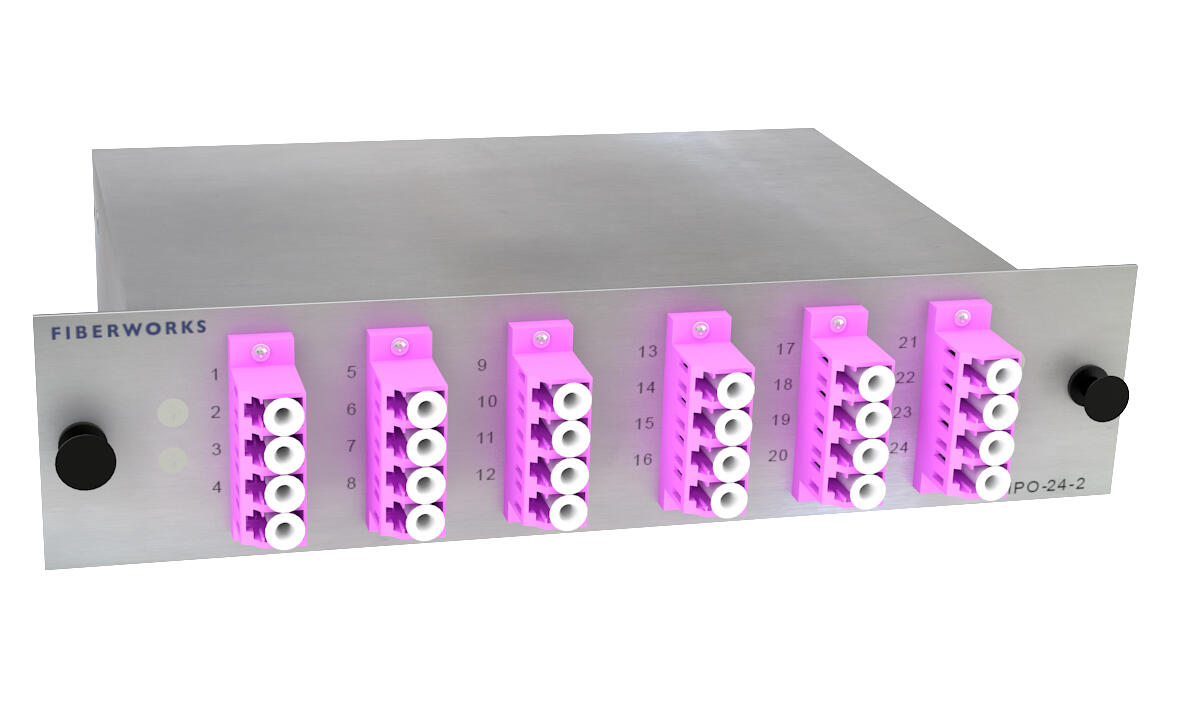

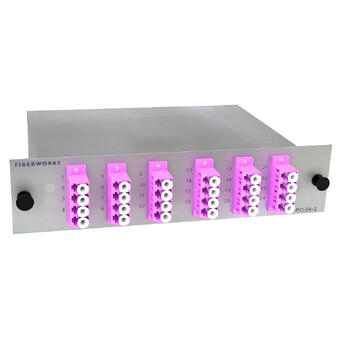

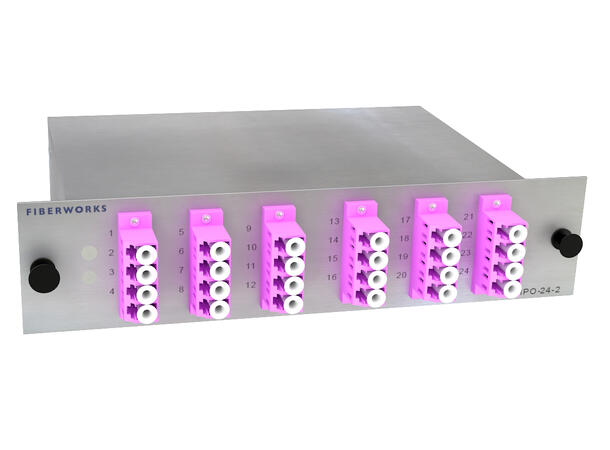

The Fiberworks 24-core MTP/MPO fan-out is a multi-fiber patch cord mounted in a standard Fiberworks module. One end is terminated in two MPO female connectors on the rear of the module and the other in 24 LC/PC connectors on the front.

Two of these modules fit in a 1U 19" chassis . The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.

FEATURES
- High density / compact size

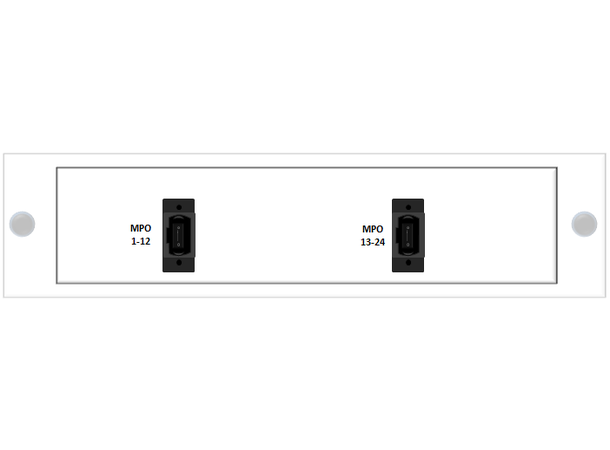

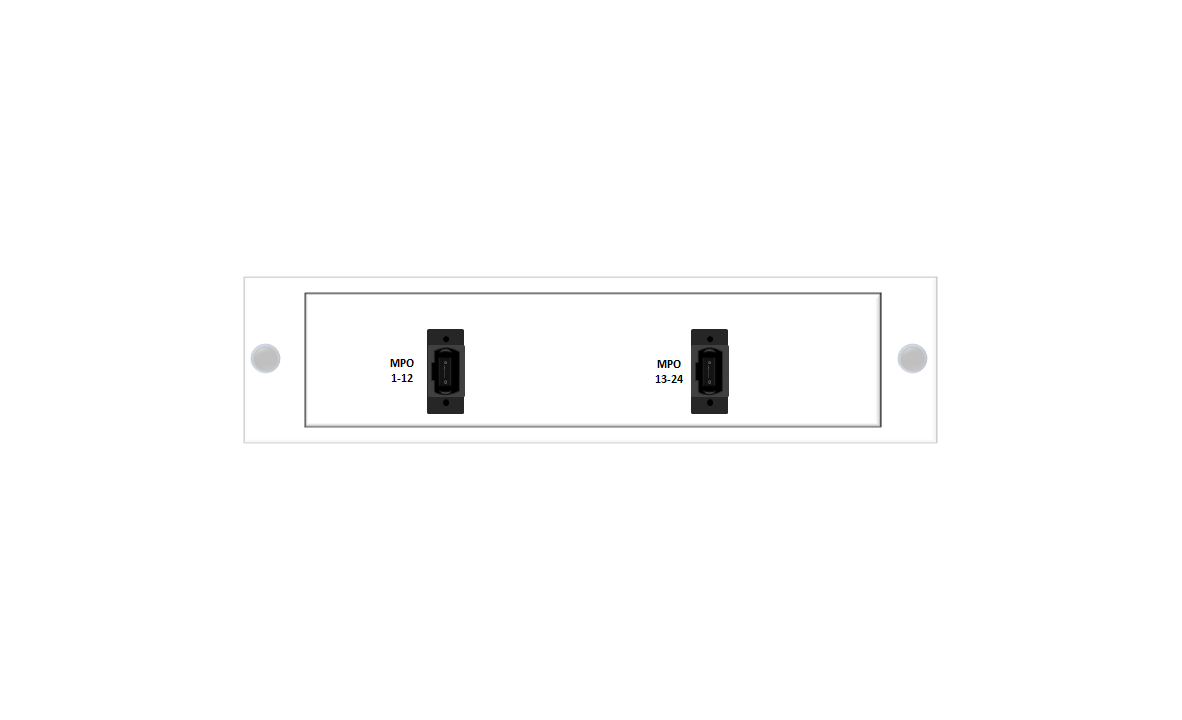

- MPO female connectors on rear side
- LC/PC connectors on front side
- 50/125 µm OM4 compatible
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
Teknisk info

Produktinformasjon

Konnektortype MPO Base-12 (MPO12)
