24-fiber MPO mounted fanout, rear access

MPO12(f) to LC/UPC connectors. SM 9/125.

Varenr: F-MPO24-2-SM-MPA-LCU
BeskrivelseTeknisk infoTilbehør
Beskrivelse

Denne modulen har MPO-konnektor uten styrepinner (female), den trenger derfor kabler med styrepinner (male).


DESCRIPTION

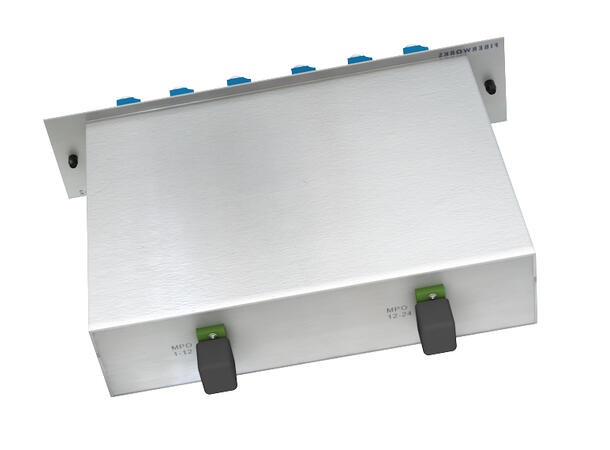

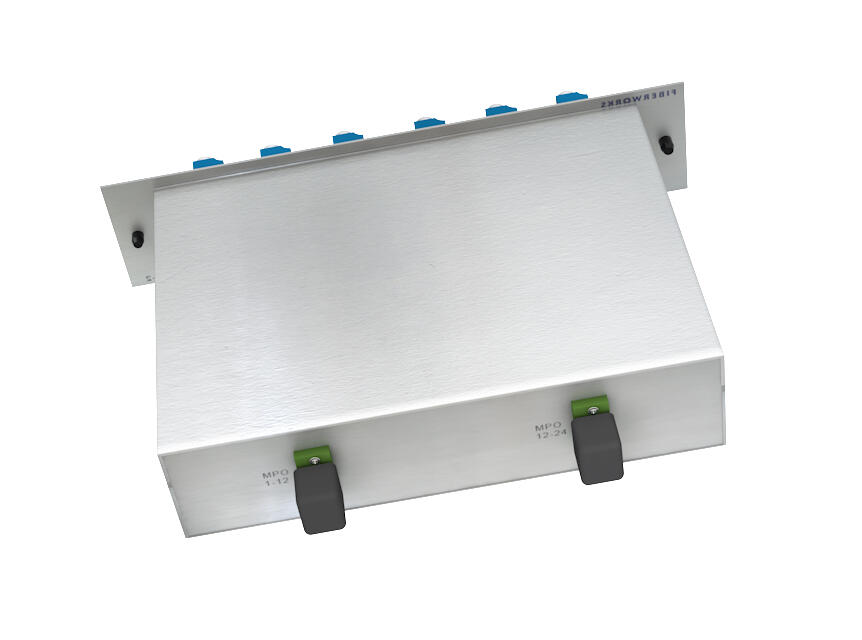

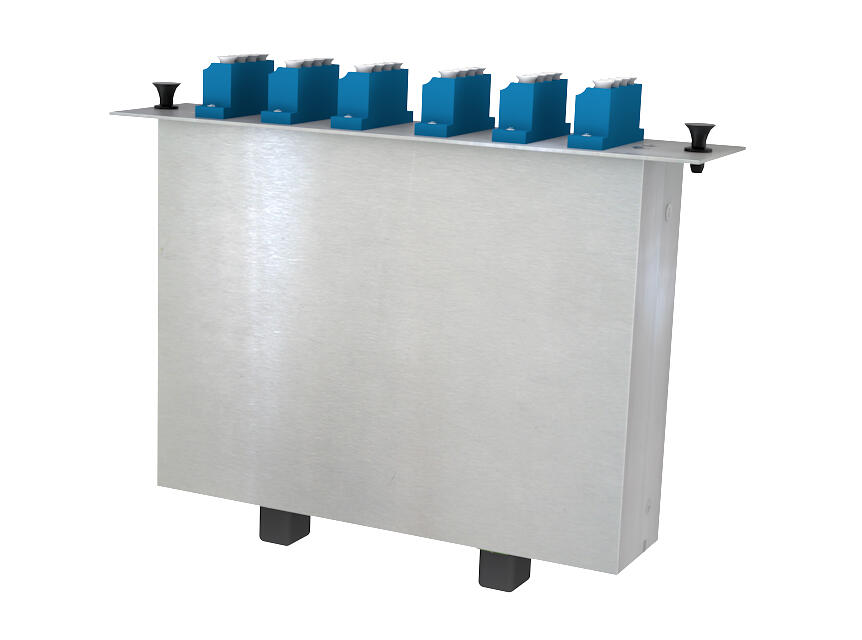

The Fiberworks 24-fiber MTP/MPO fan-out is a multi-fiber patch cord mounted in a standard Fiberworks module. One end is terminated in two 12-core MPO/APC female connectors on the rear of the module and the other in 24 LC/UPC connectors on the front.

Two of these modules fit in a 1U 19" chassis . The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.

FEATURES
- High density / compact size

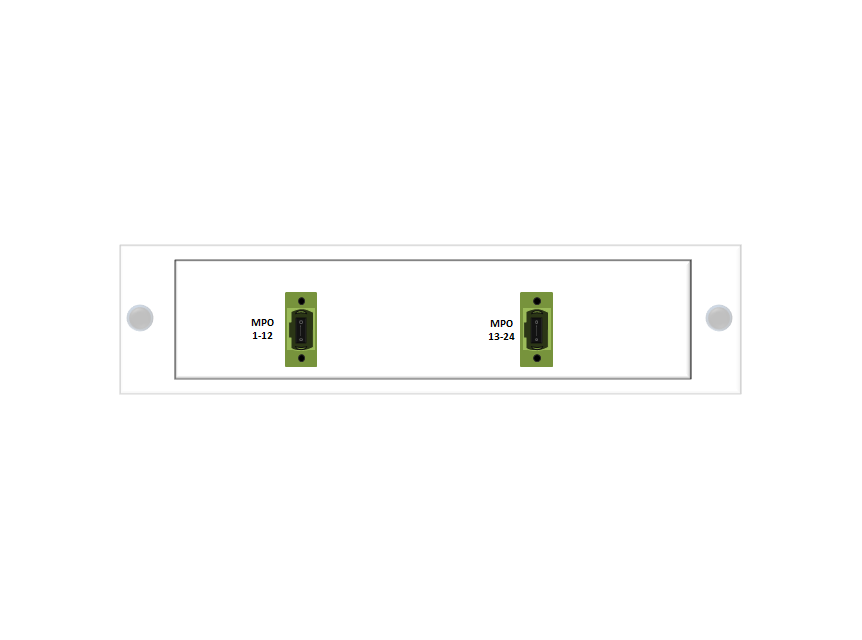

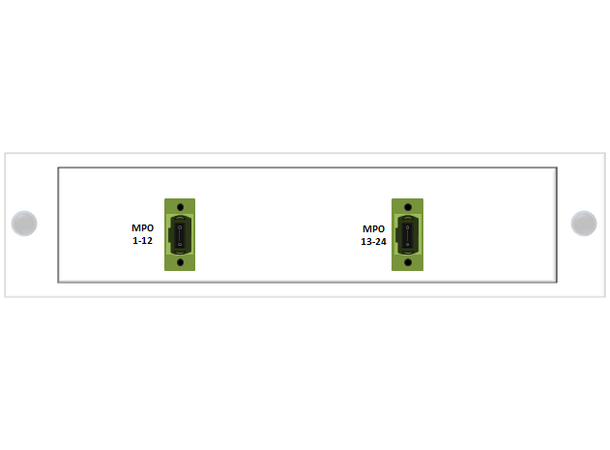

- Two 12-core MPO/APC female connectors on rear side

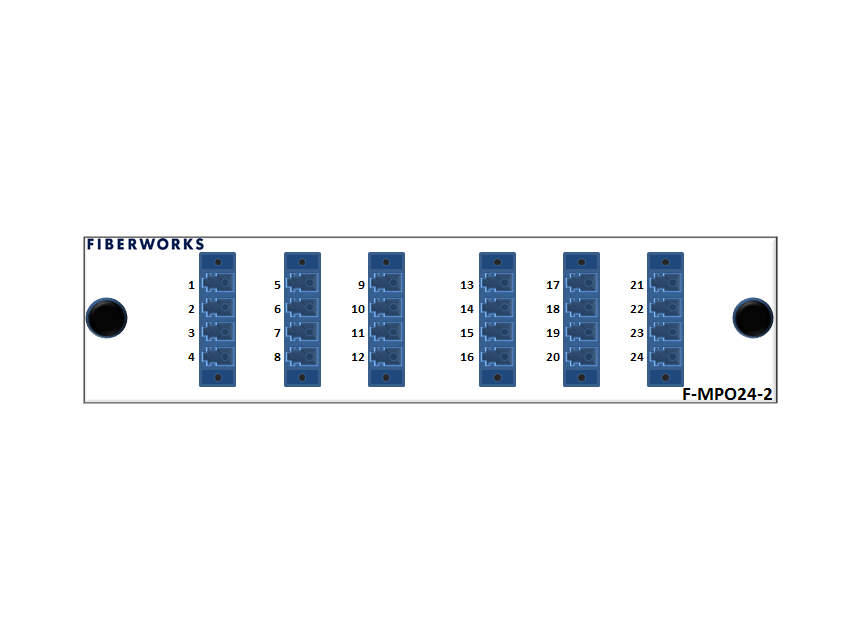

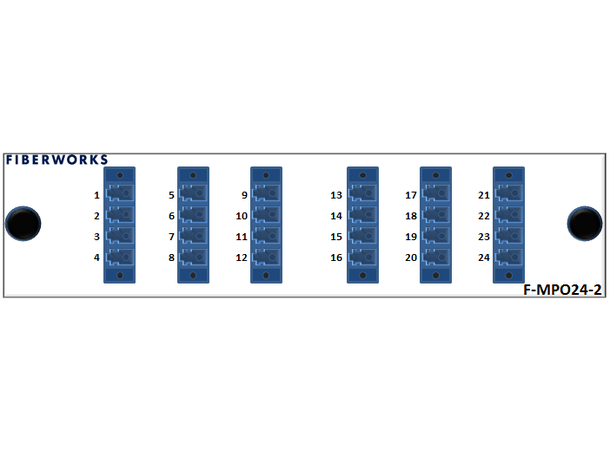

- LC/UPC connectors on front side
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack
Teknisk info

Produktinformasjon

Konnektortype MPO Base-12 (MPO12)
