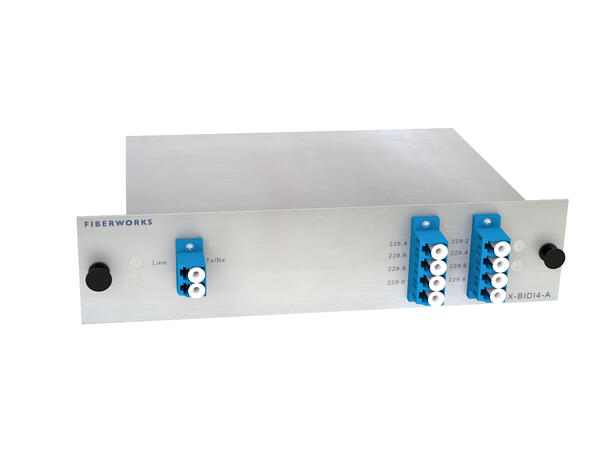

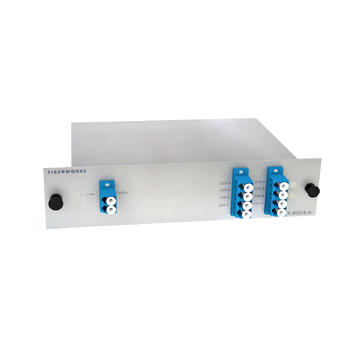

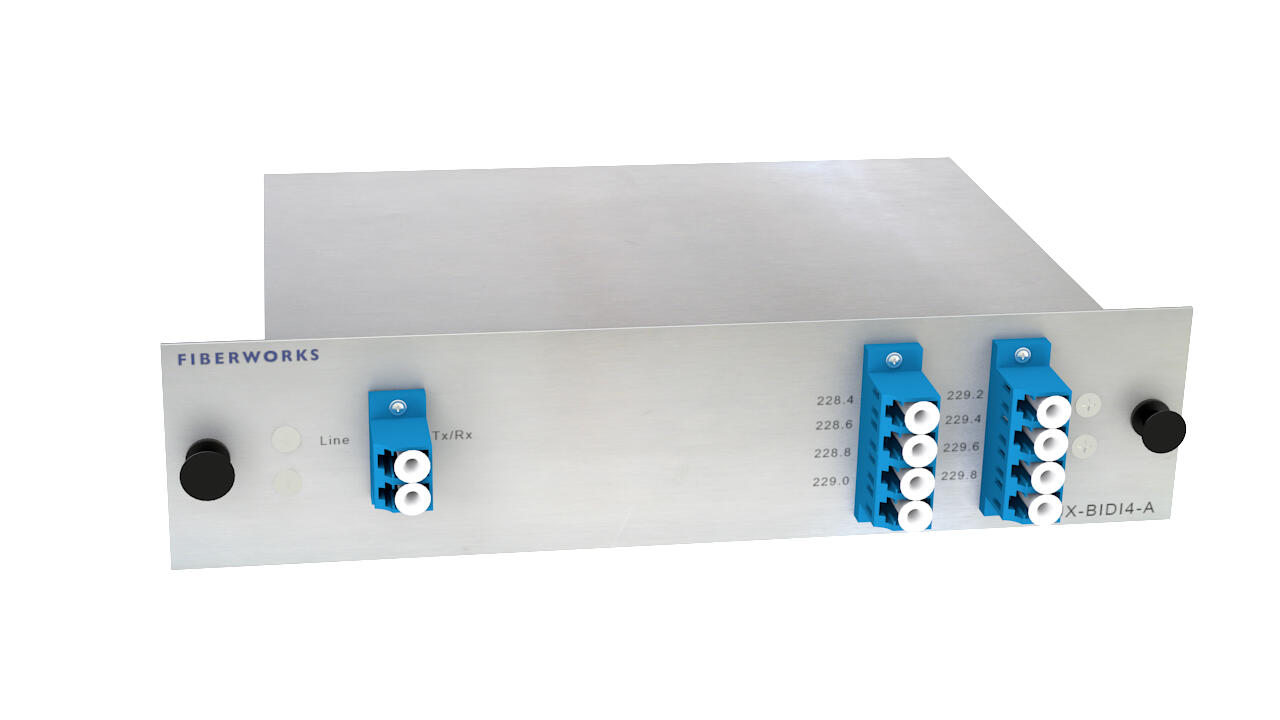

Fiberworks 4 ch. BiDi DWDM mux/demux O-band low, Single Fiber, LC/UPC, A-side

Fiberworks 4 ch. BiDi DWDM mux/demux

O-band low, Single Fiber, LC/UPC, A-side

Varenr: F-OMUX-BIDI4LB-A

Beskrivelse

Dette er en DWDM mux/demux for 4 bidireksjonelle kanaler i O-båndet. Den er spesielt tilpasset bruk sammen med 100G QSFP28 DWDM-transceivere.

FEATURES
- Dense WDM in the O-band with 200 GHz spacing

- Single fiber operation

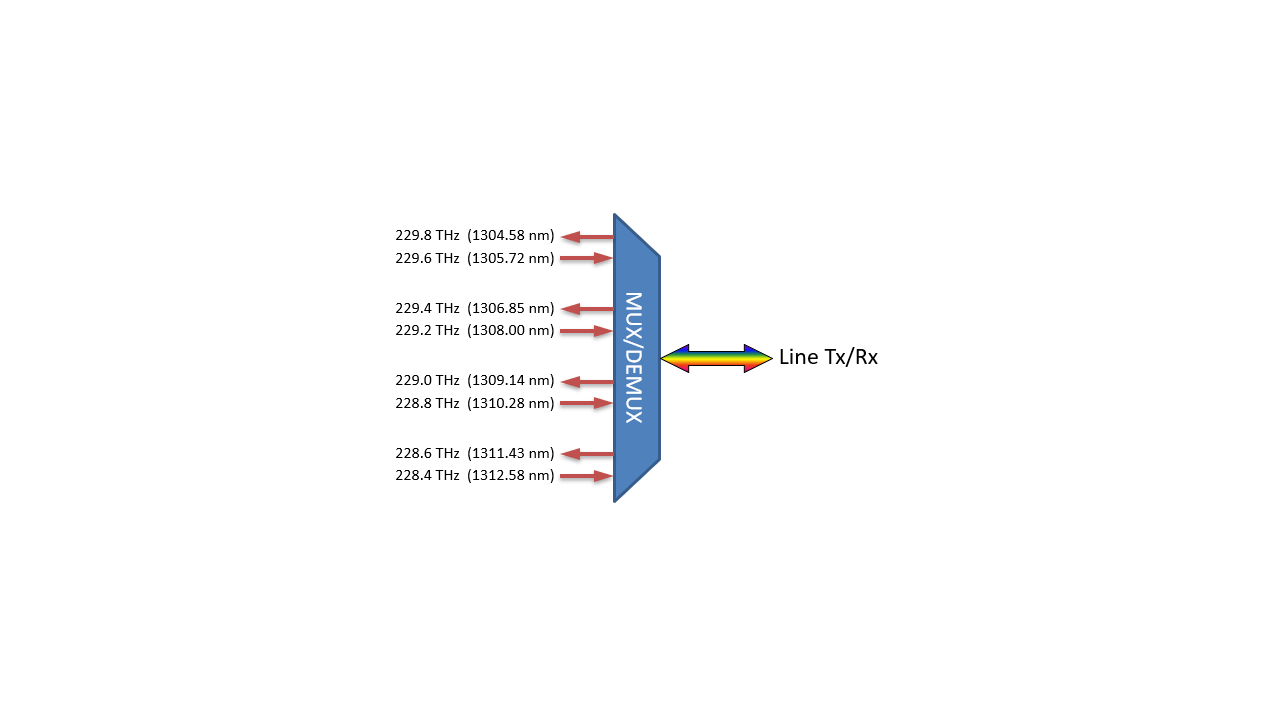

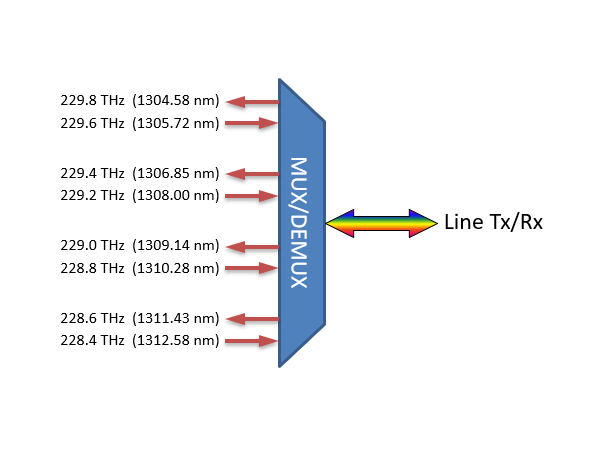

- 8 DWDM wavelengths 228.4 - 229.8 THz (1304.58 - 1312.58 nm) provide for 4 biderectional channels

- All channels fit within a 1311 nm CWDM channel or any 1310 upgrade/extension port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 25G, 100G etc.)

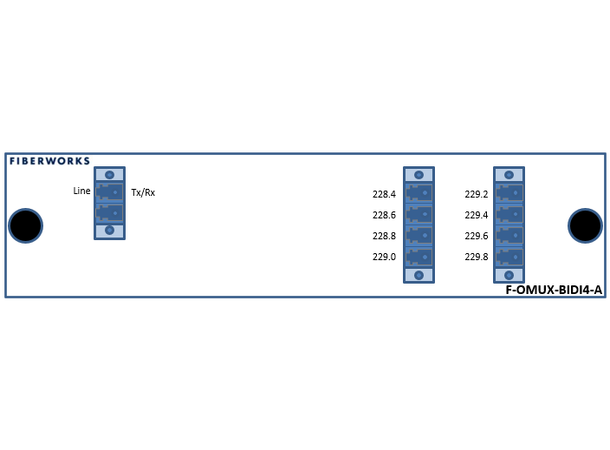

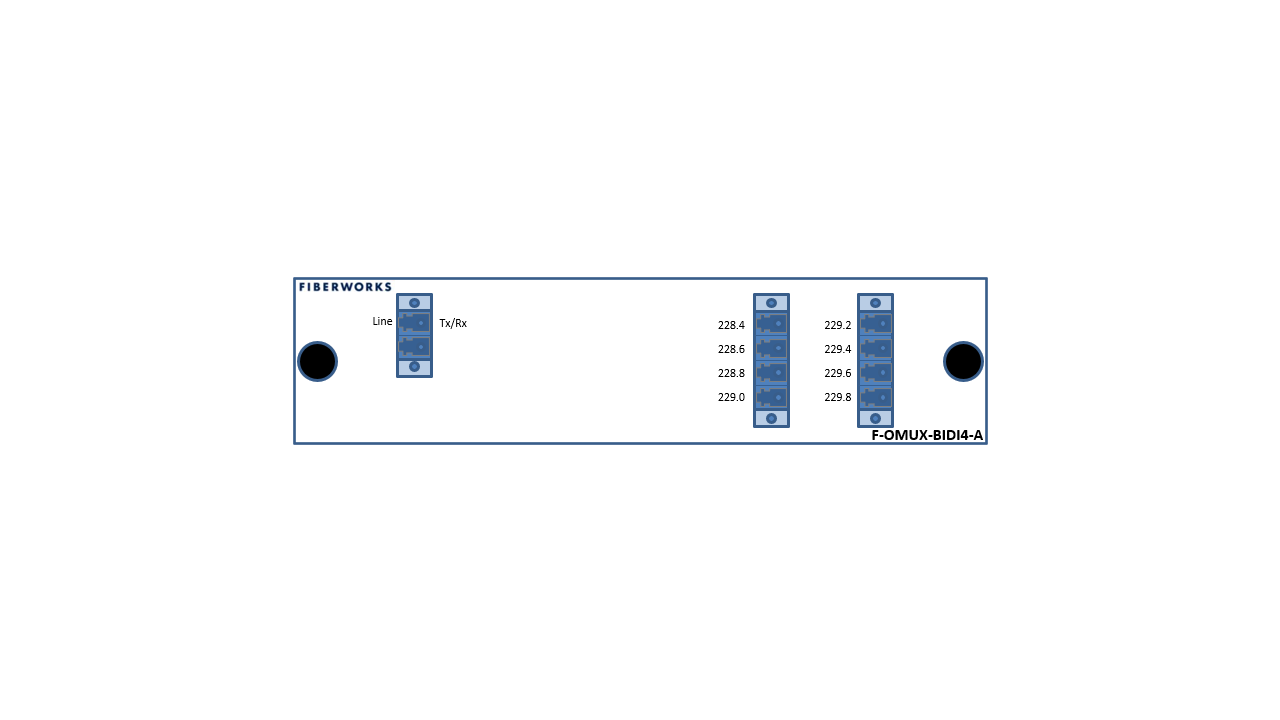

- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor	Fiberworks
Fibertype	SM
Linjefiber	Enkel (bidi, mux/demux)
Antall kanaler	4
Add/drop-muligheter	Nei, kun mux/demux
Konnektortype	Rett (UPC, PC)
Produktklassifisering/tollkoder	ECCN: EAR99 HS: 8517.62.0090
