Fiberworks Network Tap, 3 x 17%, 2 taps SM 9/125, IL 3.6 dB, LC/UPC connectors Fiberworks Network Tap, 3 x 17%, 2 taps SM 9/125, IL 3.6 dB, LC/UPC connectors Fiberworks Network Tap, 3 x 17%, 2 taps SM 9/125, IL 3.6 dB, LC/UPC connectors Fiberworks Network Tap, 3 x 17%, 2 taps SM 9/125, IL 3.6 dB, LC/UPC connectors

Fiberworks Network Tap, 3 x 17%, 2 taps

SM 9/125, IL 3.6 dB, LC/UPC connectors

Varenr: F-TAP-2-3-1750-S9-LU
Datablad / mer produktinformasjon
BeskrivelseTilbehørAlternativer
Beskrivelse
DESCRIPTION

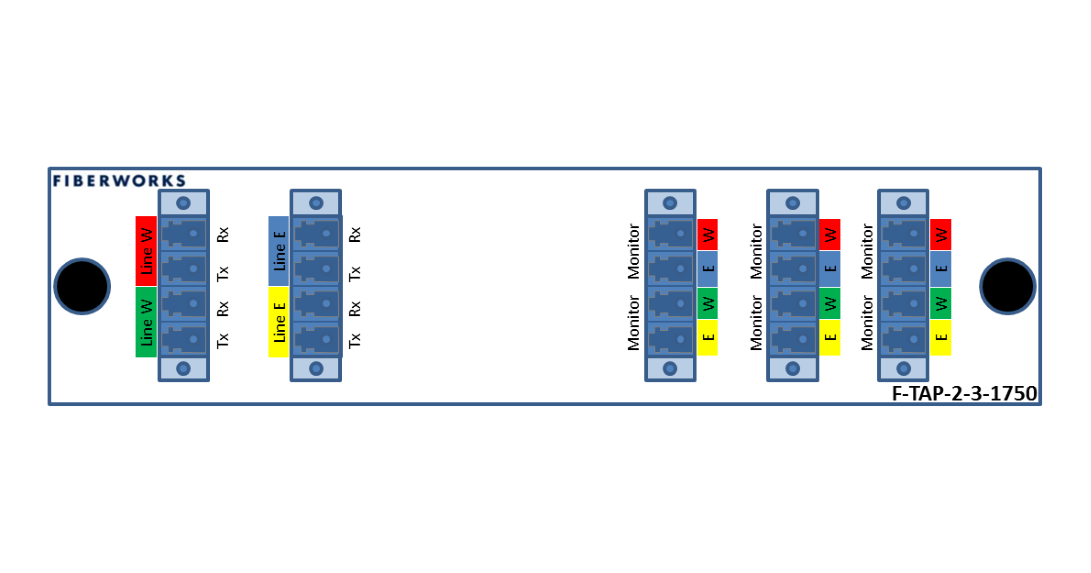

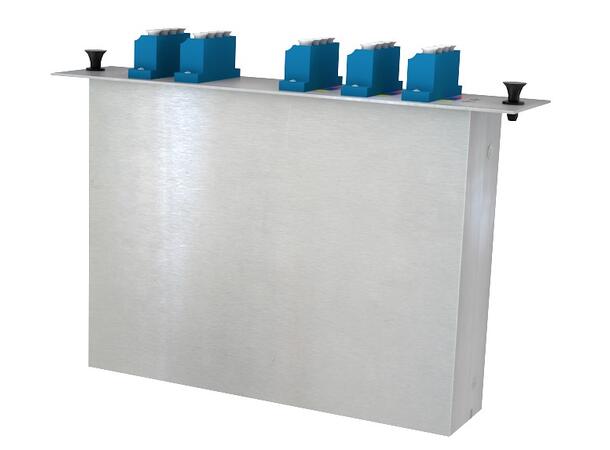

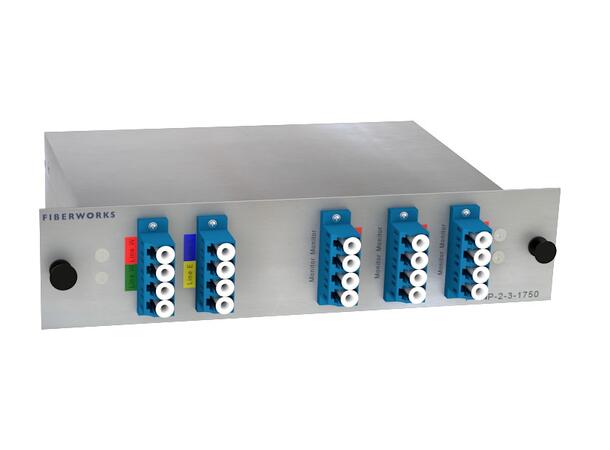

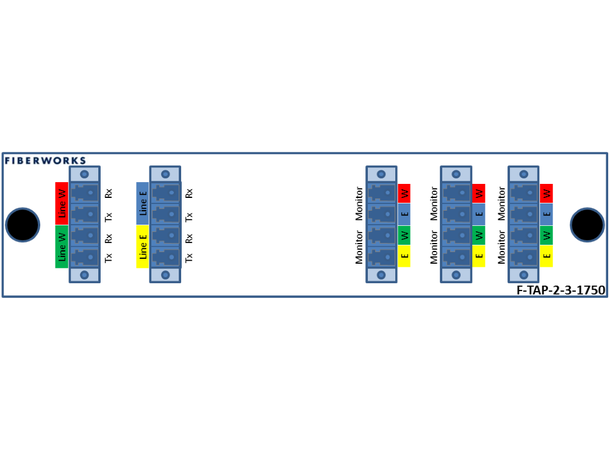

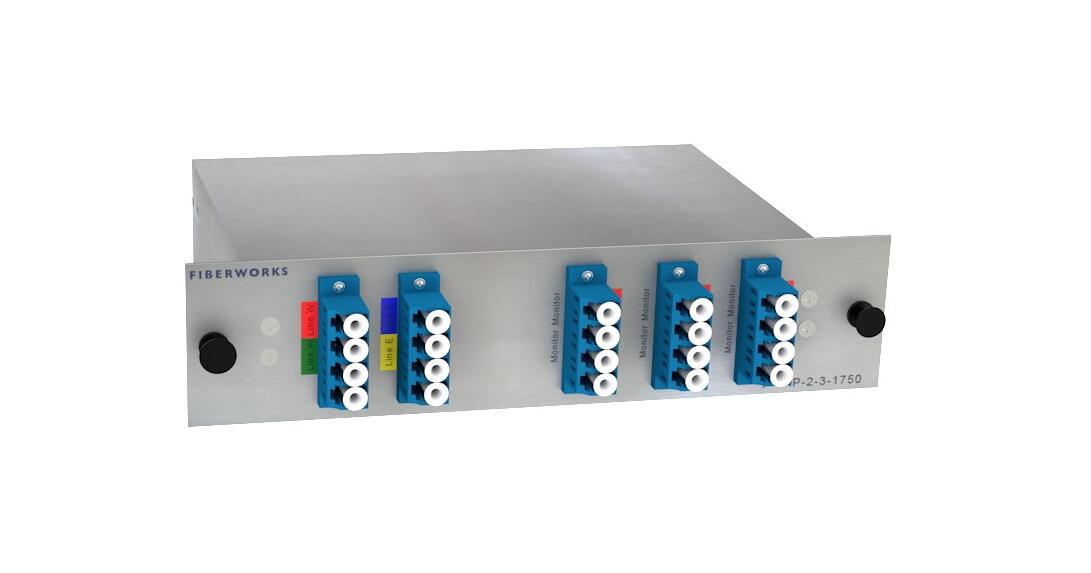

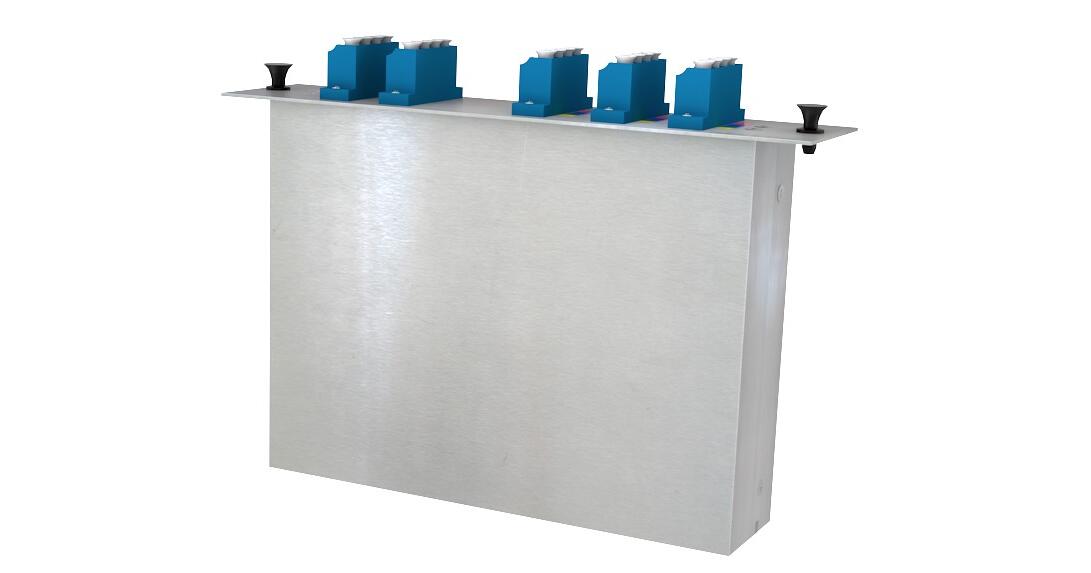

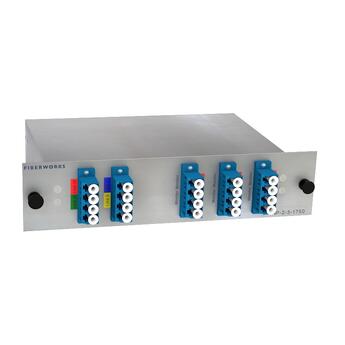

The Fiberworks taps are completely passive network taps mounted in a standard Fiberworks module. They provide three monitor ports, each with a complete replica of the network traffic irrespective of protocol and bitrate.

Each module contains up to two duplex network taps. Two of these modules fit in a 1U 19" chassis. The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.



FEATURES
  • High density / compact size
  • Dual window (1310 / 1550 nm)
  • Two duplex taps in the module
  • Three 17% monitoring port for each tap
  • LC/UPC connectors
  • Protocol transparent (support 1G, 10G etc.)
  • Two modules fit in 1U in a 19" rack
