Fiberworks Network Tap, 30% mon., 4 taps

MM 50/125, IL 2.0dB, LC/PC connectors

Varenr: F-TAP-4-1-3070-M5-LP
Datablad / mer produktinformasjon
BeskrivelseTilbehørAlternativer
Beskrivelse
DESCRIPTION

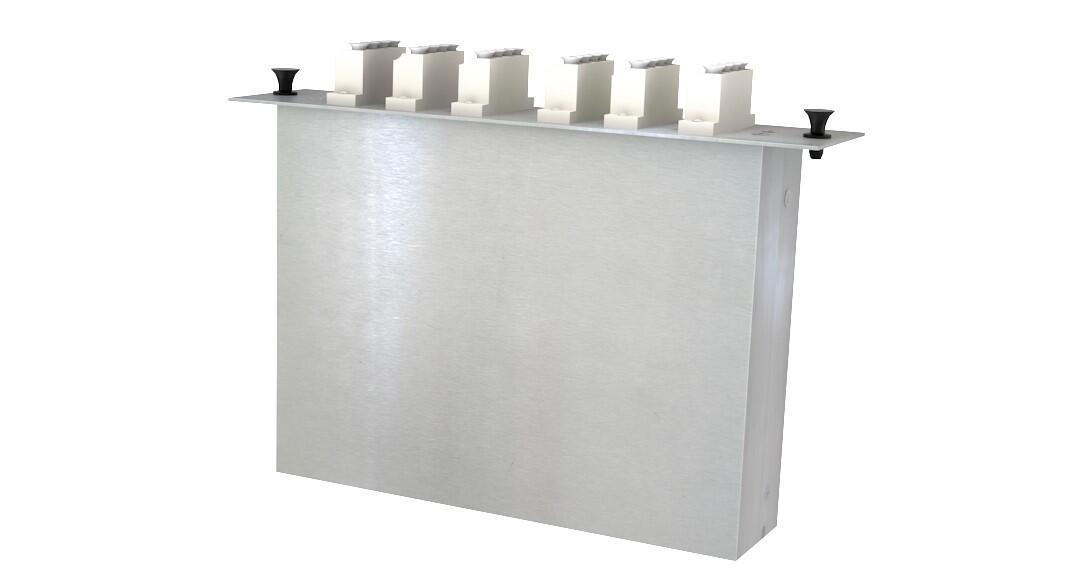

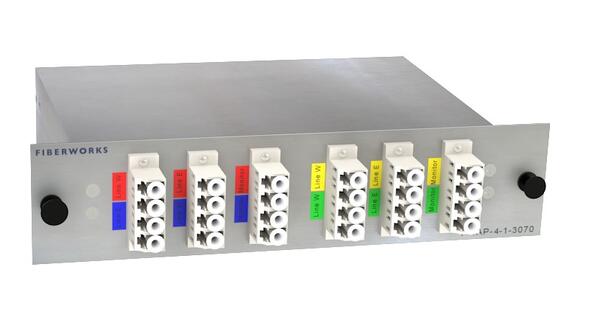

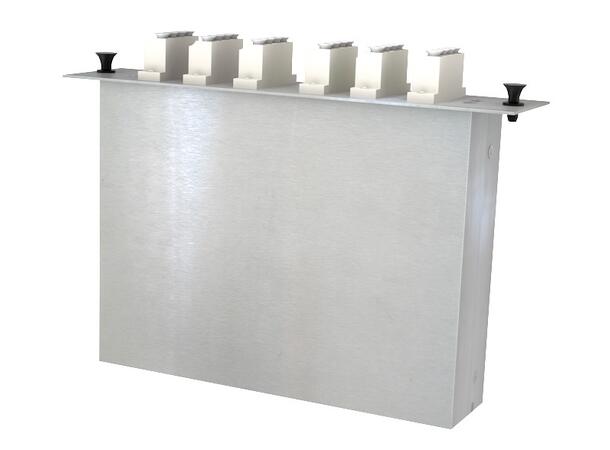

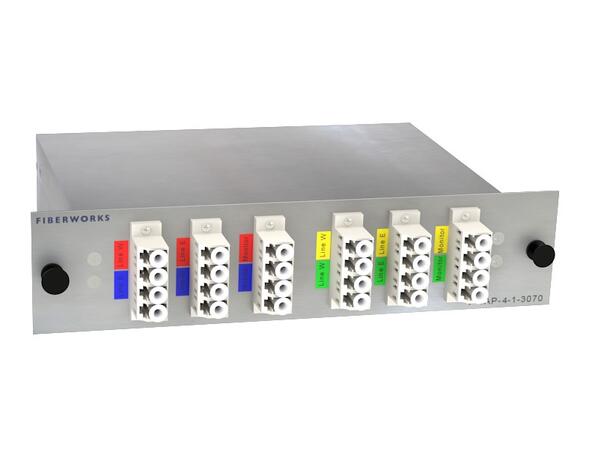

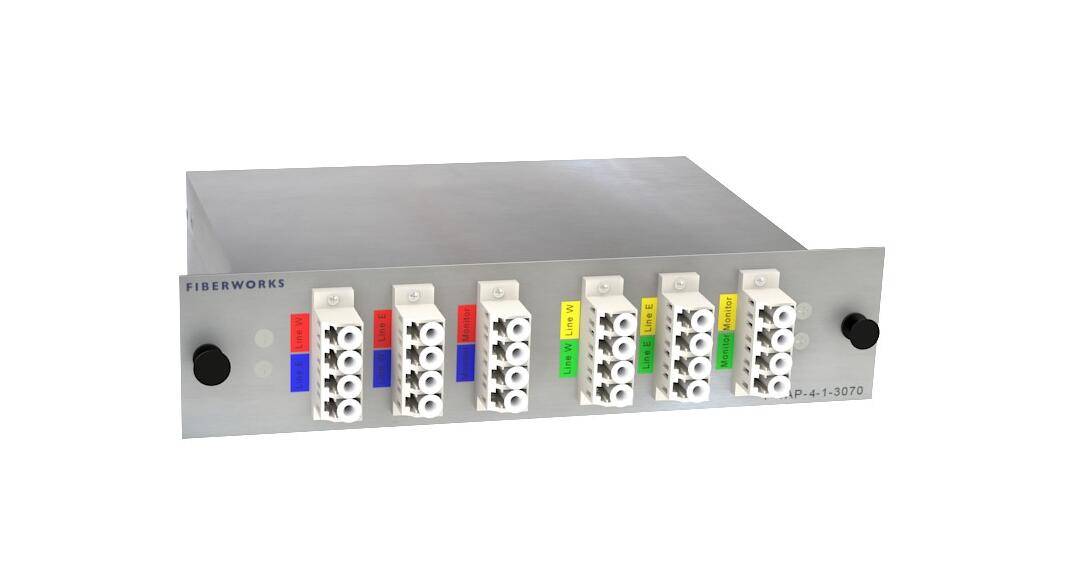

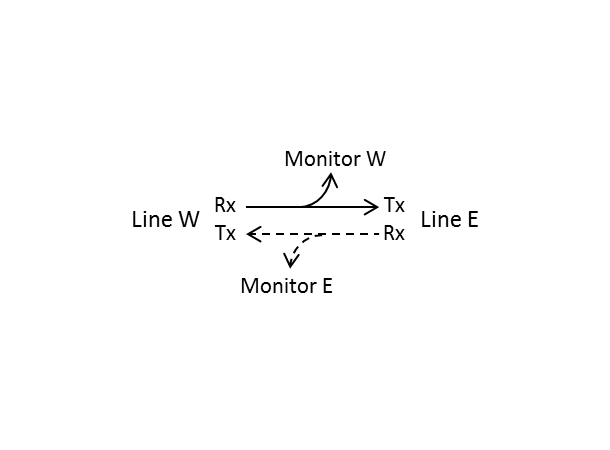

The Fiberworks taps are completely passive network taps mounted in a standard Fiberworks module. They provide a monitor port with a complete replica of the network traffic irrespective of protocol and bitrate.

Each module contains up to four duplex network taps. Two of these modules fit in a 1U 19" chassis. The same chassis can also accommodate the Fiberworks CWDM/DWDM mux modules.


FEATURES
  • Compact size

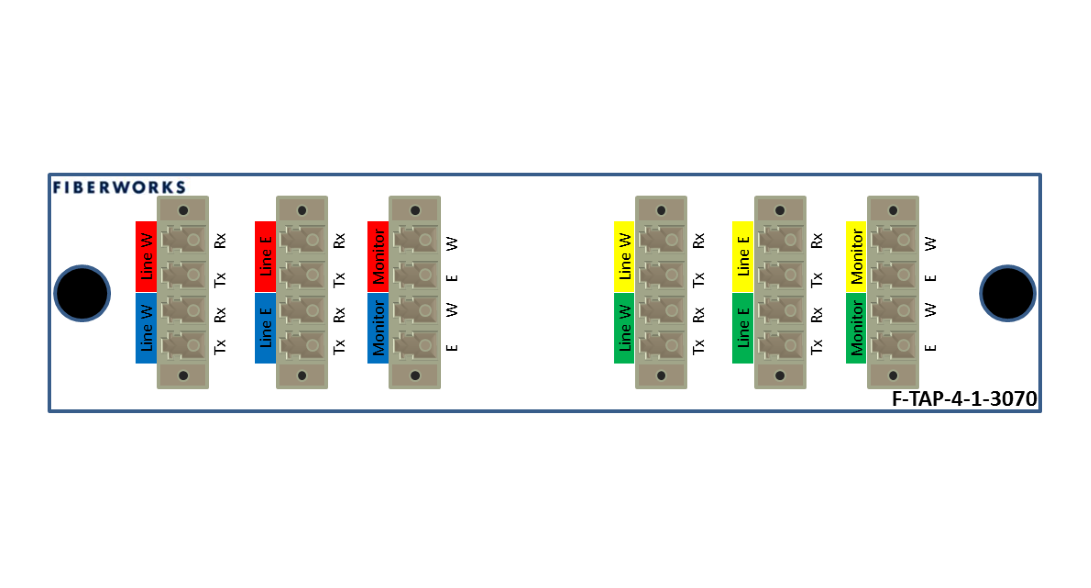

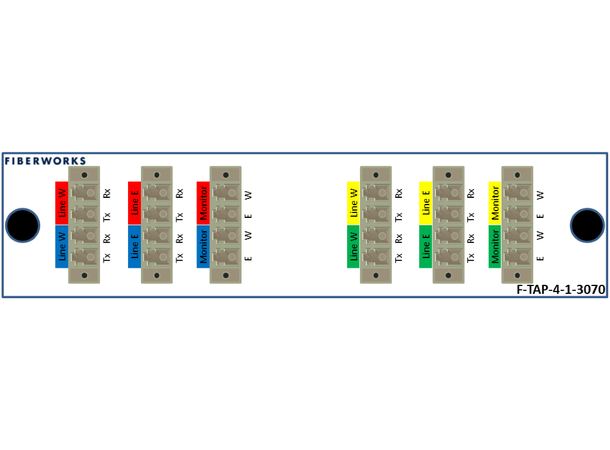

  • 4 duplex taps in module
  • Dual window (850 / 1310 nm)
  • 30% monitoring ports
  • LC/PC connectors
  • Protocol transparent (support 1G, 10G etc.)
  • Two modules fit in 1U in a 19" rack
