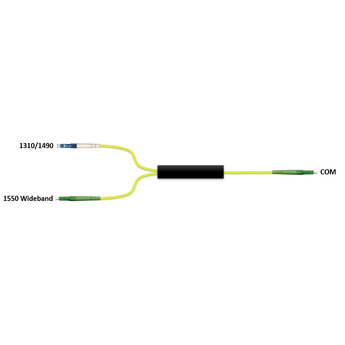

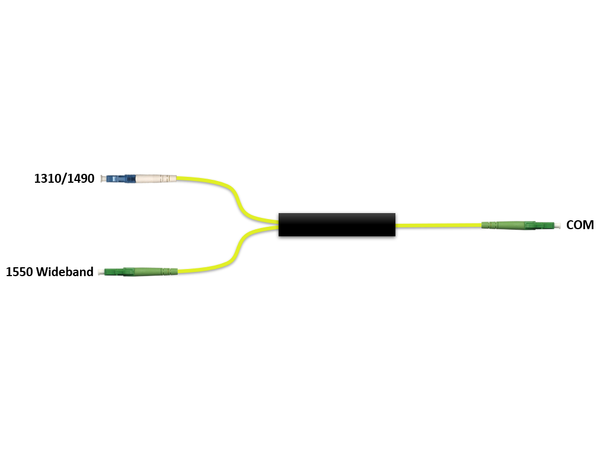

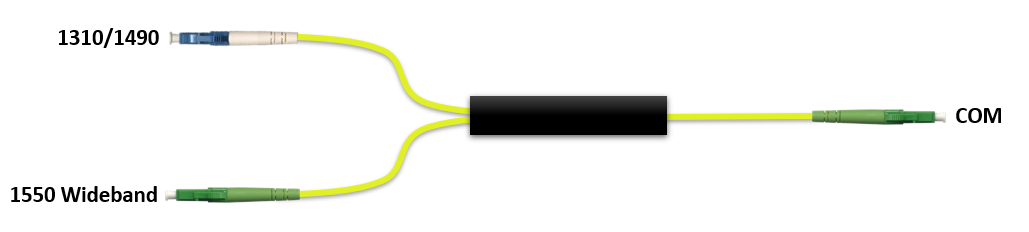

Fiberworks WMUX 1550WB+1310/1490 ABS box
Patchcord style, LC connectors UPC/APC
Varenr:
F-WMUX-15WB-34-IY-1
Tilbud
Legg i ønskeliste
Beskrivelse
Teknisk info
Tilbehør
Gå til kjøp
Tilbud
Beskrivelse
FEATURES
1550nm and 1310/1490nm splitter/combiner e.g. for RF overlay
ABS box 90x20x10 mm
2 mm patchcord style
LC/UPC connector on 1310/1490
LC/APC connectors on 1550WB and Com
Based on thin film optics with epoxy free optical path
Protocol transparent (support 1G, 10G etc.)
SPECIFICATIONS
Passband 1550WB port: 1540-1560 nm
Reflection band 1310/1490 port: 1260-1360 and 1480-1500 nm.
Insertion loss: < 0.8 dB
Teknisk info
Produktinformasjon
Formfaktor
Plastboks
Linjefiber
Enkel (bidi, mux/demux)
Antall kanaler
1
Add/drop-muligheter
Nei, kun mux/demux
Konnektortype
Rett (UPC, PC)
Konnektor
LC/APC
LC/UPC
Produktklassifisering/tollkoder
ECCN: EAR99
HS: 8517.62.0090
