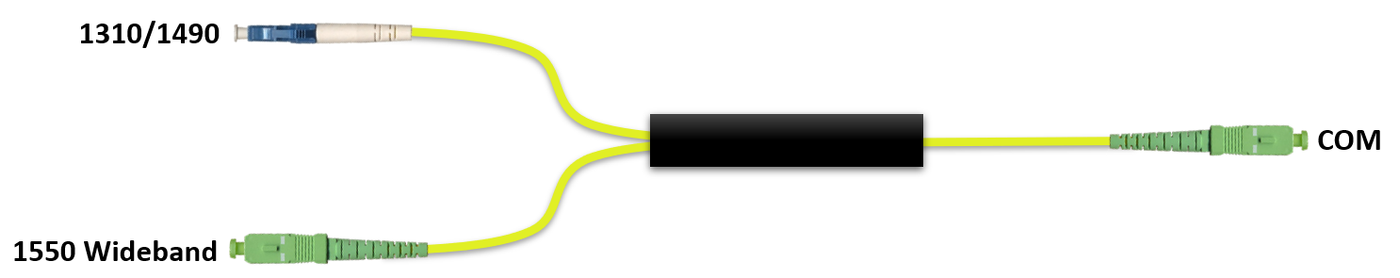

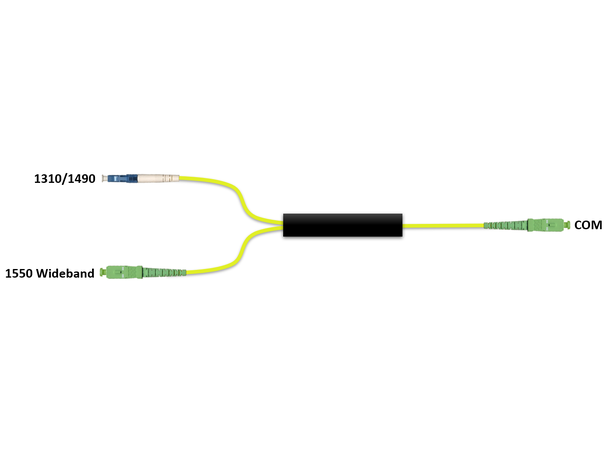

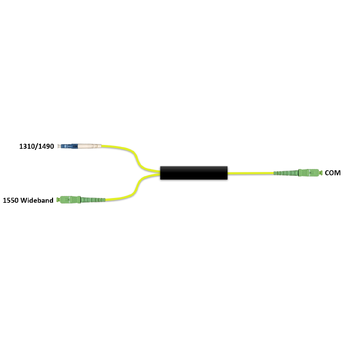

Fiberworks WMUX 1550WB+1310/1490 ABS box
Patchcord style, LC/UPC and SC/APC
FEATURES
1550nm and 1310/1490nm splitter/combiner e.g. for RF overlay
ABS box 90x20x10 mm
2 mm patchcord style
LC/UPC connector on 1310/1490
SC/APC connectors on 1550WB and Com
Based on thin film optics with epoxy free optical path
Protocol transparent (support 1G, 10G etc.)
SPECIFICATIONS
Passband 1550WB port: 1540-1560 nm
Reflection band 1310/1490 port: 1260-1360 and 1480-1500 nm.
Insertion loss: < 0.8 dB
Tilbehør
SFP BiDi, 1.25 Gbps GigE, DDM, SM, 10km
SFP BiDi, Multirate 100M-2.7G, DDM, 20km
SFP BiDi, Multirate 100M-2.7G, DDM, 20km
SFP BiDi, 1.25 Gbps GigE, DDM, SM, 10km
Alternativer
Artikler
Antall artikler funnet:
Kundesenter
Sitemap
Kontakt Oss
Bli kunde
Personvernregler
Logg inn
Ingen varer i handlevognen
Ingen varer i ordreboka
produkt
produkter
(
)
(
)
(
)
Til kassen
×
Aktiv leveringsdato
Leveringsdatoer
Ordre oversikt
Handlevogn
varer i handlevognen
Klikk her for å se alle
Handlevognen er tom.
Søk
DATASHEET
Last ned vår WDM guide >
Her er du nå:
Hjem
>
Produkter
>
xWDM multiplekser
>
PON / CEx WDM-muxer
>
GPON / RF overlay
>
Fiberworks WMUX 1550WB+1310/1490 ABS box
Fiberworks WMUX 1550WB+1310/1490 ABS box
Patchcord style, LC/UPC and SC/APC
Varenr:
F-WMUX-15WB-34-IY-3
Tilbud
Legg i ønskeliste
Beskrivelse
Teknisk info
Tilbehør
Gå til kjøp
Tilbud
Beskrivelse
FEATURES
1550nm and 1310/1490nm splitter/combiner e.g. for RF overlay
ABS box 90x20x10 mm
2 mm patchcord style
LC/UPC connector on 1310/1490
SC/APC connectors on 1550WB and Com
Based on thin film optics with epoxy free optical path
Protocol transparent (support 1G, 10G etc.)
SPECIFICATIONS
Passband 1550WB port: 1540-1560 nm
Reflection band 1310/1490 port: 1260-1360 and 1480-1500 nm.
Insertion loss: < 0.8 dB
Teknisk info
Produktinformasjon
Formfaktor
Plastboks
Linjefiber
Enkel (bidi, mux/demux)
Antall kanaler
1
Add/drop-muligheter
Nei, kun mux/demux
Konnektortype
Rett (UPC, PC)
Konnektor
LC/UPC
SC/APC
Produktklassifisering/tollkoder
ECCN: EAR99
HS: 8517.62.0090
