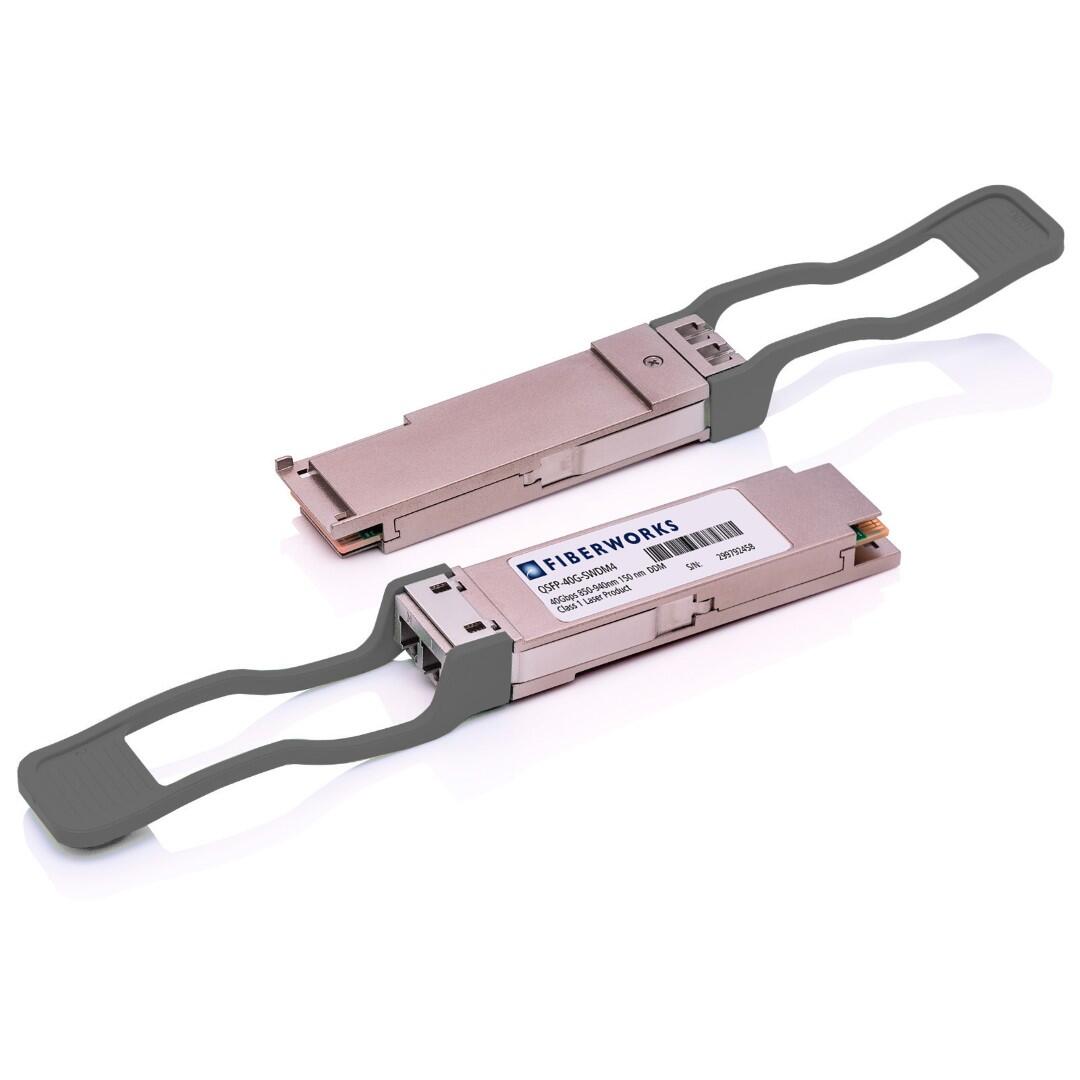

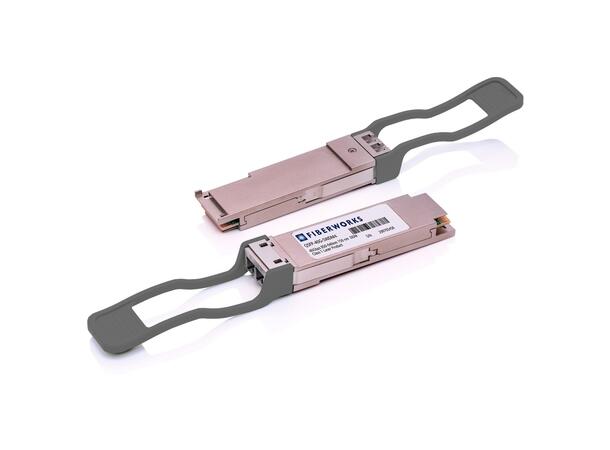

The QSFP+ 40G SWDM4 transceiver is a 40 Gbit/s pluggable module for 40GBASE Ethernet. The transceiver operates with four parallel data streams of 10.3125 Gbps in order to provide an aggregated signaling rate of 41.25 Gbps. The four lanes are launched with center wavelengths of 850 nm, 880 nm, 910 nm and 940 nm and multiplexed onto multimode fiber. On the receive side, the four lanes of optical data streams are de-multiplexed by the transceiver and retimed.
The module is fully compliant with all QSFP+ related MSA described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. QSFP+ 40G SWDM4 complies with 40Gbase-SWDM4 MSA.
APPLICATIONS
• 40G Ethernet
• Data Center and LAN
FEATURES
• Dual bidirectional operation on wavelengths 850nm, 880nm, 910nm and 940nm
• Up to 150m transmission on OM5 MMF
• Up to 100m transmission on OM4 MMF
• Up to 70m transmission on OM3 MMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP+ MSA with Duplex LC connector
• Case operating temperature range: 0°C to 70°C
• Power dissipation < 3.5 W
