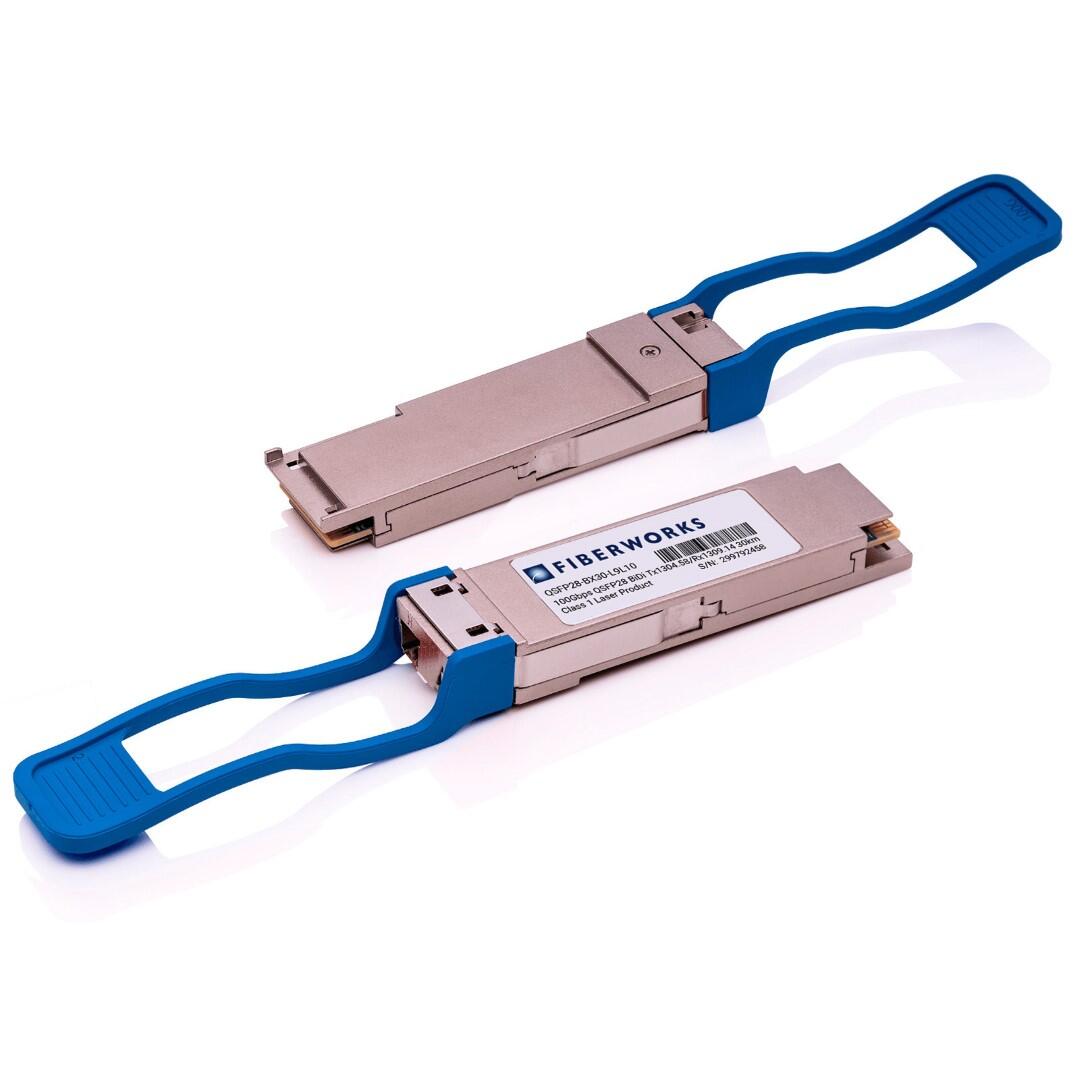

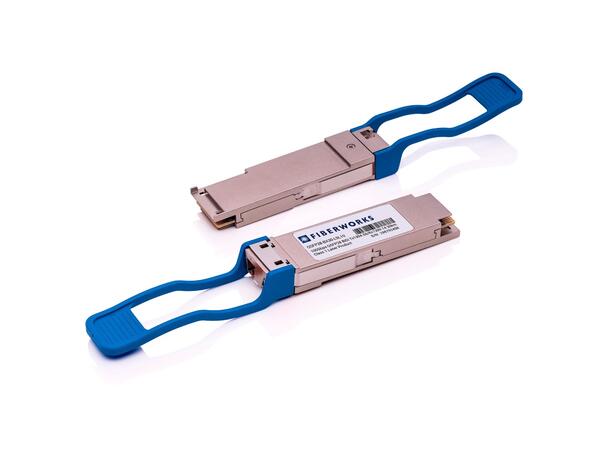

The QSFP28 BiDi transceivers are 100 Gbit/s pluggable modules for data communications such as 100GBASE Ethernet on one single mode fiber. The transceivers operates with one PAM4 data stream up to 106.25 Gbps, using different wavelengths in each direction.
The module is fully compliant with QSFP28 related MSA’s described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. QSFP28 BiDi transceivers complies with IEEE 802.3.
APPLICATIONS
• 100GBASE
• Data Center
FEATURES
• Up to 30 km transmission on one singlemode fiber
• Hot-Pluggable QSFP footprint
• Simplex LC interface for single fiber operation
• QSFP28 MSA compatible
• Wavelength: Tx: 1304.58nm / Rx: 1309.14nm
• Digital Diagnostic monitoring interface
• Operating Case Temperature: Standard: 0°C to 70°C
• Power dissipation < 4.5 W
