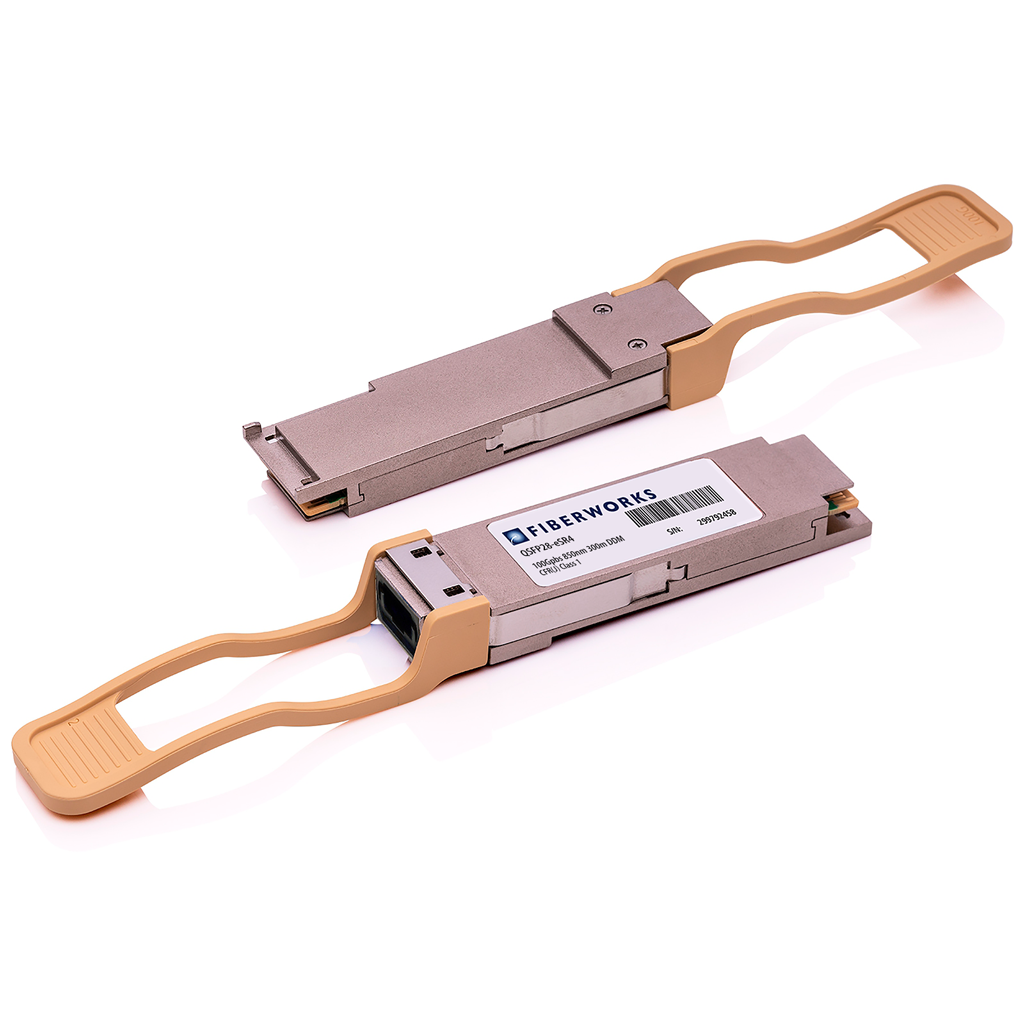

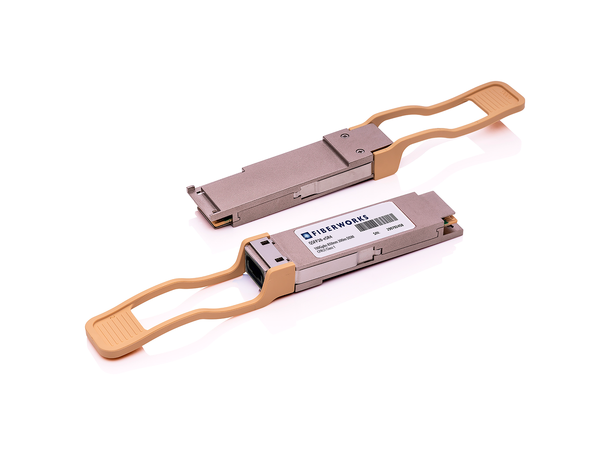

The QSFP28 eSR4 transceiver is a 100 Gbit/s pluggable module for bi-directional serial optical data communications such as 100GBASE Ethernet. The transceiver operates with four parallel data streams of 25.78 Gbps in order to provide an aggregated signaling rate of 103.125 Gbps. The module has an MPO12 male connector and uses four fiber pairs to create the four data lanes.
The module is fully compliant with all QSFP28 related MSA’s described in SFF-8665 and Digital Diagnostic functions are available through an I2C interface. It complies with IEEE 802.3 and 100Gbase-SR4.
APPLICATIONS
• 100G Ethernet
• Data Center and LAN
• Infiniband QDR
• Fibre Channel
FEATURES
• Compliant with 100Gbase-eSR4
• Single MPO receptacle
• Uses 4 parallell MM fiber pairs
• Up to 27.952 Gbps Data rate per wavelength
• Up to 111.8 Gbps line rate
• Up to 300m transmission on OM4 multimode fiber
• Up to 200m transmission on OM3 multimode fiber
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP28 MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 2 W
