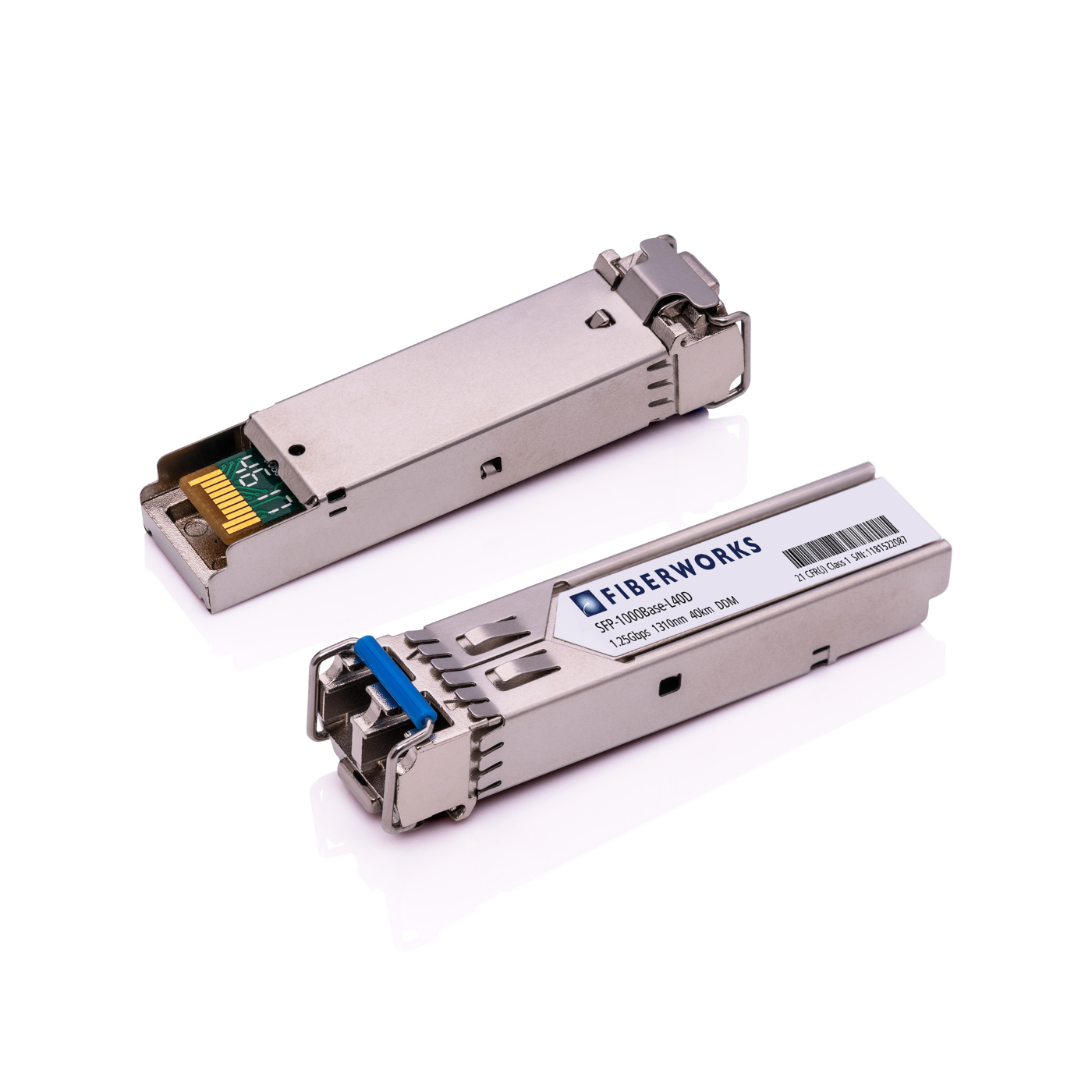

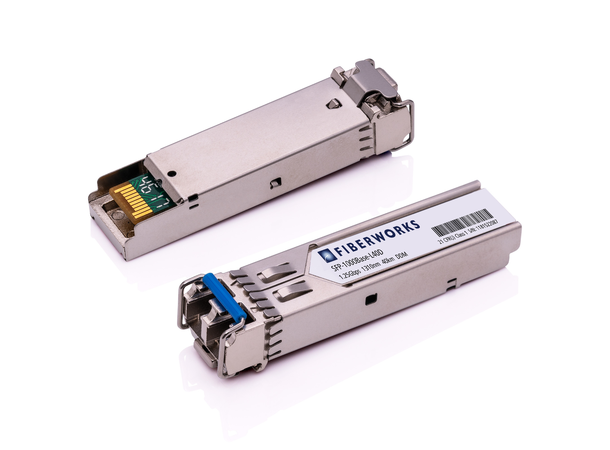

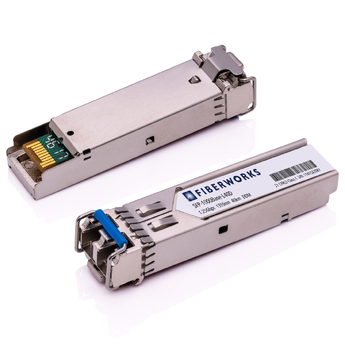

The SFP-1000Base-LXD optical transceivers are fully compliant with the SFP Multi-Source Agreement (MSA). The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. They meet the requirements of IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and are suitable for interconnections in Gigabit Ethernet and Fibre Channel environments.
The transceivers are high performance, cost effective modules supporting dual data-rates of 1.25 Gb/s and 1.0625 Gb/s and transmission of up to 40 km on 9/125µm SM fiber or 550 m on 62.5/125 µm MM fiber. The transceivers have been tested according to European and American product safety and electro-magnetic compatibility regulations..
APPLICATIONS
1000Base-LX
1G Fibre Channel
FEATURES
Compatible with Small-Form Pluggable (SFP) MSA
SFF-8472 Digital Diagnostic Function
Compatible with IEEE 802.3z
Compatible with ANSI specifications for Fibre Channel
Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
Operating wavelength at 1310 nm
40 km transmission with 9/125 µm SM fiber
Duplex LC connector type
Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
+3.3V single power supply
