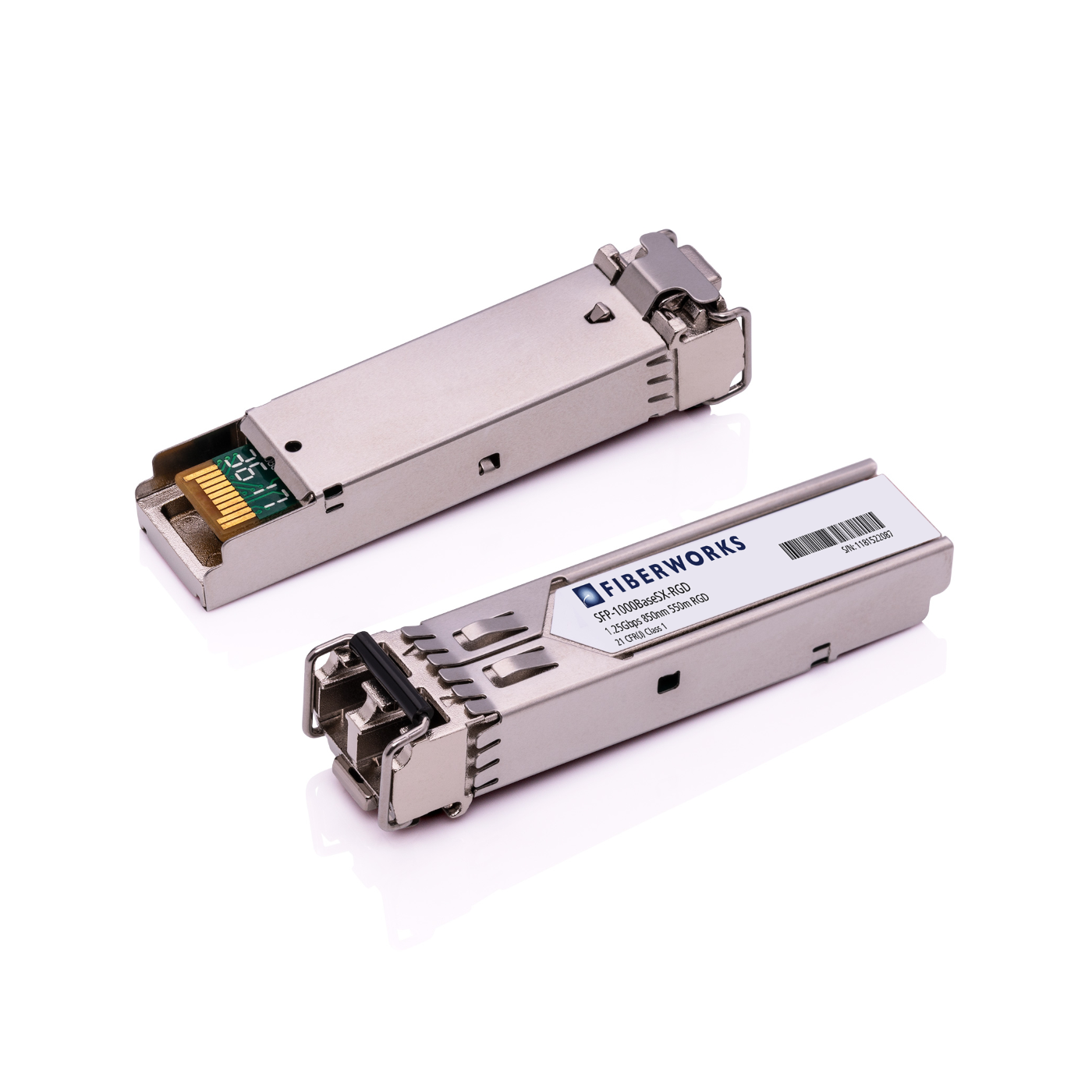

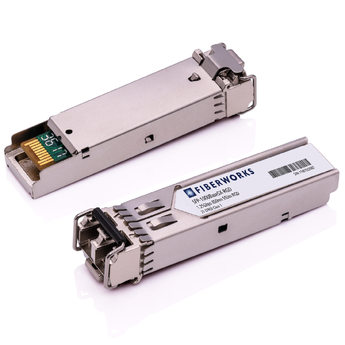

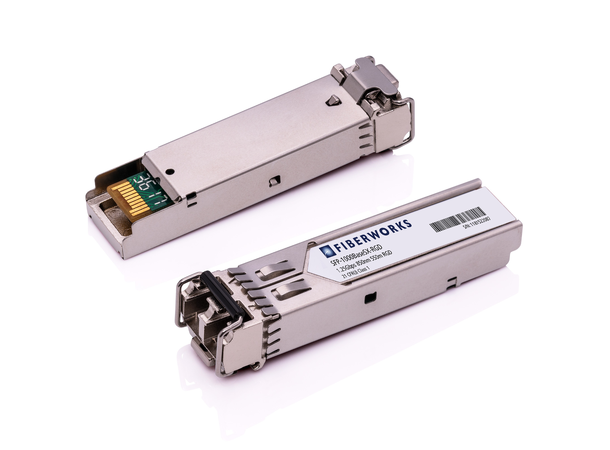

The SFP-1000BaseSX-RGD optical transceiver is fully compliant with the SFP Multi-Source Agreement (MSA). It meets the requirements of IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and is suitable for interconnections in Gigabit Ethernet and Fibre Channel environments.
The transceiver is a high performance, cost effective module supporting triple data-rates of 100 Mb/s, 1.25 Gb/s and 1.0625 Gb/s. It supports gigabit transmission distances up to 550 m on 50/125 µm MM fiber or 270 m on 62.5/125 µm MM fiber as well as 2 km transmission for 100Mb/s operation.
This transceiver is built to withstand extreme temperatures and is suitable for industrial environments and other applications where climate control is a challenge.
APPLICATIONS
• Industrial environments
• 1000Base-SX
• 1G Fibre Channel
FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• SFF-8472 Digital Diagnostic Function
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
• Operating wavelength at 850 nm
• Duplex LC connector type
• 550 m transmission with 50/125 µm MM fiber
• 270 m transmission with 62.5/125 µm MM fiber
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply
• Extended operating temperature range, -40°C - +85°C
