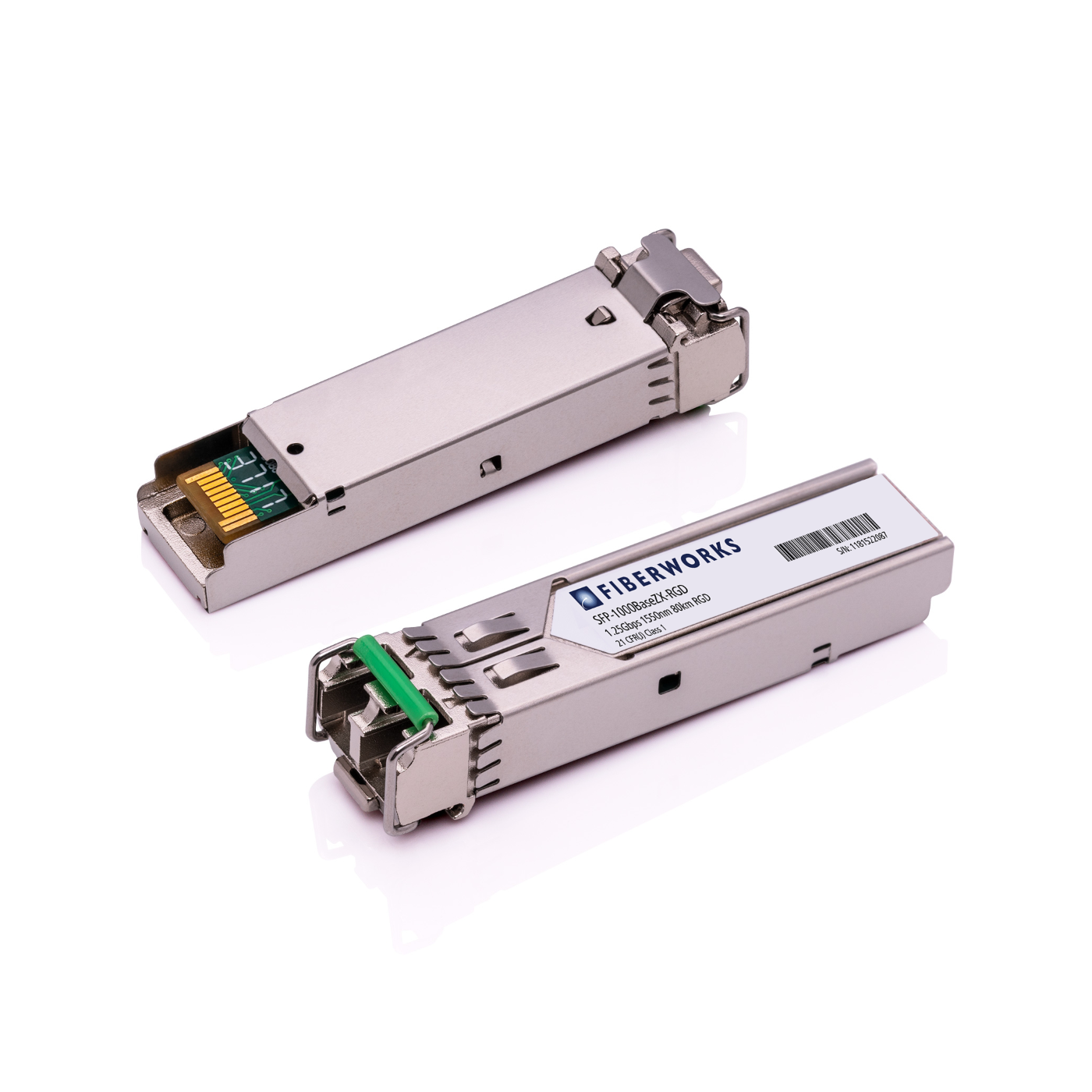

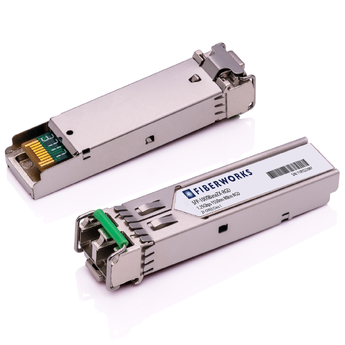

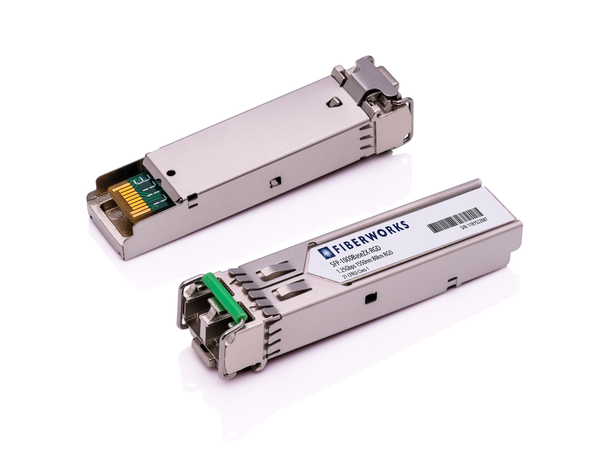

SFP, 1.25 Gbps GigE, DDM, 80km, Rugged 1550nm, 24dB, SM, Fiberworks

SFP, 1.25 Gbps GigE, DDM, 80km, Rugged

1550nm, 24dB, SM, Fiberworks

Varenr: SFP-1000BaseZX-RGD-U



Finner du ikke kodingen du er på jakt etter?



Ta kontakt med vår produktsjef.

Det kan hende vi likevel kan levere den.

Du kan også lese mer om transceiverkompatibilitet i denne artikkelen.

BeskrivelseTeknisk info
Beskrivelse

The SFP-1000BaseZX-RGD optical transceiver is fully compliant with the SFP Multi-Source Agreement (MSA). The module is hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. It meets the requirements of IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and are suitable for interconnections in Gigabit Ethernet and Fibre Channel environments.

The transceiver is a high performance, cost effective module supporting dual data-rates of 1.25 Gb/s and 1.0625 Gb/s and transmission of up to 80 km on 9/125µm SM fiber. The transceiver has been tested according to European and American product safety and electro-magnetic compatibility regulations..

This transceiver is built to withstand extreme temperatures and is suitable for industrial environments and other applications where climate control is a challenge.


APPLICATIONS
• Industrial environments
• 1000Base-ZX
• 1G Fibre Channel

FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• SFF-8472 Digital Diagnostic Function
• Compatible with IEEE 802.3z
• Compatible with ANSI specifications for Fibre Channel
• Dual data-rate of 1.25 Gb/s and 1.6025 Gb/s operation
• Operating wavelength at 1550 nm
• Duplex LC connector type
• 80 km transmission with 9/125 µm SM fiber
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply
• Extended operating temperature range, -40°C - +85°C
Teknisk info

Produktinformasjon

Formfaktor SFP
Protokoll / bitrate Gigabit Ethernet
Mediatype Singelmodus
Rekkevidde (dB) 24
Rekkevidde (km) 80
Bølgelengde (nm) 1550
Lasertype DFB
Mottakertype PIN
Linjemodulasjon NRZ
Sendestyrke (Tx power) min. [dBm] 0
Sendestyrke (Tx power) max. [dBm] +5
Mottakerfølsomhet (Rx power min.) [dBm] -24
Max. mottakereffekt [dBm] -3
DDM Ja
Konnektor LC Duplex
Fareklasse Laser klasse 1
Temperaturområde, drift -40°C - +85°C (industriell)
Temperaturområde, lagring -40°C - +85°C
Produktklassifisering/tollkoder
  • ECCN: 5A991
  • HS: 8517.62.0090
