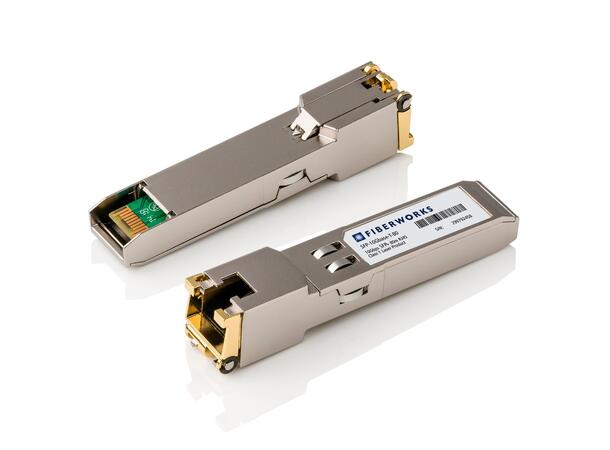

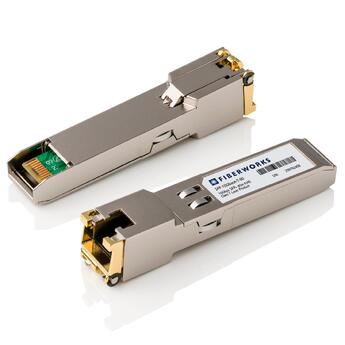

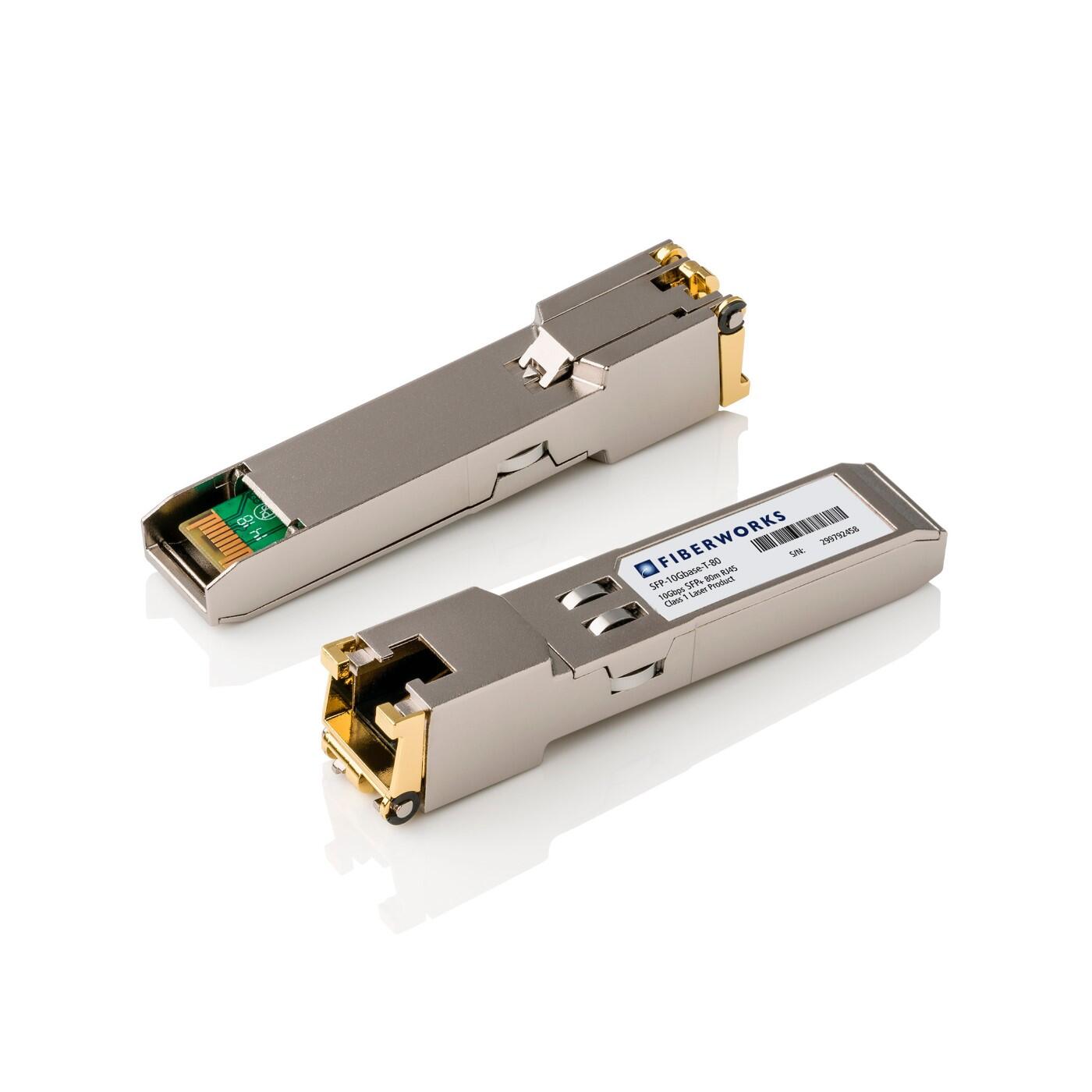

The SFP-10GBase-T electrical SFP+ transceiver (RJ45) is designed for high speed Gigabit Ethernet data links up to 10 Gb/s, with XGMII interface. It is a high-performance integrated duplex data link for bi-directional communication over CAT 6a/7 unshielded twisted pair copper cable. It is compliant with the Enhanced Small Form Factor Pluggable (SFP+) MSA specification. The transceiver is hot pluggable and operates at +3.3V.
The RJ45 connector supports shielded and unshielded cables. The connector is mechanically robust enough and designed to prevent loss of link, when the cable is positioned or moves in different angles. The connector passes the “wiggle” RJ45 connector operational stress test.
APPLICATIONS
• 10Gbase-T
FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• Up to 80 m on CAT-6/7 UTP cables
• RJ45 connector type
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply
• Operating temperature range:-40°C to 85°C
