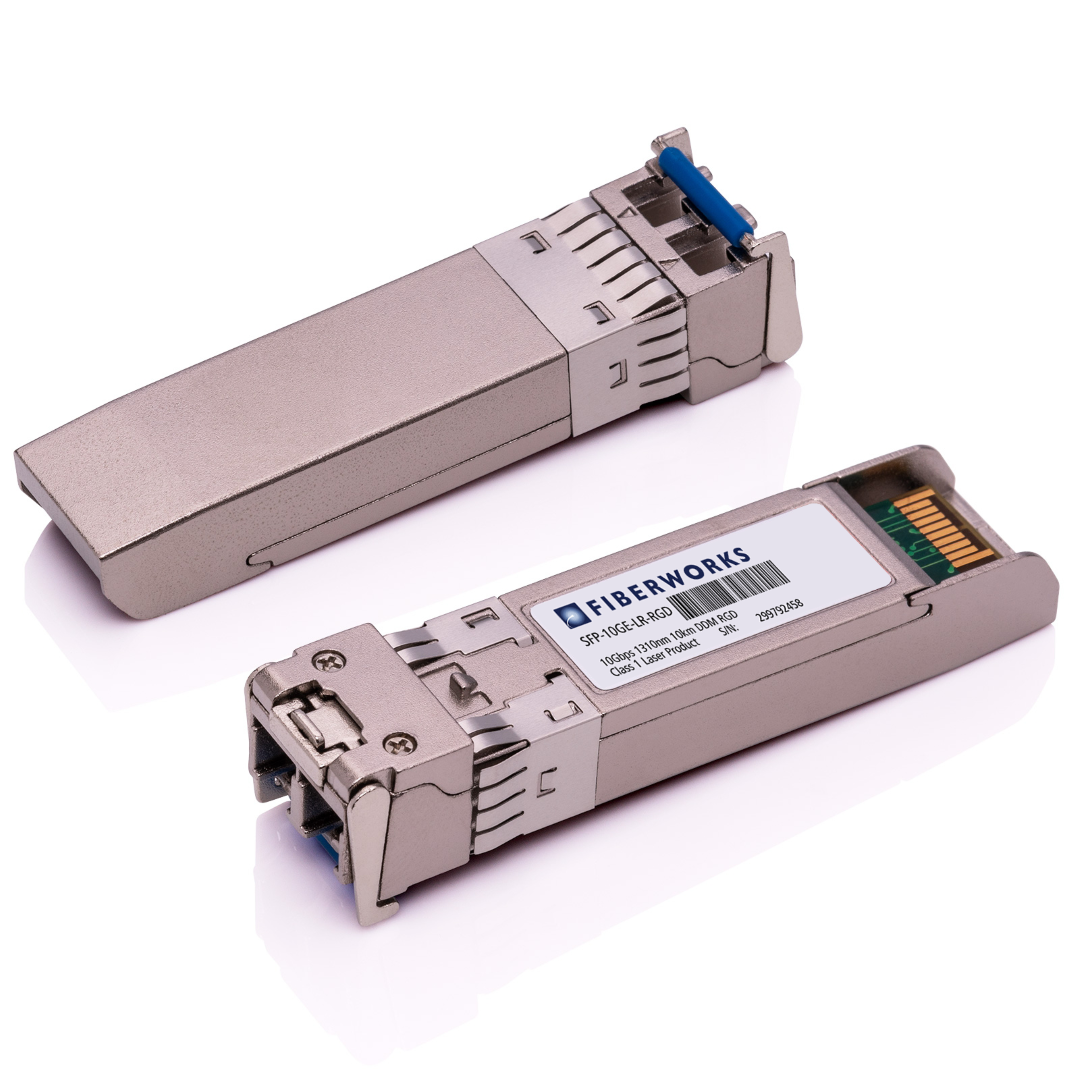

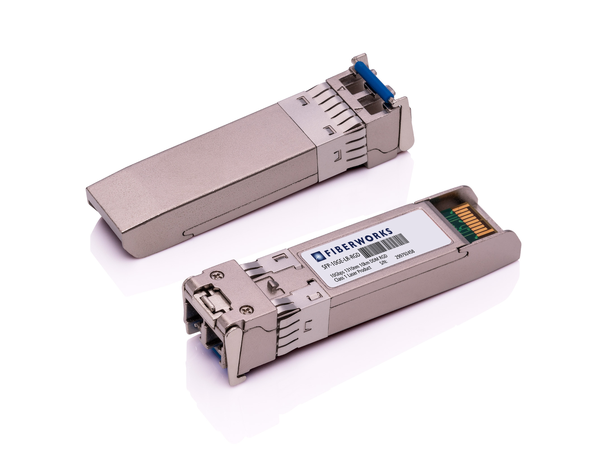

SFP+, 10G Ethernet, DDM, 10km, Rugged 1310nm, 9dB, SM
BeskrivelseTeknisk infoTilbehør
Beskrivelse

The SFP-10GE Ruggedized transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 10GBASE Ethernet. The modules are compliant to the SFP+ MSA and are hot pluggable. Digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. The modules meet the requirements of the IEEE 802.3 10GBASE-SR/LR Ethernet standard and are suitable for interconnections in 10G Ethernet environments. The transceivers can also be used for a wide range of other protocols with bitrates between 600 Mbps and 11.1 Gbps.

SFP-10GE Rugged is made according to industrial standards and supports operating temperatures between -40 °C and 85 °C.


APPLICATIONS
• 10GBASE-LR
• Industrial environments

FEATURES
• 10 km transmission at 1310 nm
• 9 dB link budget
• Hot-Pluggable SFP+ footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostics Monitoring
• Industrial operating temperature range, -40°C - +85°C


Teknisk info

Produktinformasjon

Formfaktor SFP+
Protokoll / bitrate
  • 10 Gigabit Ethernet
  • 10G Fibre Channel
  • SDH STM-64
  • OTN/G.709/G.sup43 OTU2(e)
  • CPRI/OBSAI 1.228 - 3.072 Gbps
  • CPRI/OBSAI 4.915 - 9.830 Gbps
Mediatype Singelmodus
Rekkevidde (dB) 9
Rekkevidde (km) 10
Bølgelengde (nm) 1310
Lasertype DFB
Mottakertype PIN
Linjemodulasjon NRZ
Sendestyrke (Tx power) min. [dBm] -6
Sendestyrke (Tx power) max. [dBm] -0,5
Mottakerfølsomhet (Rx power min.) [dBm] -15
Max. mottakereffekt [dBm] +0,5
DDM Ja
Konnektor LC Duplex
Fareklasse Laser klasse 1
Temperaturområde, drift -40°C - +85°C (industriell)
Temperaturområde, lagring -40°C - +85°C
Produktklassifisering/tollkoder
  • ECCN: 5A991
  • HS: 8517.62.0090
