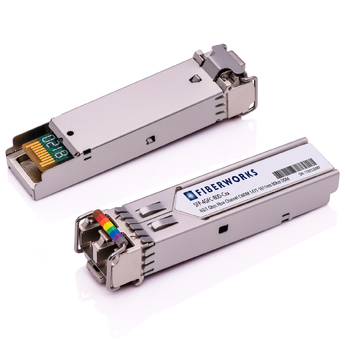

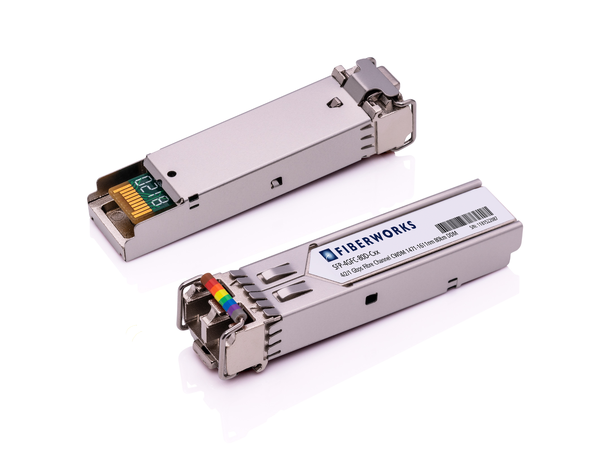

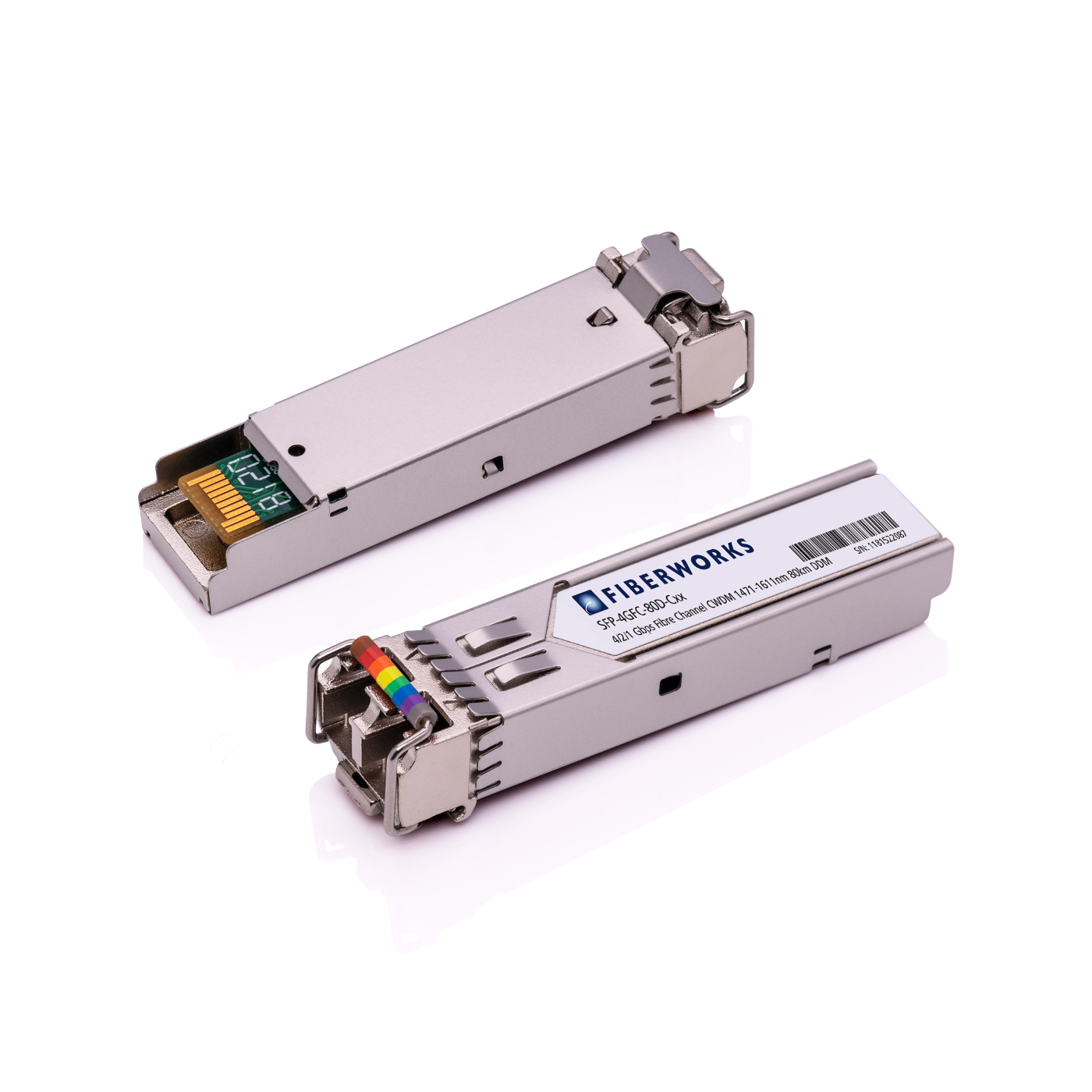

The SFP-4GFC transceiver family are small form factor pluggable modules for bi-directional serial optical data communications such as 4x/2x/1x Fibre Channel and 1000BASE Ethernet. The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472.
The modules meet the requirements of the IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and are suitable for interconnections in Gigabit Ethernet and Fibre Channel environments.
CWDM modules operate at nominal Coarse Wavelength Division Multiplexing (CWDM) wavelengths. Eighteen center wavelengths are available from 1271 nm to 1611 nm with each step being 20 nm. The CWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.694.2 and G.695
APPLICATIONS
• 4.25 Gb/s, 2,125 Gb/s & 1.0625 Gb/s Fibre Channel
• 1000BASE Ethernet
FEATURES
• 80 km transmission
• Hot-Pluggable SFP footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• 8 CWDM wavelengths (λ): 1471 nm to 1611 nm
• SFF-8472 Digital Diagnostic Function
