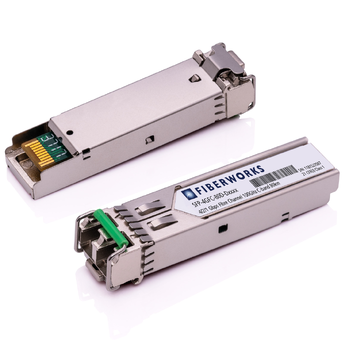

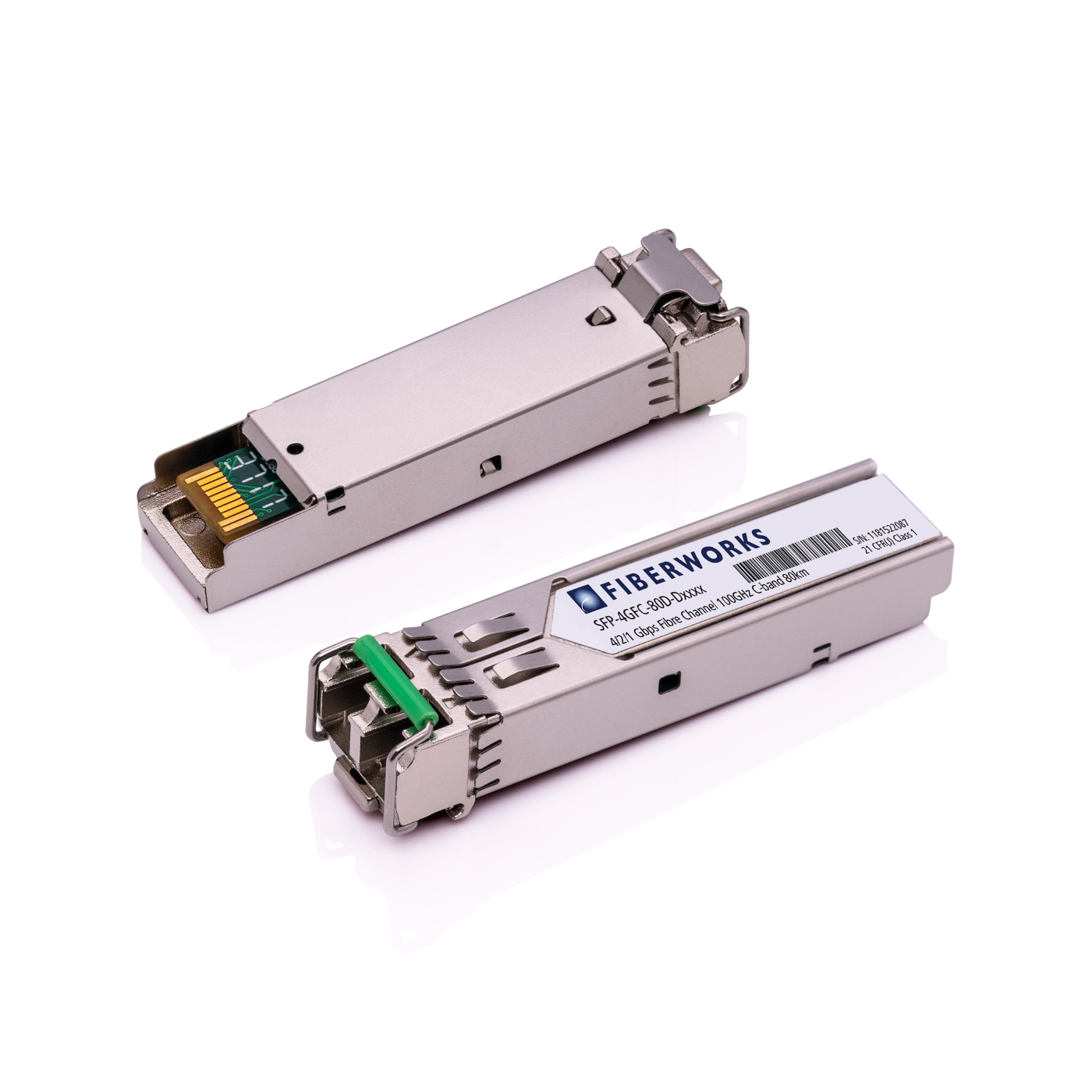

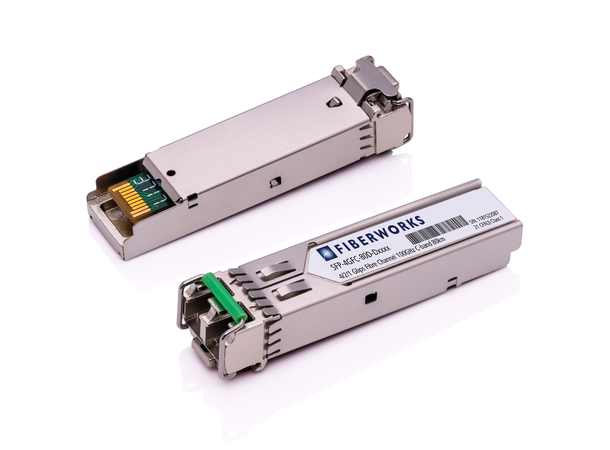

The SFP-4GFC-80D-Dxxxx transceivers are small form factor pluggable modules for bi-directional serial optical data communications such as 4x/2x/1x Fibre Channel and 1000BASE Ethernet. The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472.
The modules meet the requirements of the IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications, and are suitable for interconnections in Gigabit Ethernet and Fibre Channel environments. The SFP-4GFC-80D-Dxxxx operates over 80 km of standard singlemode fiber.
DWDM modules operate at nominal Dense Wavelength Division Multiplexing (DWDM) wavelengths. 45 wavelengths are available from 1528.77 nm– 1563.23 nm in a 100 GHz (~0.8 nm) channel spacing. The DWDM characteristics are fully compliant to the wavelength parameters specified in ITU standards G.692 and G.694.1
APPLICATIONS
• 4.25 Gb/s, 2,125 Gb/s & 1.0625 Gb/s Fibre Channel
• 1000BASE Ethernet
FEATURES
• 80 km transmission
• Hot-Pluggable SFP footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• 45 DWDM wavelengths
• SFF-8472 Digital Diagnostic Function
