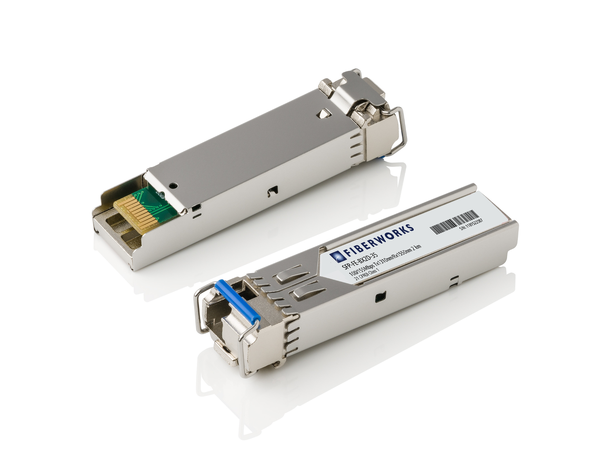

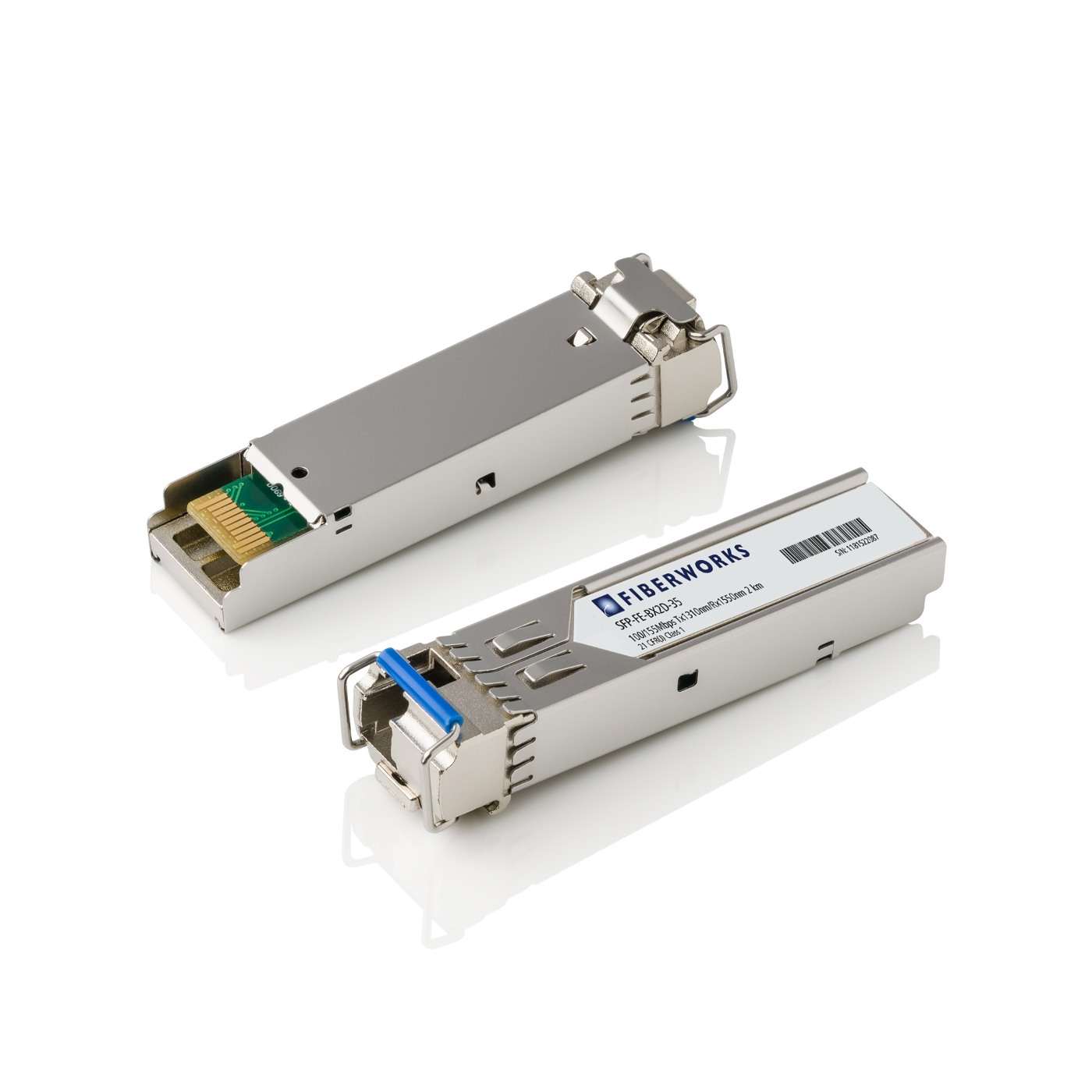

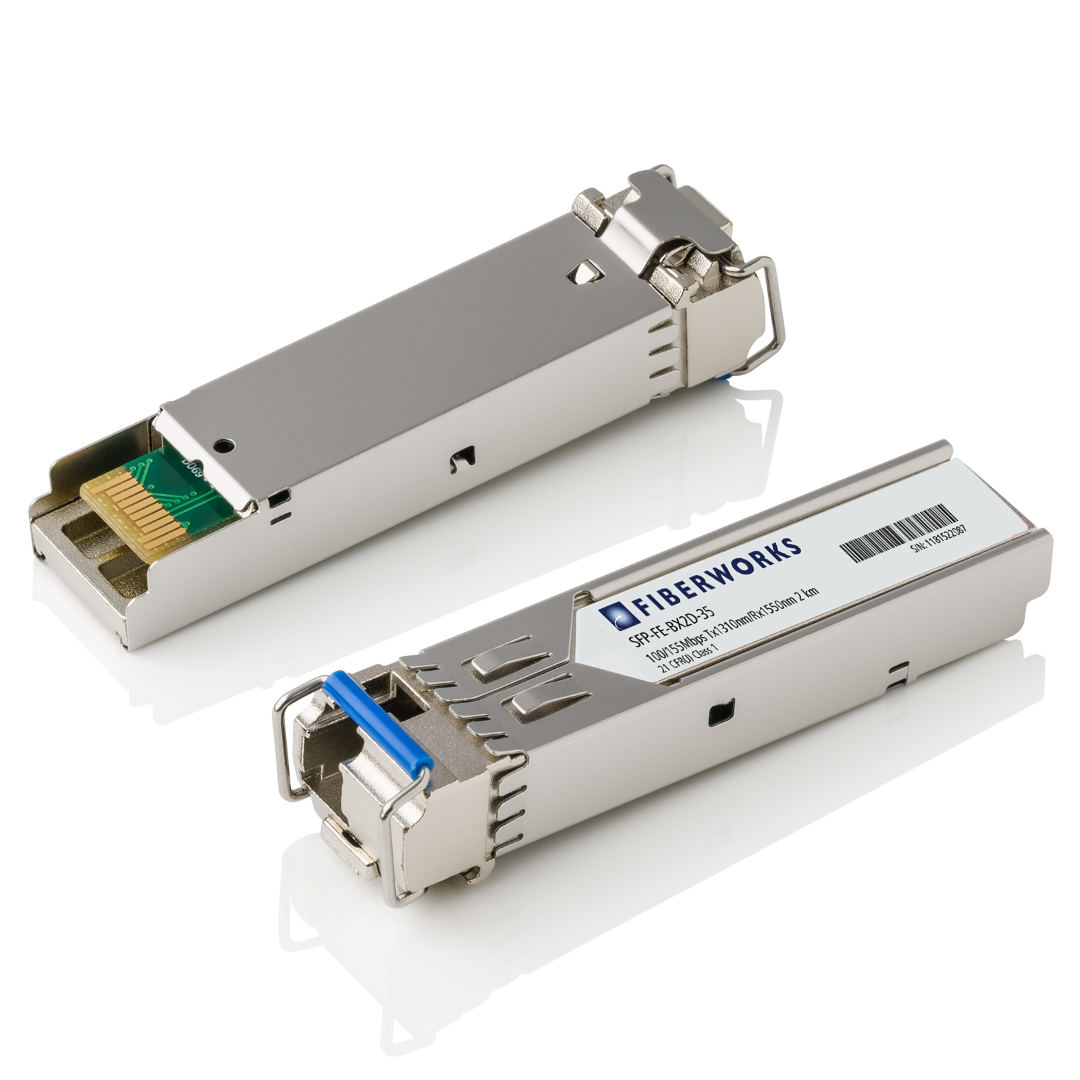

The SFP-FE-BX2D-35 and SFP-FE-BX2D-53 transceivers are fully compliant with the latest industrial SFP Multi-Source Agreement (MSA) and IEEE 802.3ah for Fast Ethernet 100Base-BX. They support data rate at 155 Mbps and are suitable for Fast Ethernet applications. The transceivers operate bi-directionally on single fiber at wavelengths of 1310 nm and 1550 nm. The modules are hot pluggable and can operate up to 2km on MM fiber.
APPLICATIONS
• single fiber options 1310/1550
• 100Base Ethernet
• FTTx
FEATURES
• 2km transmission on MM fiber
• Hot-Pluggable SFP footprint
• LC optical interface
• compliant to SFP MSA and SFF-8472
