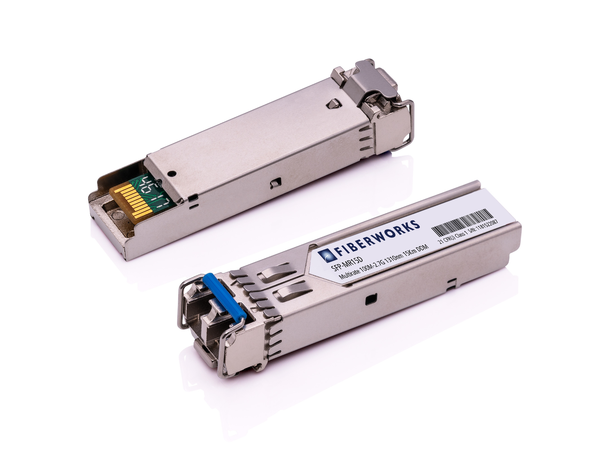

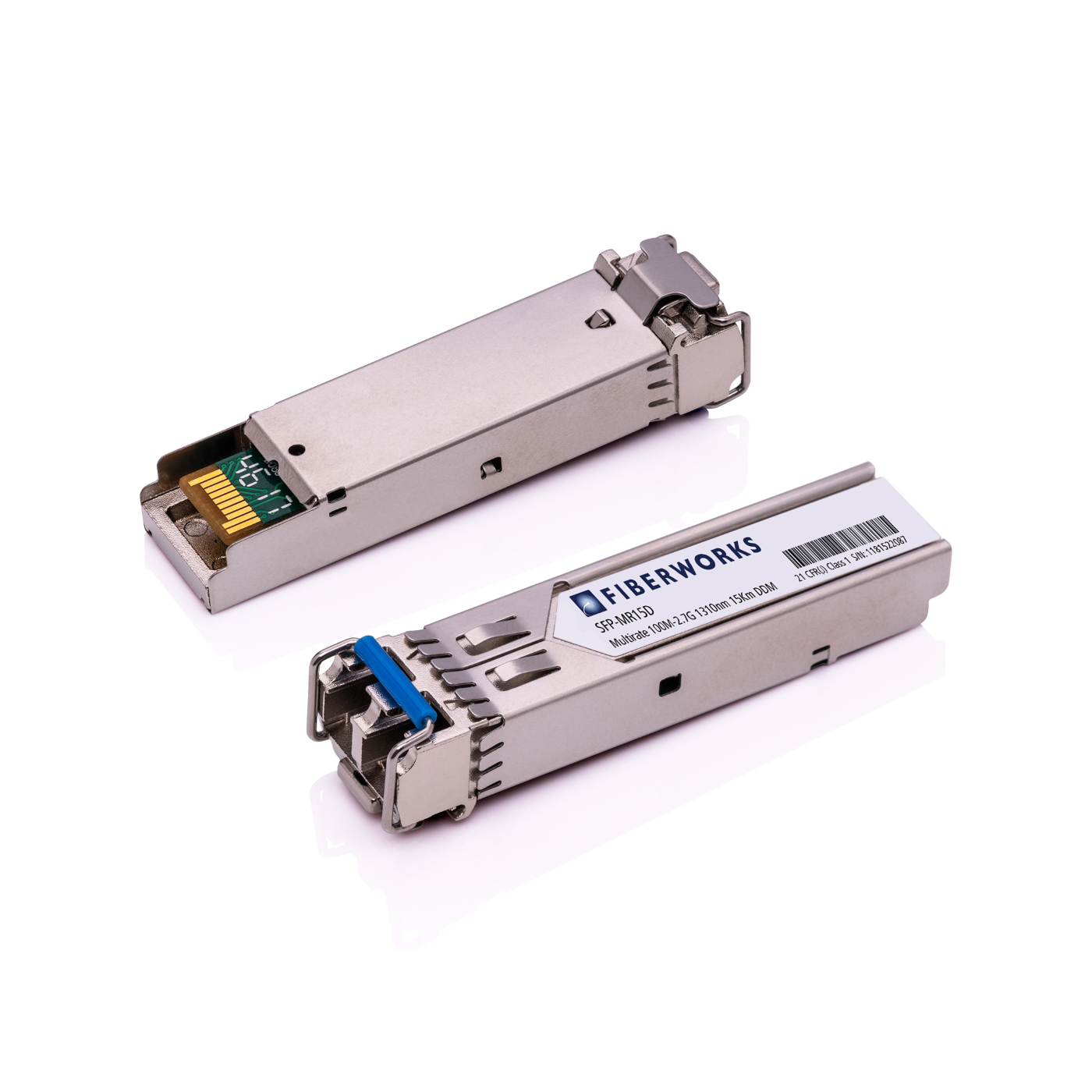

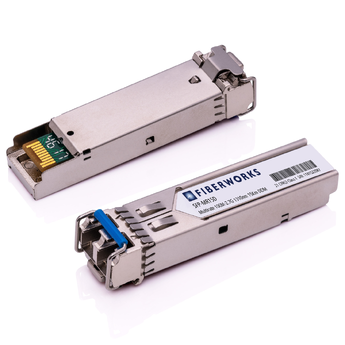

The SFP-MRD transceiver family are small form factor pluggable modules for bi-directional serial optical data communications. The modules are hot pluggable and digital diagnostic functions are available via an I2C serial bus specified in the SFP MSA SFF-8472. Its Multirate characteristics allows the module to transmit data-rates from 155mb/s to 2.67 Gb/s. Typical protocols are STM-16FEC/OC-48FEC, STM-16/OC-48, 2G Fibre Channel, Gigabit Ethernet, Fibre Channel, STM-4/OC-12, DVB-ASI, ESCON and STM-1/OC-3.
The modules meet the requirements of ITU G.957 (SDH/SONET), IEEE 802.3 Gigabit Ethernet standard and ANSI Fibre Channel specifications.
APPLICATIONS
• 155 Mb/s to 2.67 Gb/s
• SDH (S1/4/16.1)
• 1000Base Gigabit Ethernet
• 1x/2x Fibre Channel
FEATURES
• Compatible with Small-Form Pluggable (SFP) MSA
• Operating wavelength at 1310 nm
• Duplex LC connector type
• 15 km transmission with 9/125 µm SM fiber
• Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
• Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
• +3.3V single power supply
