APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s
FEATURES
• Up to 10.7Gbps Data Links

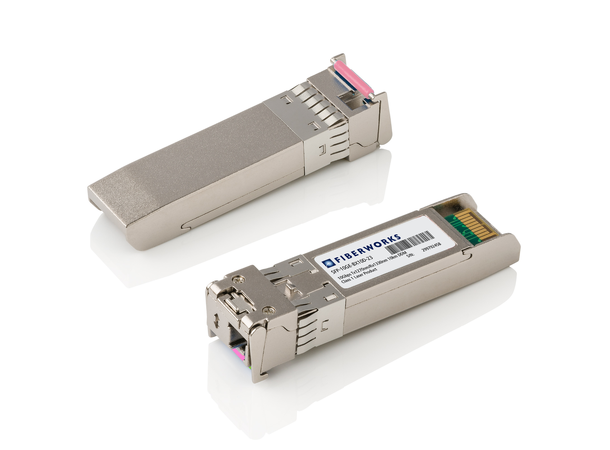

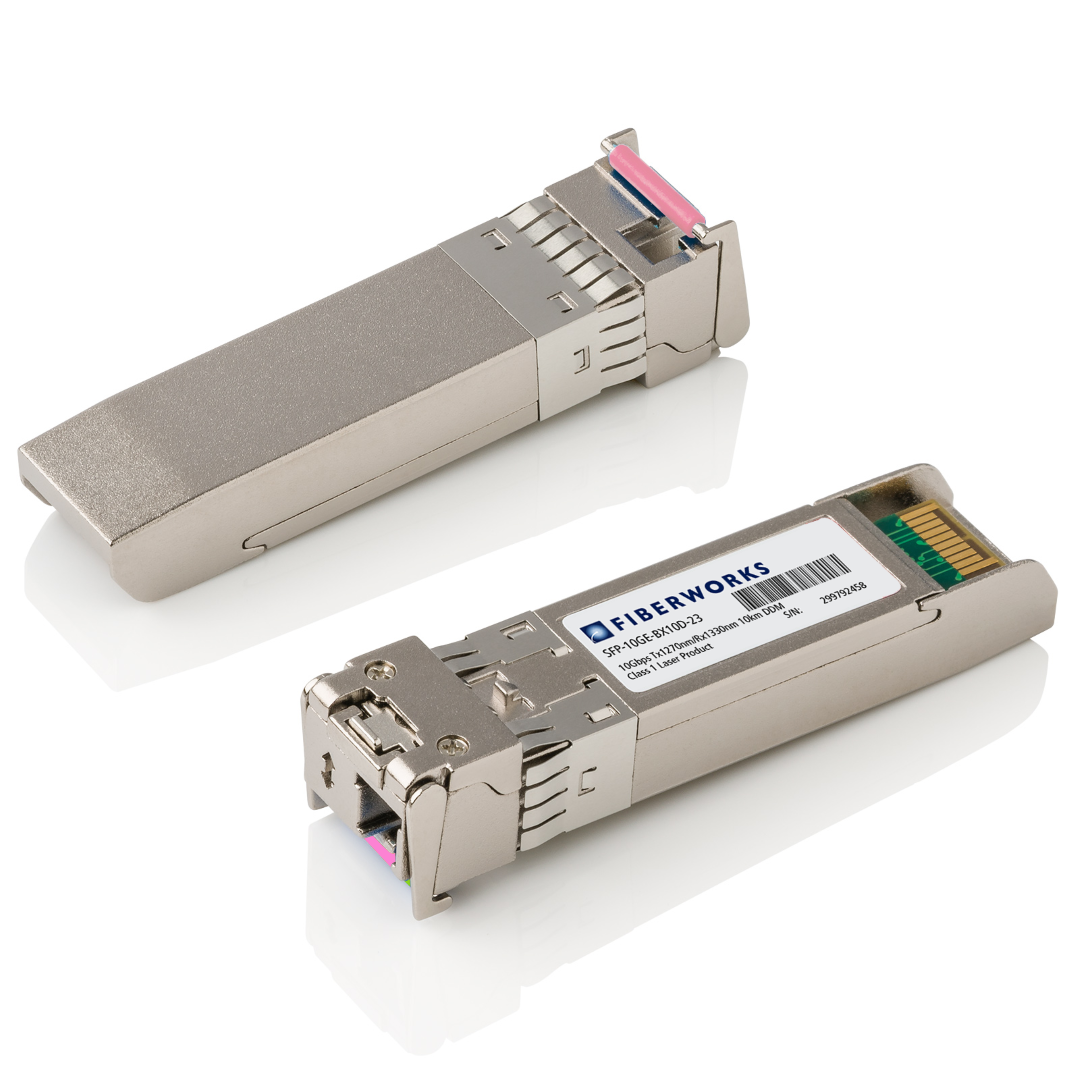

• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 10km transmission on SMF
• Power dissipation<1.0W
• 1270nm DFB laser and 1330nm PIN receiver
• 2-wire interface with integrated Digital Diagnostic monitoring
• EEPROM with Serial ID Functionality
• Compliant with FC_PI_4 REV 7.0
• Compliant with SFP+ MSA with duplex LC connector
• Single + 3.3V Power Supply and LVTTL Logic
• Industrial Operating case temperature:-40~+85ºC
