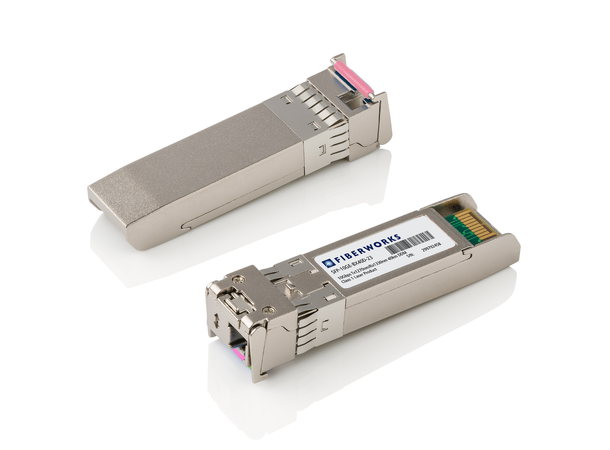

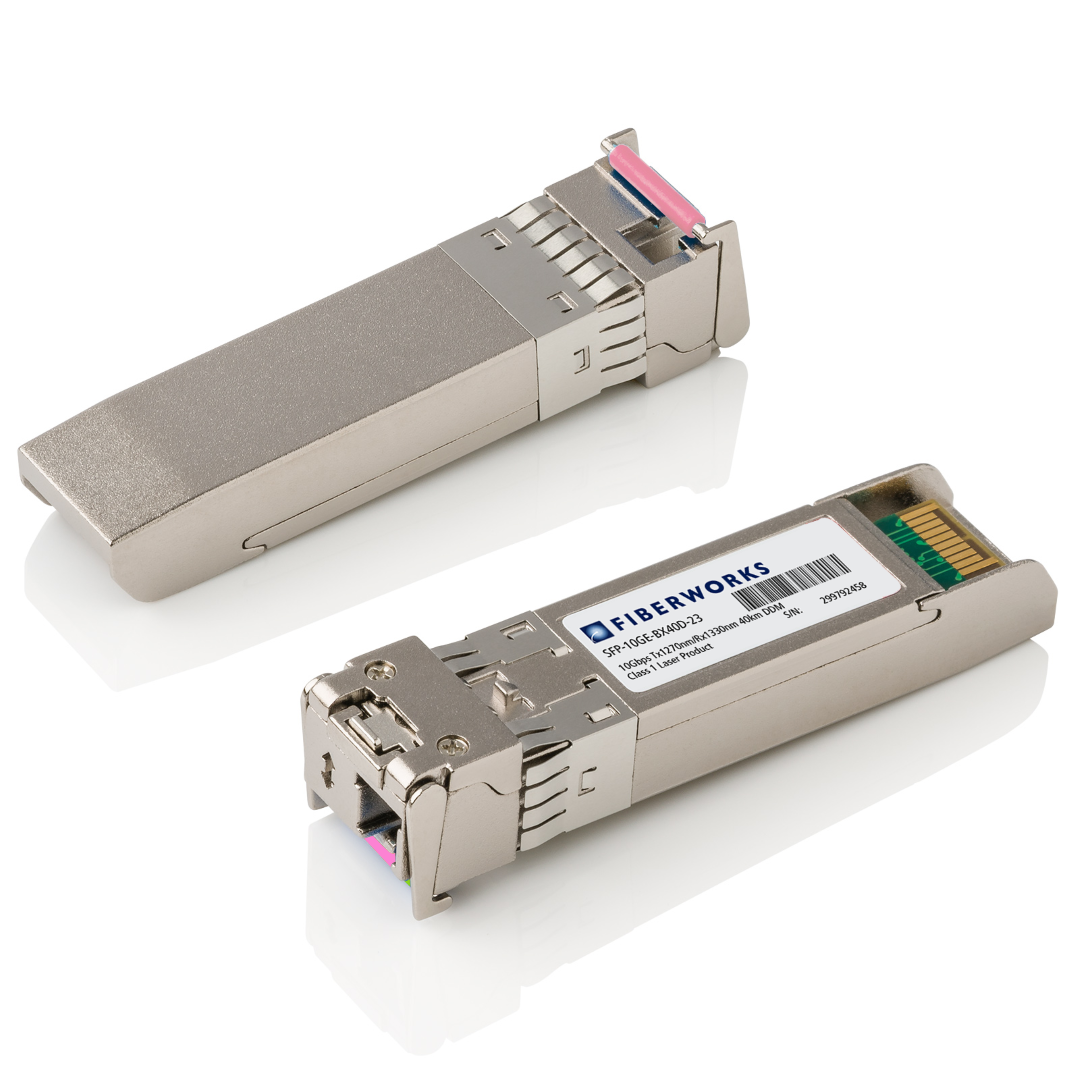

SFP+ BiDi, 10 GE, DDM, SM, 40km, I-Temp

Tx/Rx=1270/1330nm, 14dB, LC

Varenr: SFP10G-BX40-23-RGD

Datablad / mer produktinformasjon

Beskrivelse

APPLICATIONS
• 10GBASE-BX at 10.3125 Gb/s
• 10GBASE-BX at 9.953 Gb/s

FEATURES
• Up to 10.7Gbps Data Links
• Single Mode LC Receptacle Bi-directional Transceiver
• Up to 40km transmission on SMF
• Power dissipation <1.0W
• 1270nm DFB laser and 1330nm PIN receiver
• Digital Diagnostic monitoring
• Compliant with SFP+ MSA with simplex LC connector
• Operating case temperature:-40~+85ºC

Teknisk info

Produktinformasjon

Formfaktor	SFP+
Protokoll / bitrate	10 Gigabit Ethernet 10G Fibre Channel SDH STM-64 OTN/G.709/G.sup43 OTU2(e) CPRI/OBSAI 1.228 - 3.072 Gbps CPRI/OBSAI 4.915 - 9.830 Gbps
Mediatype	Singelfiber
Rekkevidde (dB)	14
Rekkevidde (km)	40
Bølgelengde (nm)	1270/1330
DDM	Ja
Konnektor	LC Simplex
Fareklasse	Laser klasse 1
Temperaturområde, drift	-40°C - +85°C (industriell)
Temperaturområde, lagring	-40°C - +85°C
Produktklassifisering/tollkoder	ECCN: 5A991 HS: 8517.62.0090
