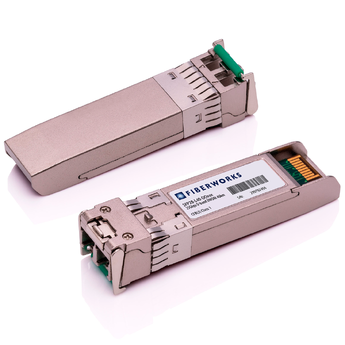

The SFP28 O-Band DWDM transceiver is a 25 Gbit/s pluggable module for 25GBASE Ethernet bi-directional serial optical data communications. The transceiver is available in DWDM wavelengths in O-band.
The module is fully compliant with SFP28 related MSA standards described in SFF-8402 and Digital Diagnostic functions are available through an I2C interface. SFP28 O-Band DWDM complies with IEEE 802.3 and 25Gbase Ethernet.
APPLICATIONS
• 25GBASE-LR
• DWDM Systems
FEATURES
• Up to 40km transmission on SM fiber
• Hot-Pluggable SFP footprint
• LC Optical interface
• SFP28 MSA compatible
• Digital Diagnostics Monitoring interface
• Single 3.3 V power supply
• Power dissipation < 2 W
• RoHS-6 compliant (lead-free)
• Case operating temperature: 0°C to 70°C
