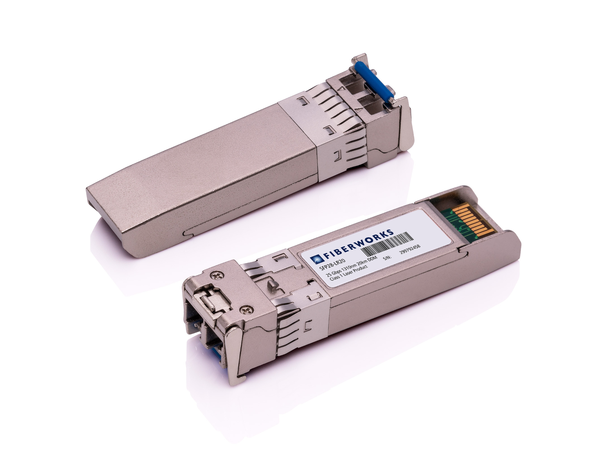

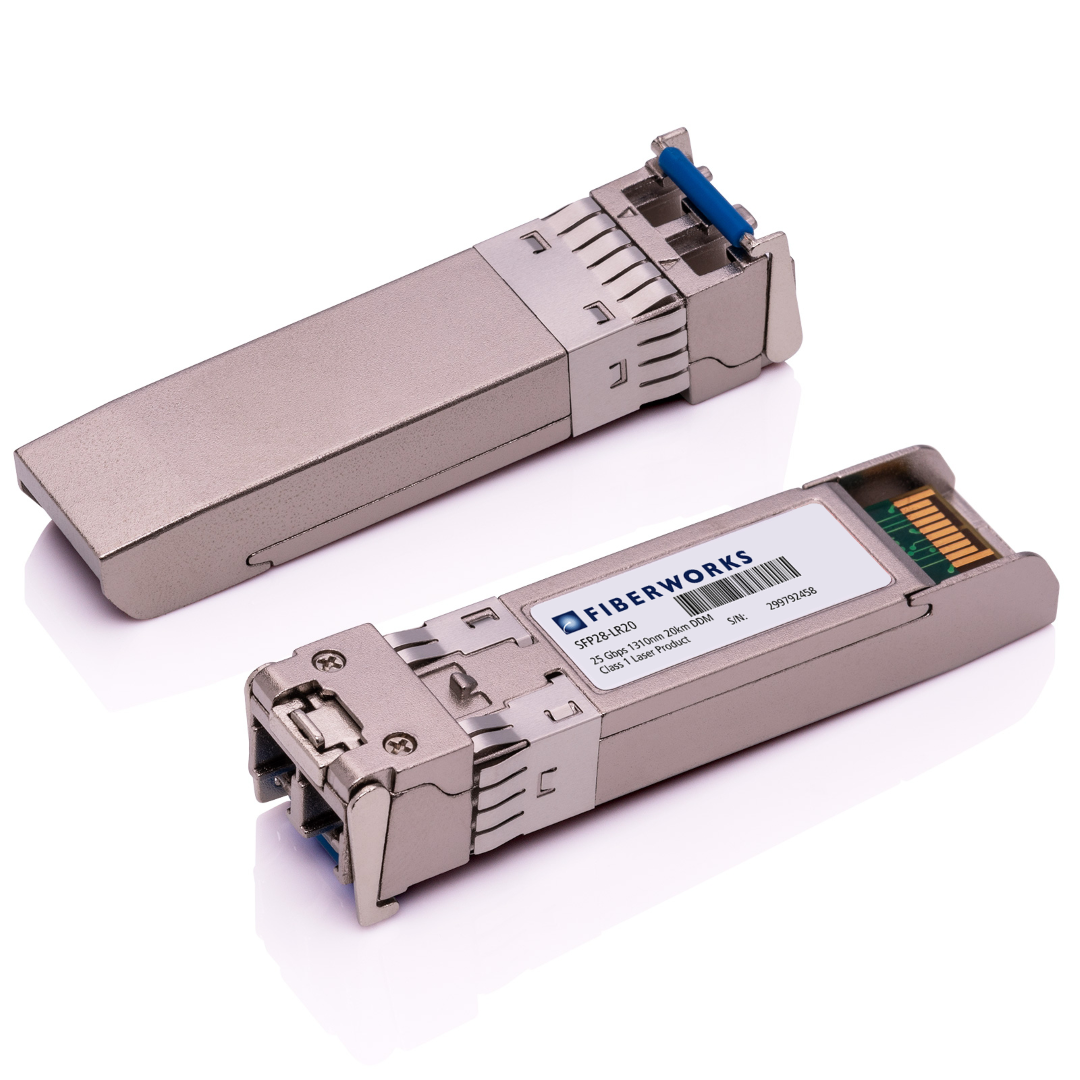

The SFP28 LR20 transceiver is a long range 25 Gbit/s pluggable optical module for data communications such as 25GBASE Ethernet.
The module is fully compliant with all SFP28 related MSA standards and Digital Diagnostic functions are available through an I2C interface. SFP28-LR complies with IEEE 802.3 and 25Gbase-LR.
APPLICATIONS
• 25GBASE-LR
• Data Center
FEATURES
• 20 km transmission at 1310 nm
• 13.5 dB link budget
• Hot-Pluggable SFP28 footprint LC Optical Transceiver
• Small Form-Factor Pluggable (SFP) MSA compatible
• SFF-8472 Digital Diagnostic Function
