Overview

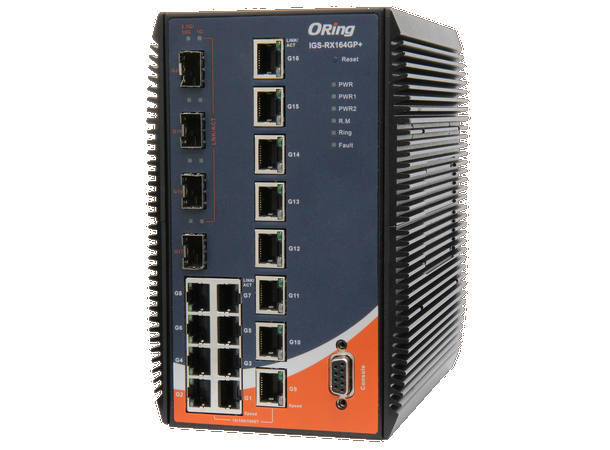

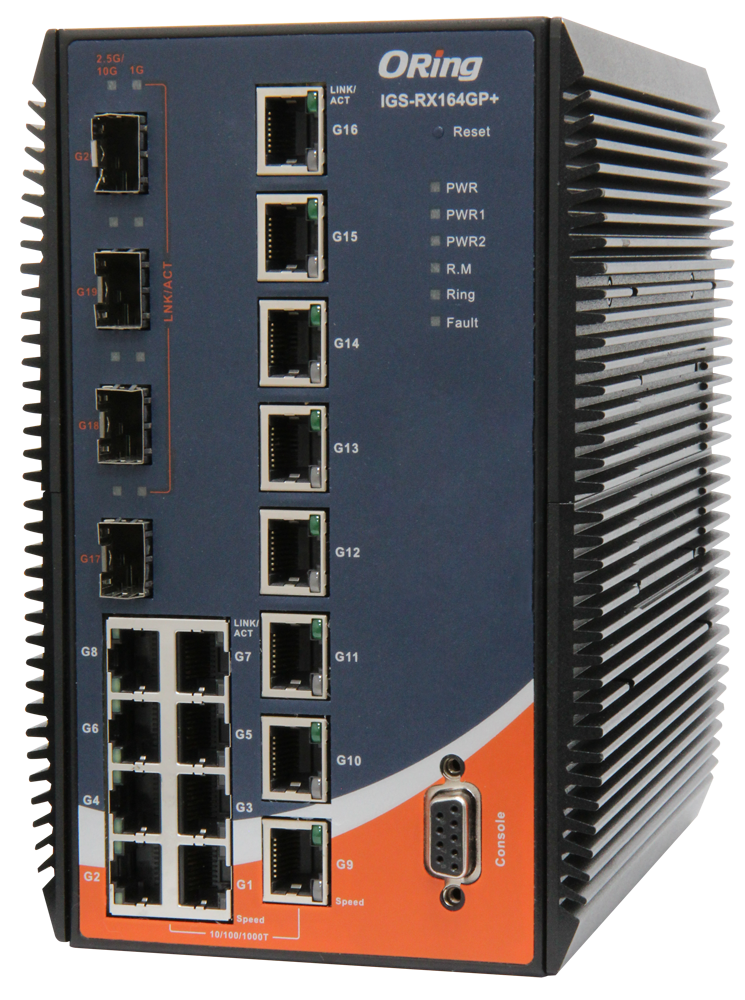

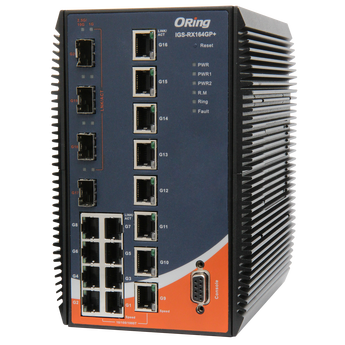

IGS-RX164GP+ advanced Layer 3 managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports and 4x10GBase-X SFP ports. The IGS-RX164GP+ supports routing protocols such as static routing, RIP v1/v2, OSPF and PIM which are suitable for large scale network environment. The hardware Layer 3 switch is optimized to transmit data as fast as Layer-2 switches. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40oC to 60oC. IGS-RX164GP+ can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Features
- Support routing protocols – Static routing, RIP v1/v2, OSPF, PIM-SM, PIM-DM, VRRP
- Support TSN freature - IEEE 802.1AS for timing & Synchronization, Qav, Qat
- Support O-Ring(recovery time < 30ms) andMSTP(RSTP/STP compatible) for Ethernet Redundancy
- O-Chain allow multiple redundant network rings
- Provided HTTPS/SSH protocol to enhance network security
- Support SNTP client Support application-based QoS management
- Support DOS/DDOS auto prevention
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Support ACL and 802.1x User Authentication for security
- Support 10K Bytes Jumbo Frame
- Multiple notification for warning of unexpected event
- Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
