Description
ORing’s CompactPCI series Ethernet switches are designed for industrial applications, such as factory automation, vehicle, and railway applications.

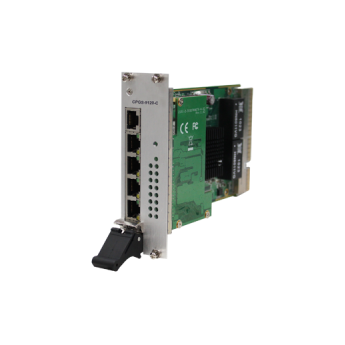

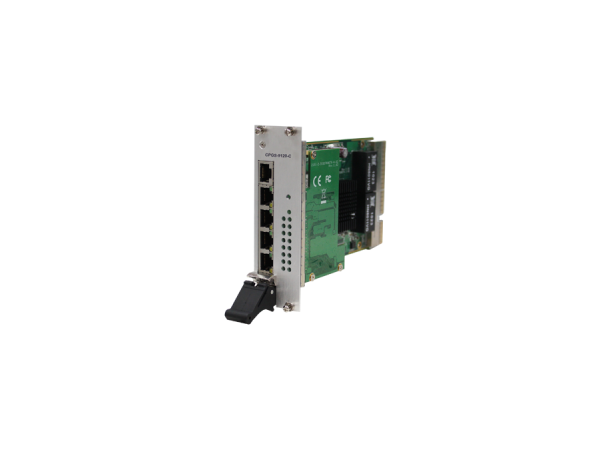

CPGS-9120-C is CompactPCI managed redundant ring Ethernet switch with 12x10/100/1000Base-T(X) ports in CompactPCI socket which is specifically designed for the toughest and fully compliant with EN50155 requirement. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
CPGS-9120-C supports wide operating temperature from -40°C to 70°C which can fulfill most of the requirement of operation environment. Besides the Web-based interface, Telnet and console (CLI) configuration, CPGS-9120-C can also be managed centralized and conveniently by Open-Vision. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Features
- Leading EN50155 compliant Ethernet switch for rolling stock application
- Supports 3U and 8HP CompactPCI form factor and hot swapping
- PICMG 2.0 specification compatible
- Support 8x10/100/1000Base-T(X) ports on CompactPCI sockets and 4x10/100/1000Base-T(X) ports on copper ports
- Support Jumbo frame up to 9.6K Bytes
- Supports O-Ring (recovery time < 30ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1s/w/D) for Ethernet Redundancy
- Open-Ring support the other vendor’s ring technology in open architecture
- O-Chain allow multiple redundant network rings
- Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
- Supports IPV6 new internet protocol version
- Support Modbus TCP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
