OVERVIEW

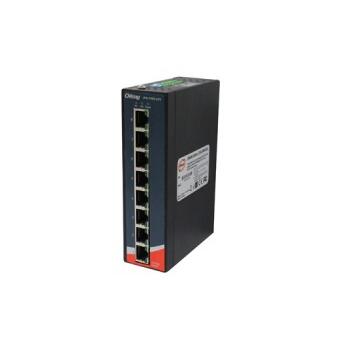

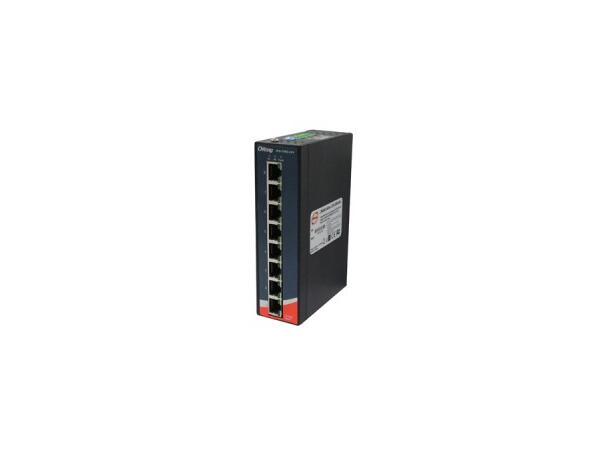

IPS-1080-24V is unmanaged PoE Ethernet switch with P.S.E. function. IPS-1080-24V supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-1080-24V switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
FEATURES
•Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
•Supports IEEE 802.3at compliant PoE and total power budget is 180Watts with maximum 30Watts per port
•Support auto-negotiation and auto-MDI/MDI-X
•Support store and forward transmission
•Support flow control
•Warning system by relay output
•Slim type rigid IP-30 housing design
•DIN-Rail and wall mounting enabled
