FEATURES
Serial Interface

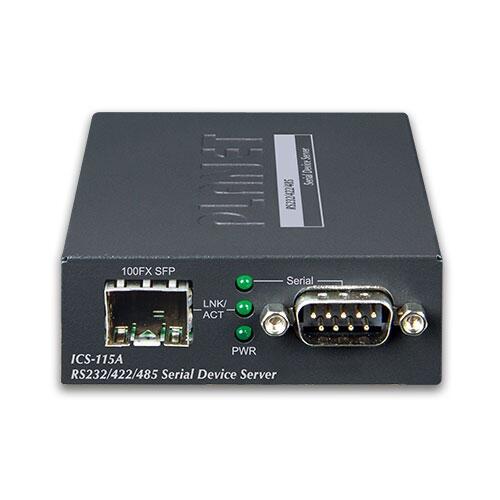

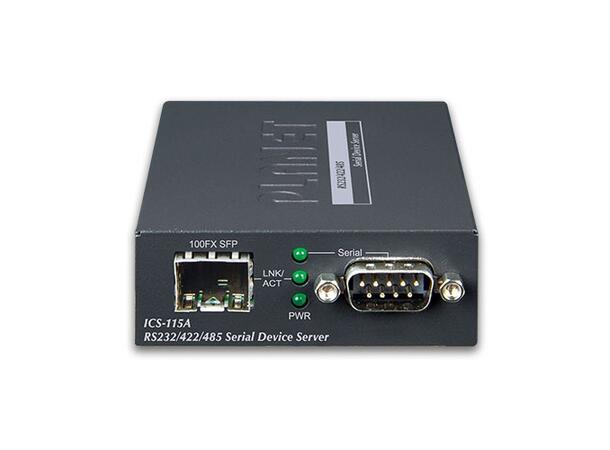

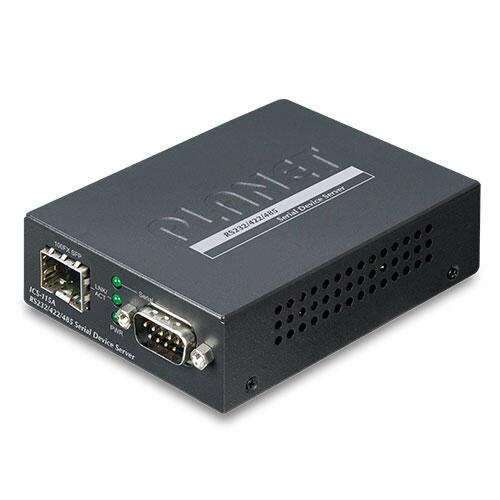

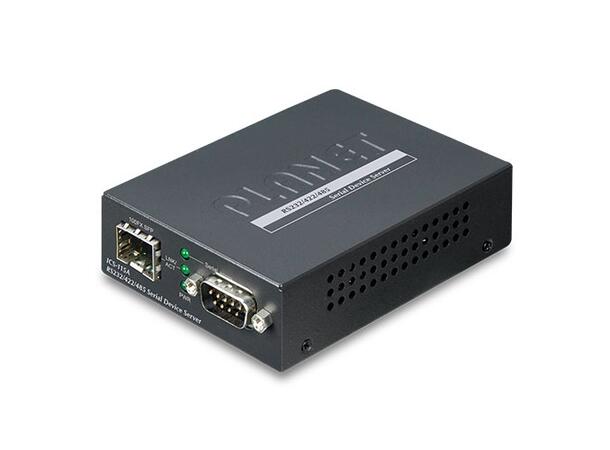

• One RS-232 / 422 / 485 port to one 100Base-FX Media Converter
• Cost-effective solution for RS-232 to Ethernet application
• Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
• Asynchronous serial data rates up to 921600bps Ethernet Interface
• Fast Ethernet SFP port, Complies with IEEE 802.3 100Base-FX standard
Ethernet Interface
• One Fast Ethernet SFP port
Management
• IPv4 and IPv6 dual stack management
• Remote Management Interfaces
- IP-based Web management
- Telnet console management
- Windows-based VCOM utility supports searching, monitoring and configuration setting
• IP NTP (Network Time Protocol)
• Standard TCP/IP interface and versatile operation modes
• Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
• Serial Operation mode selected via management interface
• Pair Connection mode for connecting two serial devices over a network
• Allows a maximum of 4 hosts to be accessed as TCP client mode
• Firmware upgrade via HTTP protocol
• Accessible IP security control to prevent illegal users
• Event notification
- Remote syslog server
- SNMP trap
• DHCP client for IP address assignment
• PLANET Smart Discovery utility automatically finds the client devices on the network
Case and Installation
• Compact size for easy Installation
- Standalone -- Wall mountable or DIN-rail mounting (optional accessory)
- Co-works with PLANET MC family Media Chassis (MC-700/1500)

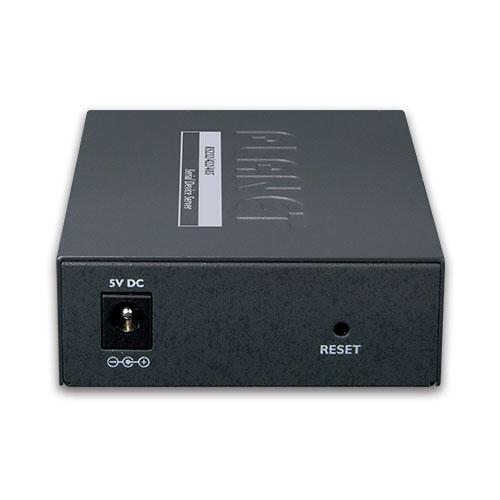

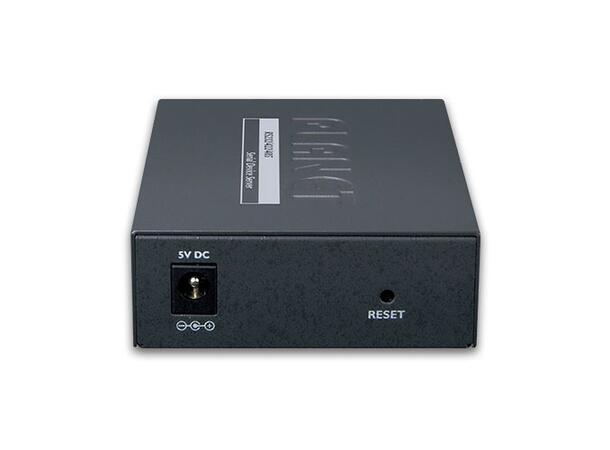

• External power adaptor 5V DC, 2A max.
• Supports 6000 VDC Ethernet ESD protection
-10 to 60 degrees C operating temperature
• Supports extensive LED indicators for network diagnosis
• Reset button for resetting to factory default
