Ruggedly Built for Harsh Environments

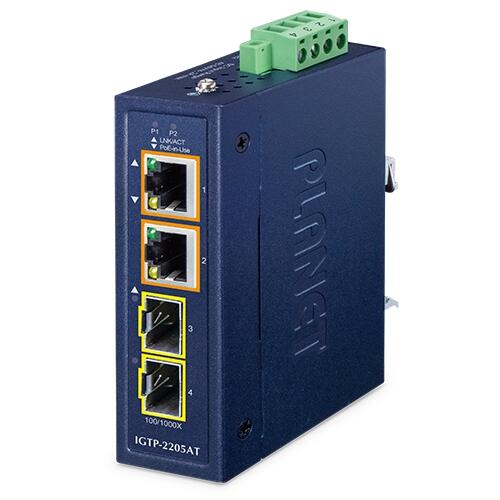

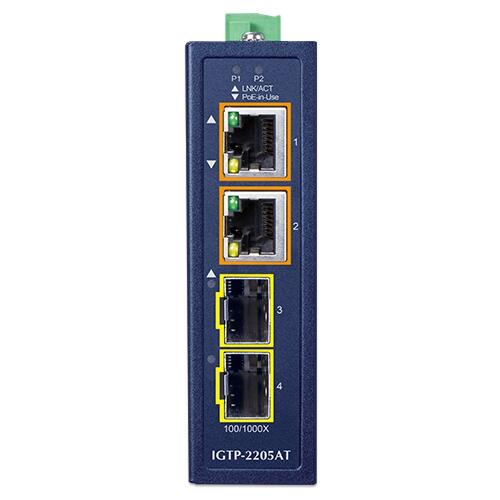

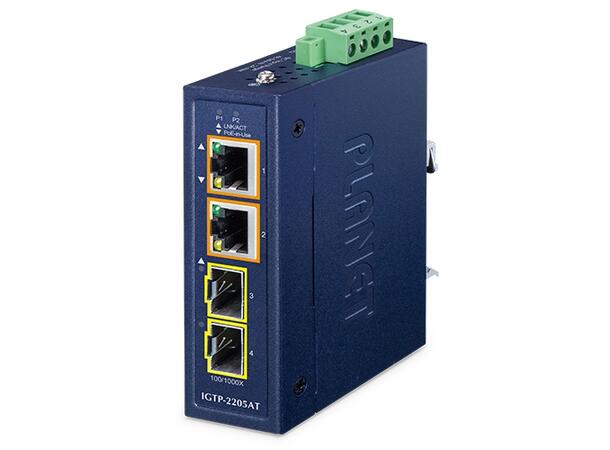

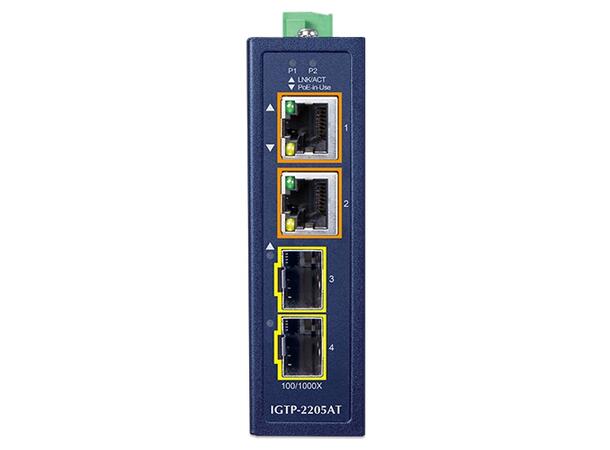

PLANET IGTP-2205AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring two 100/1000BASE-X SFP fiber ports and two 10/100/1000BASE-T 802.3at PoE+ copper ports in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-2205AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.
As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGTP-2205AT is designed to simplify industrial network deployment with its Plug and Play feature. Besides offering stable and reliable fast data and power transmission, it also aligns with the AIoT (Artificial Intelligence of Things) concept by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications.
IEEE 802.3at PoE Plus
Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-2205AT forwards Gigabit speed Ethernet data transmission and provides a total 60-watt power budget with a maximum of 30-watt power output per port over an additional 100m UTP cable to an 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.
Fiber-optic Link Capability Extends the Range of Network Deployment
The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-2205AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km or 240km with Daisy-Chain topology.
Dual Power Input for High Availability Network System

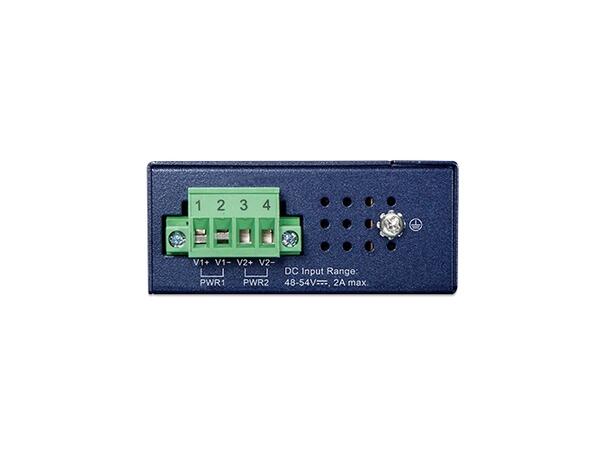

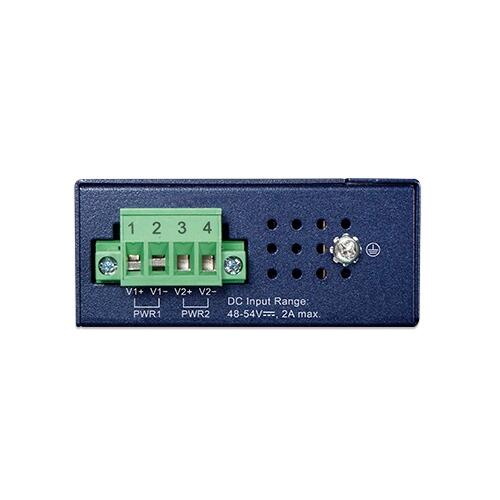

The IGTP-2205AT features a strong dual power input system with wide-ranging voltages (48V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. When Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGTP-2205AT via Power Supply 2 without any break of operation.
Environmentally Hardened Design
The IGTP-2205AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGTP-2205AT is ideal for service providers, campuses and public areas to deploy outdoor PoE wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.
Robust Protection
The IGTP-2205AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Flexible and Easy Installation with Limited Space
The compact sized IGTP-2205AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.
