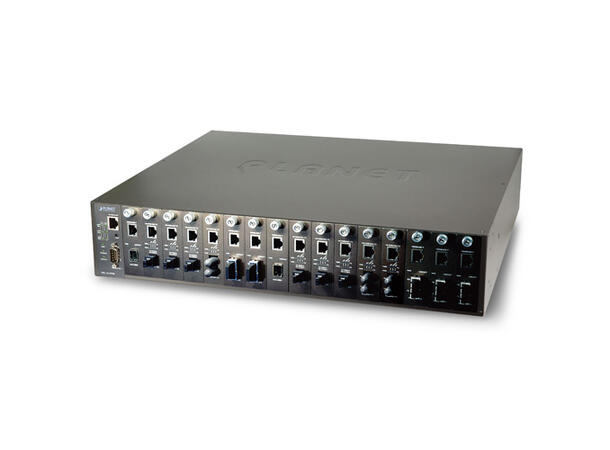

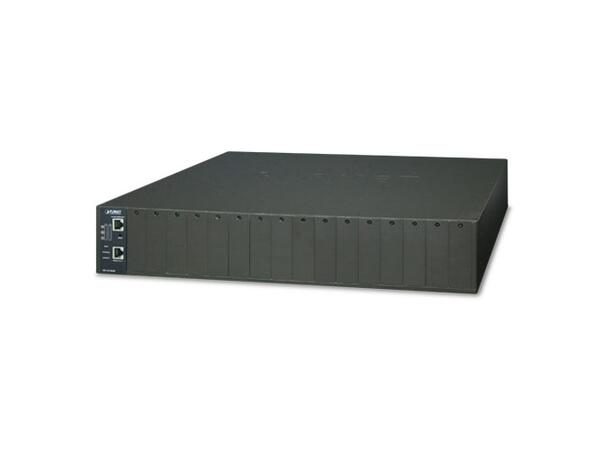

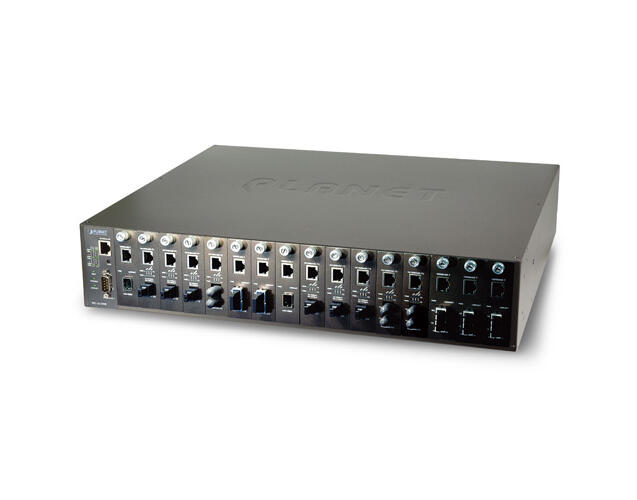

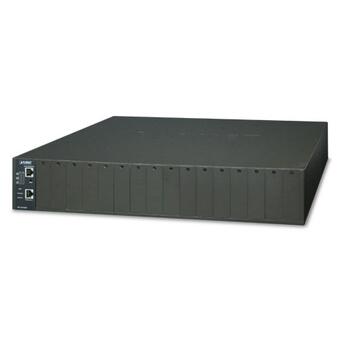

MC-1610MR 16-slot Managed Chassis, AC

for FST/GST/XST series media converters

Varenr: MC-PLANET-MC-1610MR
Alt. varenr: MC-1610MR
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehør
Beskrivelse

FEATURES

Hardware

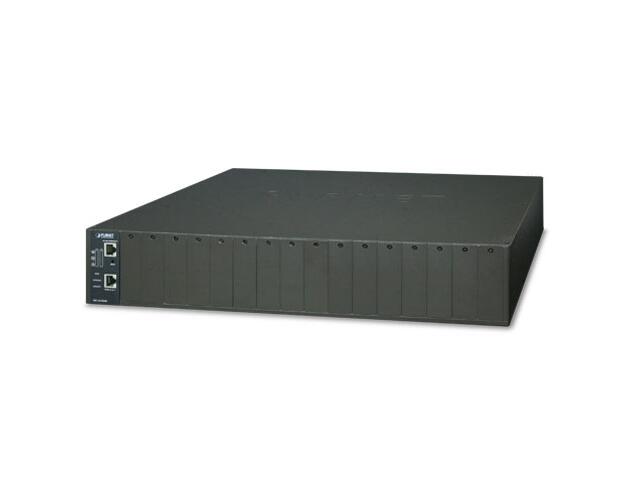

  • High quality 19" Rack-mountable chassis installation
  • Supports up to 16 sixteen hot-swappable slide-in modular Media Converter
  • Supports PLANET Fast Ethernet, Gigabit Ethernet and 10G Ethernet Smart Media Converter series-FST-80x and FST-81x / GST-80x / XST-705A

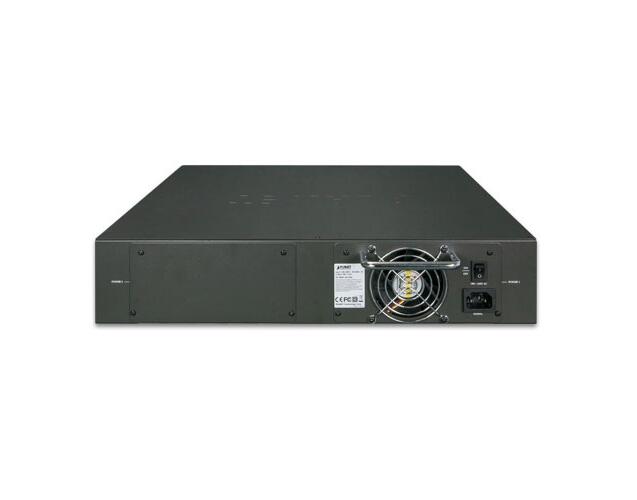

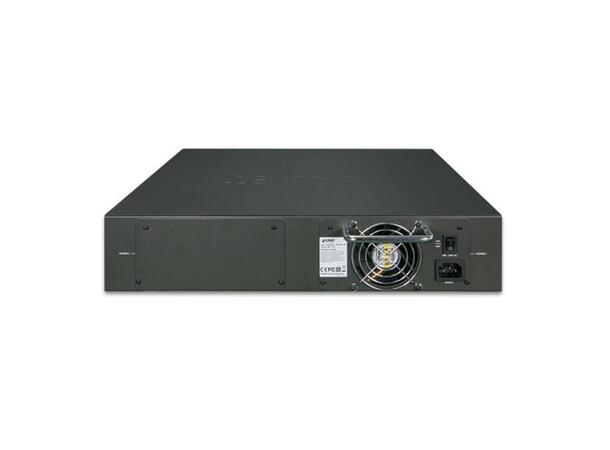

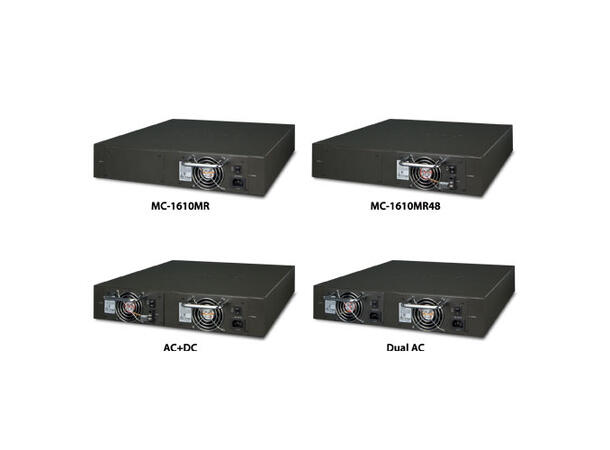

  • Two power slots on rear panel for redundant power support with options of 100~240V AC or -48V DC supplies
  • Bay power isolation ensure each bay is electrically isolated from each other
  • Up to two fans provided for better air-flow for system cooling
  • One 10/100Mbps Fast Ethernet port and one RS-232 port for management
  • Supports Auto-MDI / MDI-X for 10/100Base-TX port
  • LED indicators for system, power and fan status
  • EMI standards complies with FCC, CE class A



System Management

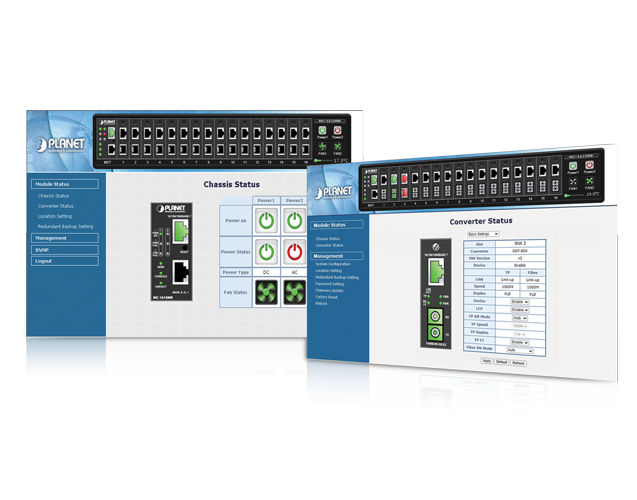

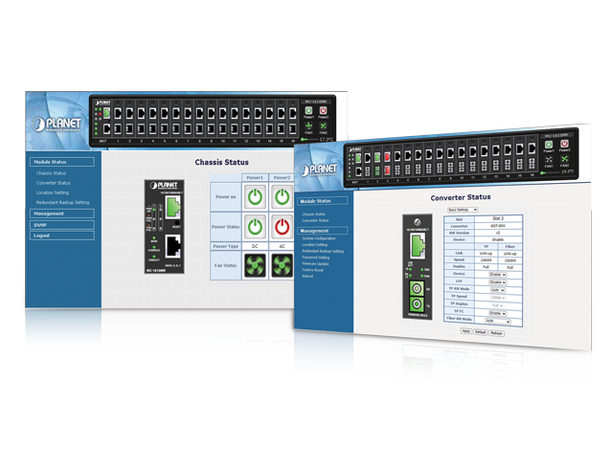

  • Configurable through console, Web and SNMP
  • Provides SNMP status of converters with trap functions for any chassis and connectivity event
  • Simple Network Management Protocol (v1, v2)
  • NTP Client (Time Zone Setting)
  • Remote Syslog and local System log
  • DHCP Client and DNS Client
  • Temperature detects display and alarm
  • Web Firmware Upgrade
  • Management account login session control
  • PLANET Smart Discovery Utility for deploy management



Converter Management

  • Provides media Link / Connection Speed Duplex status for each module
  • Redundant Back (Media Converter Link Redundant)
  • Reduces the effort of converter's maintenance and management



Basic Packaging

  •  Managed media converter chassis with one power supply installed x 1
  • Quick installation guide x 1
  • RS-232 to RJ45 console cable x 1
  • AC power cord x 1
  • Two rack-mounting brackets with attachment screws x 1

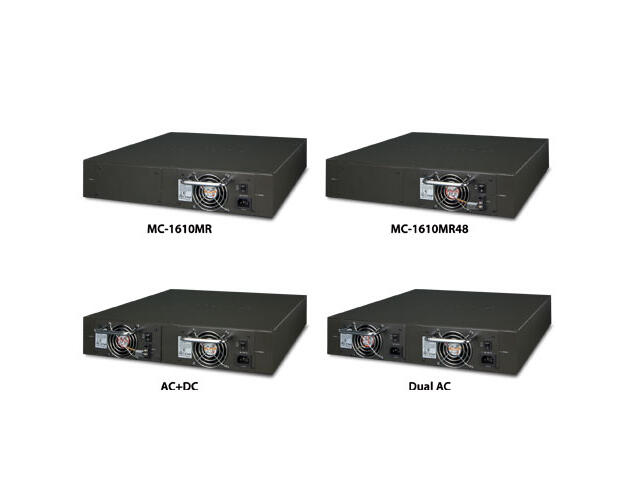

Note: Aslo available as 48VDC version, MC-1610MR48





Teknisk info

Produktinformasjon

Strømforsyning 230V AC (direkte)
