Egenskaper

• Compatible with both GPON and EPON fiber networks
  • GPON and XG(S)-PON test applications
  • EPON and 10G-EPON test applications
• 3 models available:
  • 2 ? non-pass-through/terminated DS: 1490/1577nm (FX81T)
  • 4 ? pass-through DS: 1490/1577nm, US: 1310/1270nm
  • 5 ? pass-through DS: 1490/1550/1577nm, US: 1310/1270nm

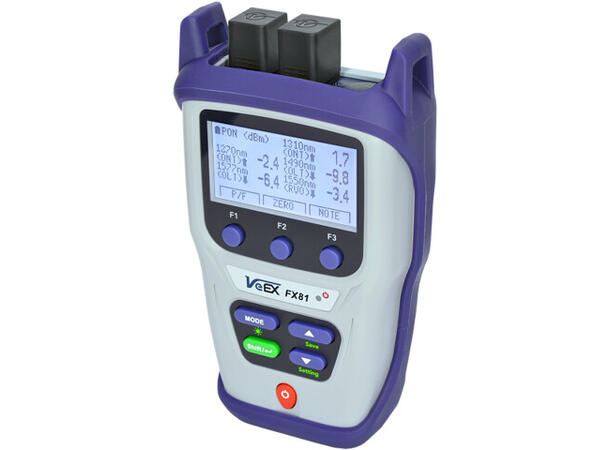

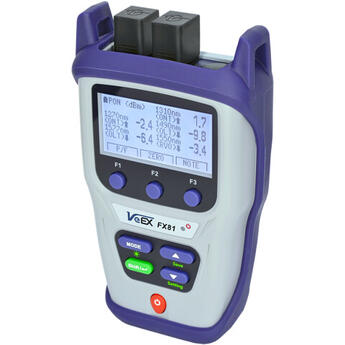

• Concurrent measurements display

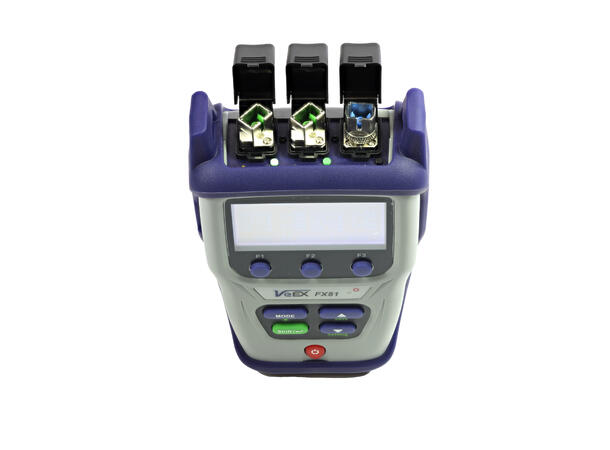

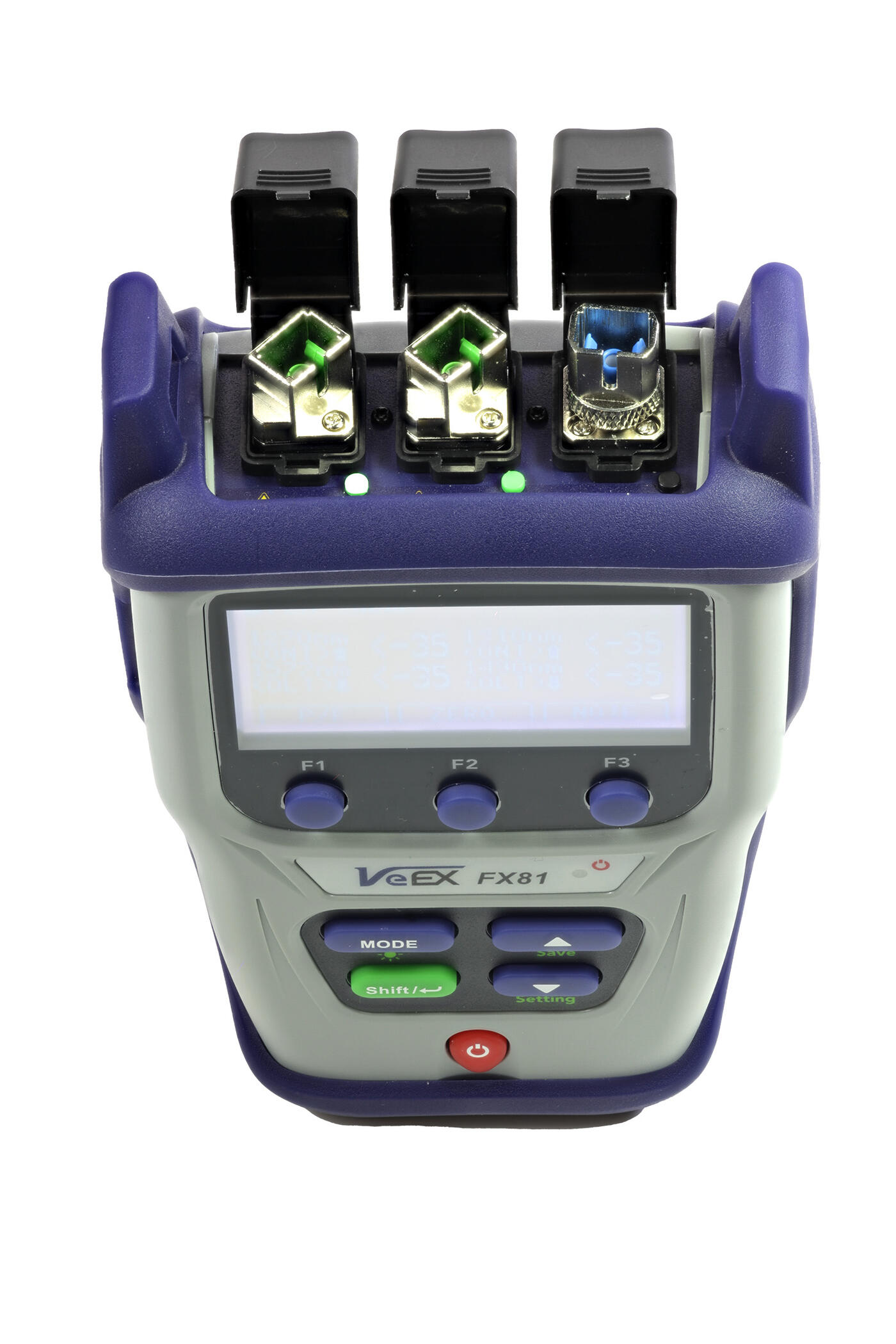

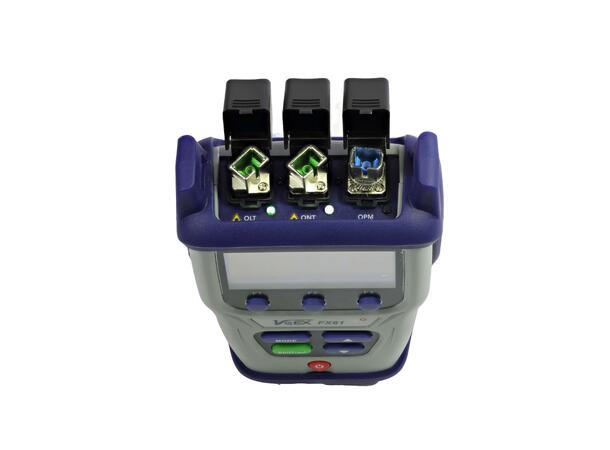

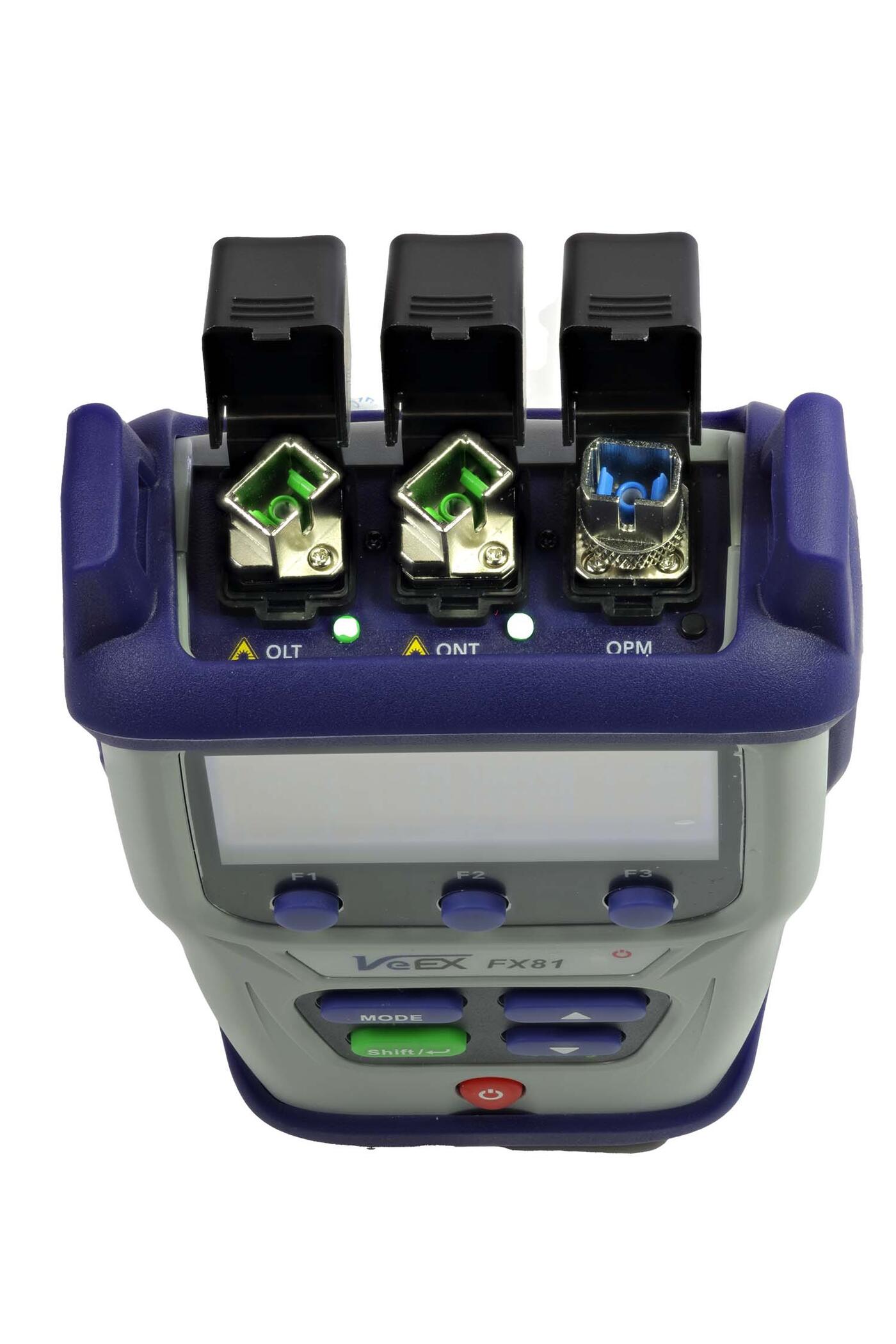

• Fixed SC/APC Interface for ONU and OLT test ports
• Programmable thresholds with Pass/Fail indication
• Optional broadband power meter with universal adapters
  • WaveID support when paired with compatible VeEX source
• Non-volatile storage for 1920 measurements
• Flexible data transfer, test result management and report generation options using:
  • LT-Sync PC software (microUSB or optional Bluetooth)
  • Fiberizer™ Mobile OLTS software (microUSB or Bluetooth)
  • Fiberizer™ Desktop Plus or Fiberizer™ Cloud

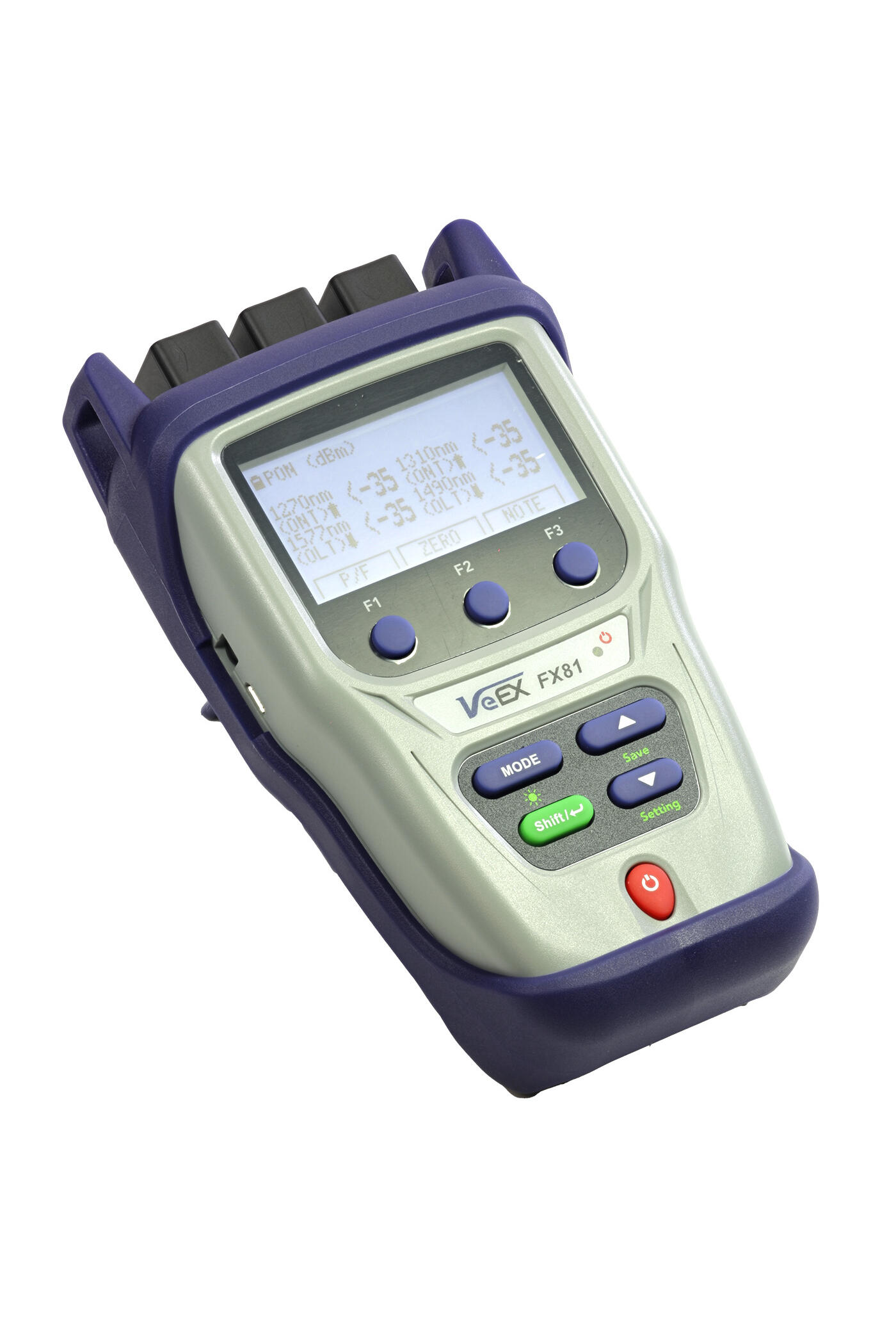

• High contrast LCD - visible outdoors, programmable backlight for indoor or low light conditions
• Battery: Built-in, rechargeable Li-polymer
• Battery operating time (with backlight):
  • FTTx PON mode: >25 hours

Spesifikasjoner

• Wavelength-selective level measurements:
• GPON per ITU-T G.984.2
• XG(S)-PON per ITU-T G.9807.1
• EPON & 10G-EPON per IEEE 802.3av
• RF video (RVO)
• Calibrated wavelengths
• GPON and EPON: 1310/1490 nm
• XG(S)-PON and 10G-EPON and 1270/1577 nm
• RF video (RVO): 1542 to 1562 nm
• xPON Power Measurement range (Pass-through):
• Burst mode at 1270 and 1310 nm: -35 to +10 dBm
• CW mode at 1490 and 1577 nm:
• -40 to +12 dBm for 4WL and 5WL
• -45 to +13 dBm for 2WL
• RF video (RVO) at 1550 nm: -40 to +25 dBm
• Pass-through Insertion Loss: =1.5 dB
• Optical Return Loss @ 1550 nm: =55 dB
• Display resolution: 0.1 dB
• Optional Broadband Optical Power Meter (BB-OPM)
• Calibrated wavelengths (nm): 850/1300/1310/1490/1550/1625/1650
• CW measurement range (dBm): -50 to +25
