Intelligent Ethernet Loopback Device Intelligent Ethernet Loopback Device

Intelligent Ethernet Loopback Device

Varenr: VX-MLX100
Alt. varenr: Z03-00-008P
Datablad / mer produktinformasjon
Beskrivelse
Beskrivelse

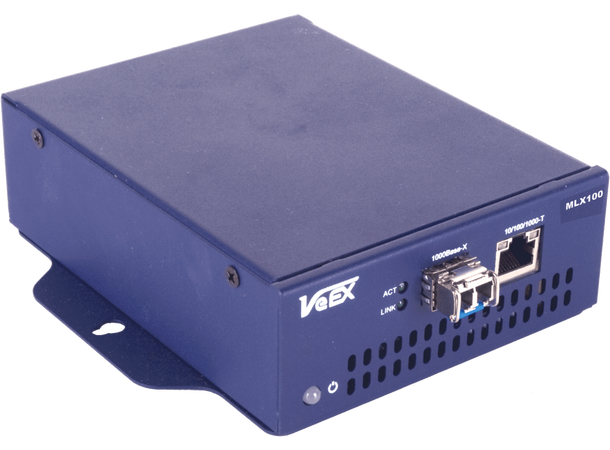

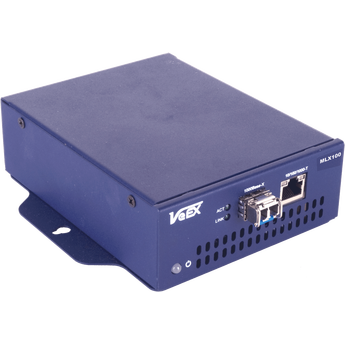

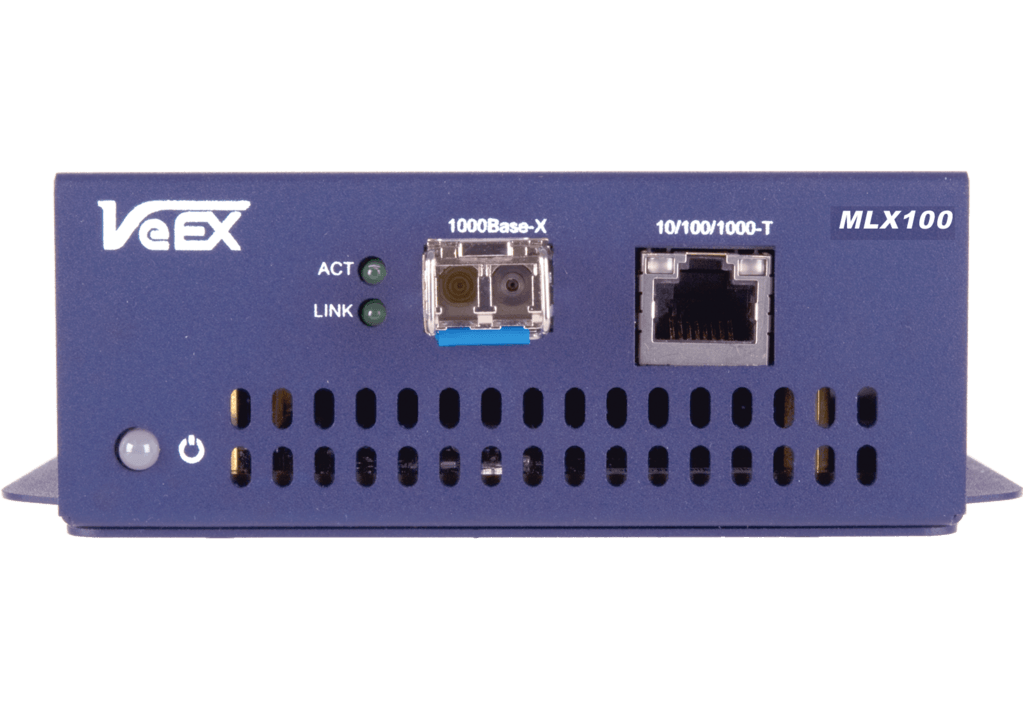

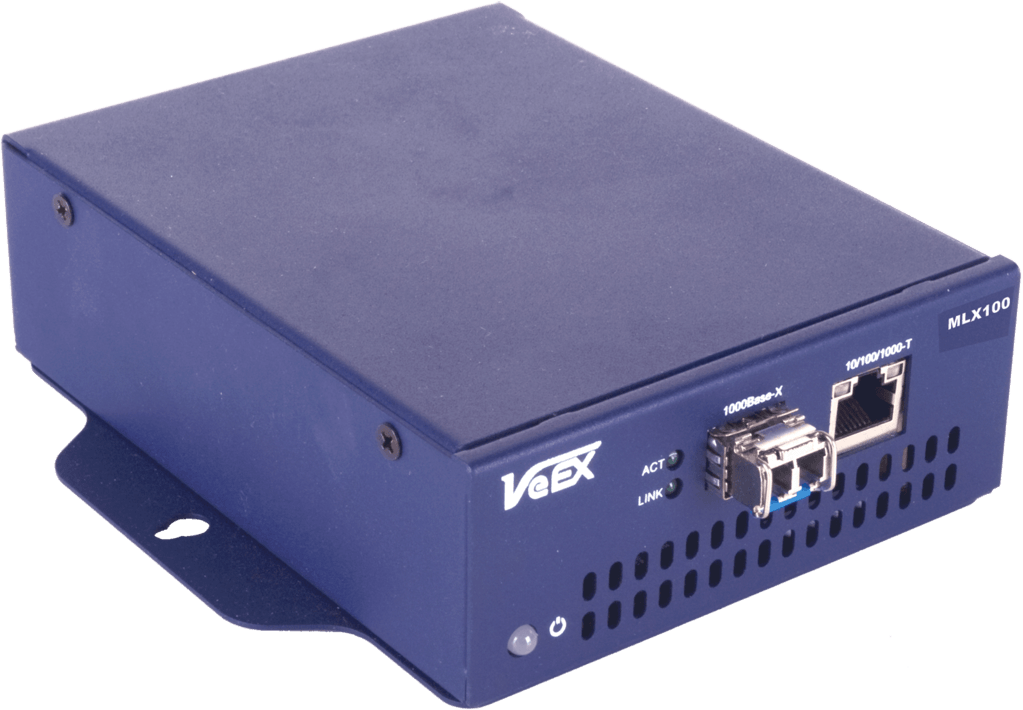

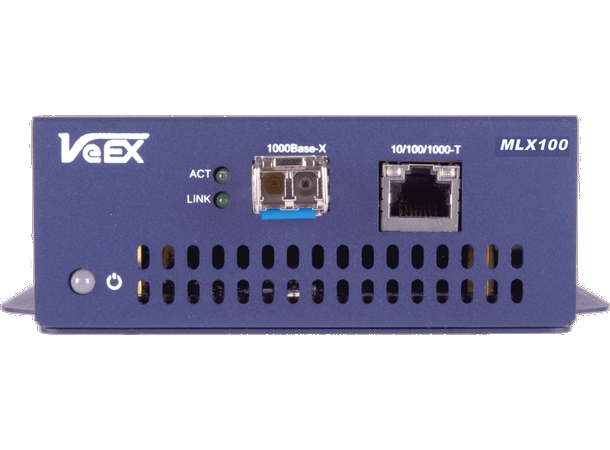

MLX100

Next Generation of Metro and Carrier Ethernet Testing

VeEX™ MLX100 Metro Loopback Expert is an intelligent Ethernet loopback device developed as a perfect companion to the MX100+, MX120+, MX300, and TX300 products. Loopback control can be performed in-band or via the built-in 10/100Base-T Ethernet port via an Internet connection. When paired with the compatible MX/TX series, the MLX100 is the industry’s most costeffective solution for point-to-point Service Level Agreement (SLA) verification and end-to-end performance testing.



Key Features

  • Low cost Ethernet loopback device for testing end-to-end network performance when paired with MX100+, MX120+, MX300, TX300, or 3rd party Ethernet testers
  • Ideal for testing transparent, switched, routed, and next generation carrier grade Ethernet networks
  • 10/100/1000Base-T Electrical port (IEEE802.3), RJ45
  • 1000Base-X Optical port supporting hot swappable, MSA compliant SFP transceivers
  • BERT, RFC2544 and Throughput application eliminating the need for an expensive remote test partner
  • Smart Loop mode for Layer 1, Layer 2, Layer 3, and Layer 4
  • Intelligent device Discovery mode
  • In-band loopback control; accepts loopback commands from MX100+, MX120+, MX300, or TX300
  • Out-of-band operation via 10/100Base-T Ethernet management port and ReVeal software
  • Activate a loopback profile from a remote location
  • Default loopback profile storage for fast and easy loopbackready boot-up
  • RS232 supervisory port to configure IP address
  • Remote control capability and loopback profile creation/upload through ReVeal PC software



General Specifications

Størrelse 45 x 110 x 140 mm
Vekt Mindre enn 1 kg
AC strømforsyning 100-240VAC 50/60Hz/ 15VDC, 3.5A
Temperatur drift -10 °C to 50 °C
Temperatur lagring -20 °C to 70 °C
Luftfuktighet 5% til 95% ikke-kondenserende
Grensesnitt USB2.0, 10/100/1000Base-T Ethernet RJ45, 1000Base-X SFP port
