VeEX RXT-6200 100G CFP4, 2xQSFP28

RXT-1200+ Platform, Ethernet

Varenr: VX-RXT-6200-100G-1

Trykk på Tilbud-knappen over eller ring oss på 23 03 53 30 for å få et pristilbud på dette produktet.

Beskrivelse
Beskrivelse

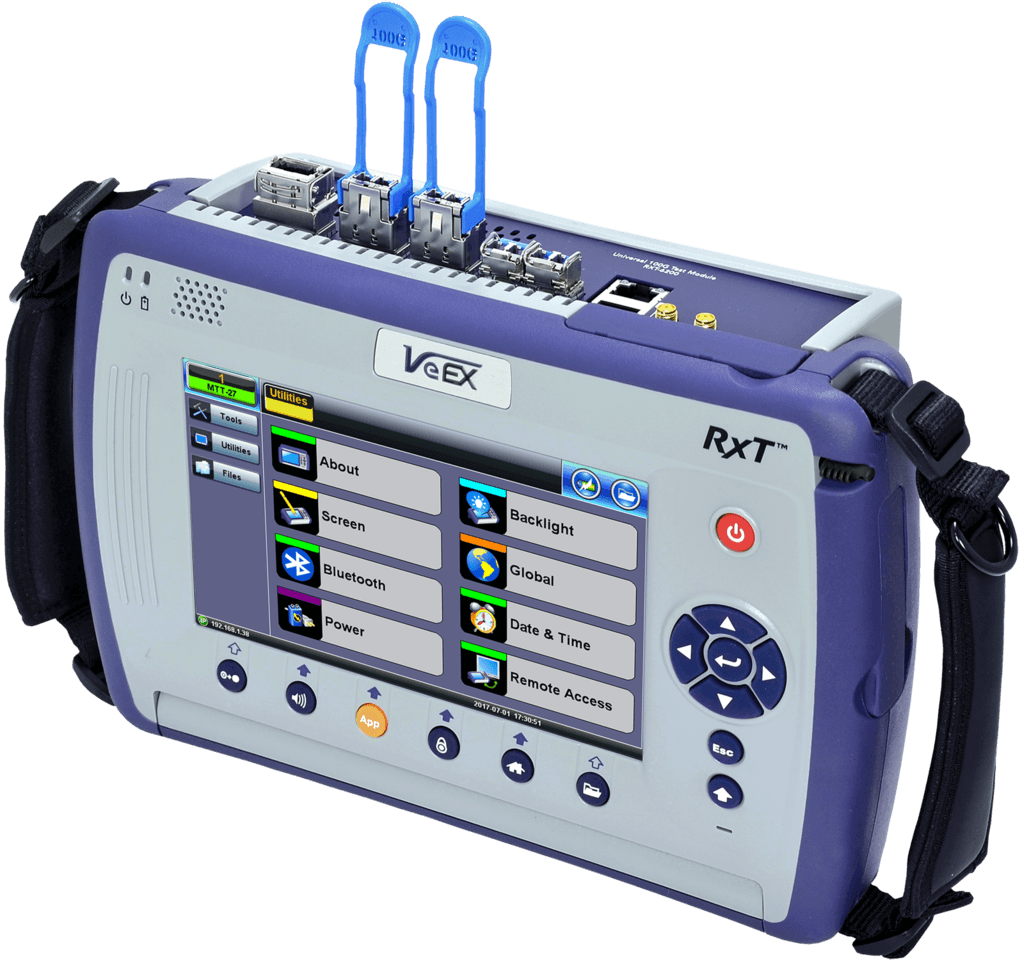

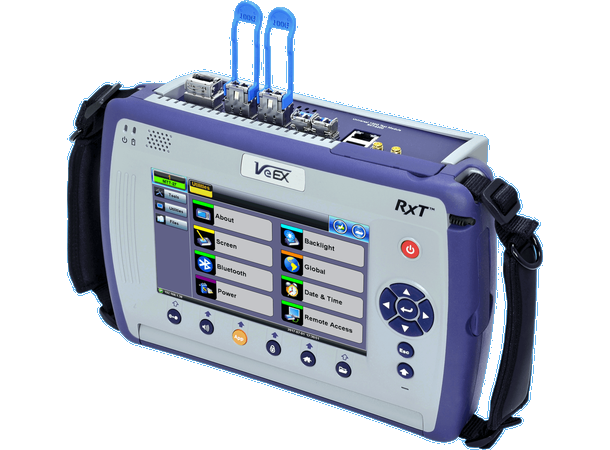

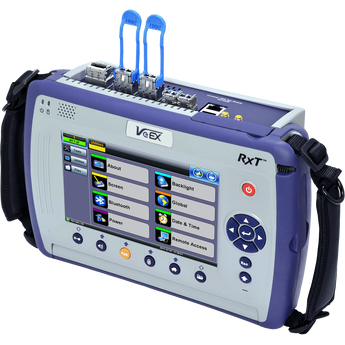

RXT-1200 platform m/ RXT-6200 100G Universal Module

RXT-1200/6200 er det mest komplette og fleksible 100G testinstrumentet på markedet i dag. Utstyrt med grensesnitt for de mest vanlige transceiver-typer og "legacy" test-grensesnitt komplementerer denne modulen perfekt RXT-plattformen og utvider test-området til 100Gbps . To 100GE tester kan kjøres samtidig.

Installasjon, kommisjonering og vedlikeholdsoppgaver forenkles takket være kombinasjonen av et intuitivt brukergrensesnitt og kraftige testfunksjoner. Mindre øvede brukere får en fordel takket være den enkle GUIen mens mer erfarne brukere vil sette pris på en rekke mer avanserte funksjoner som OTL/PCS, CAUI-4/XLAUI Lane BERT, overhead monitor/control, Tandem Connection Monitoring, Service Disruption, Protocol Capture/Decode, BERT, Throughput test, samt mye mer.

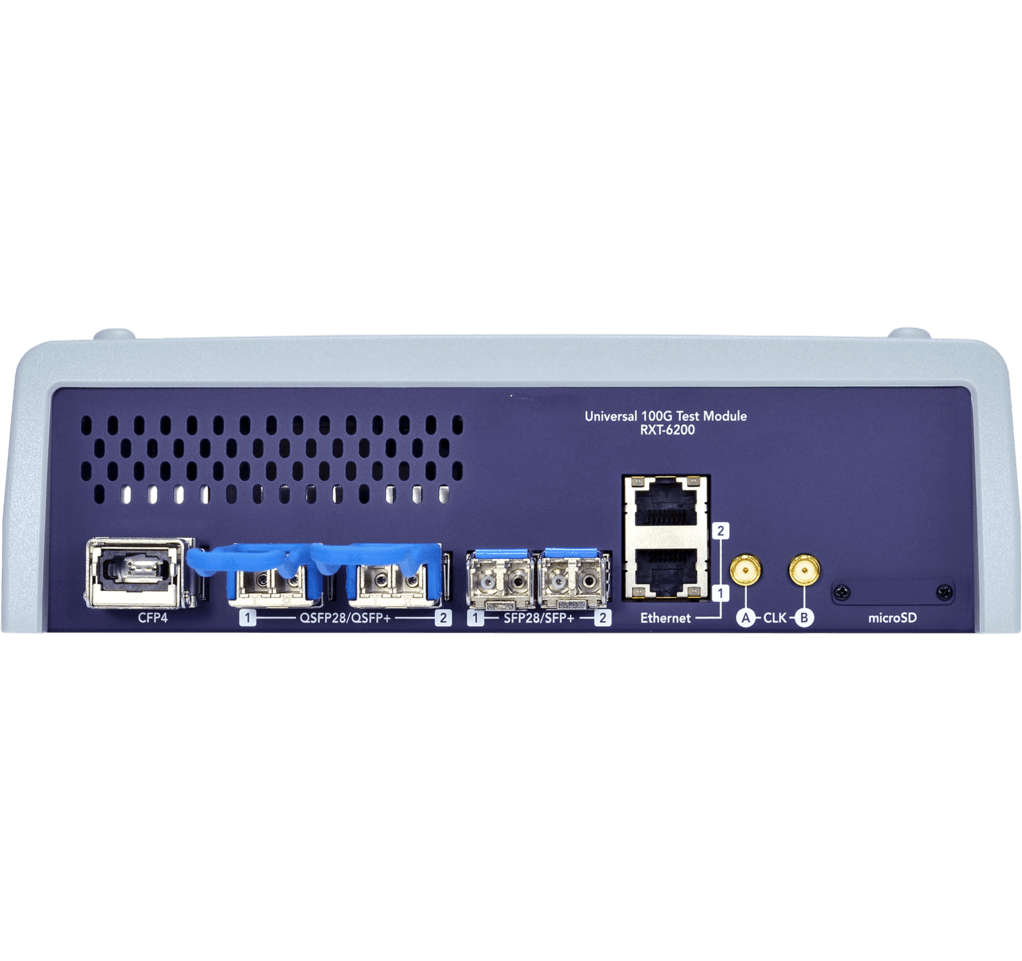

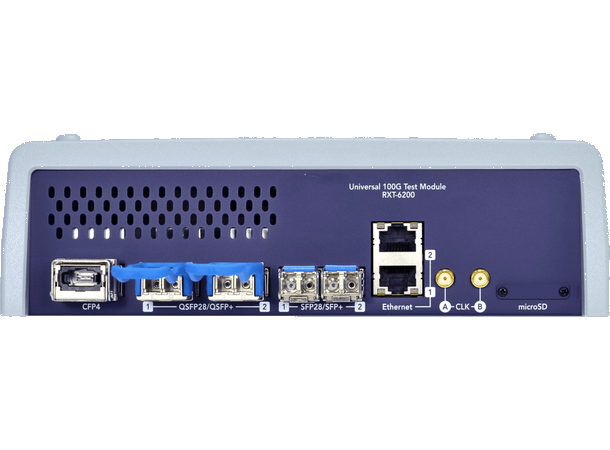

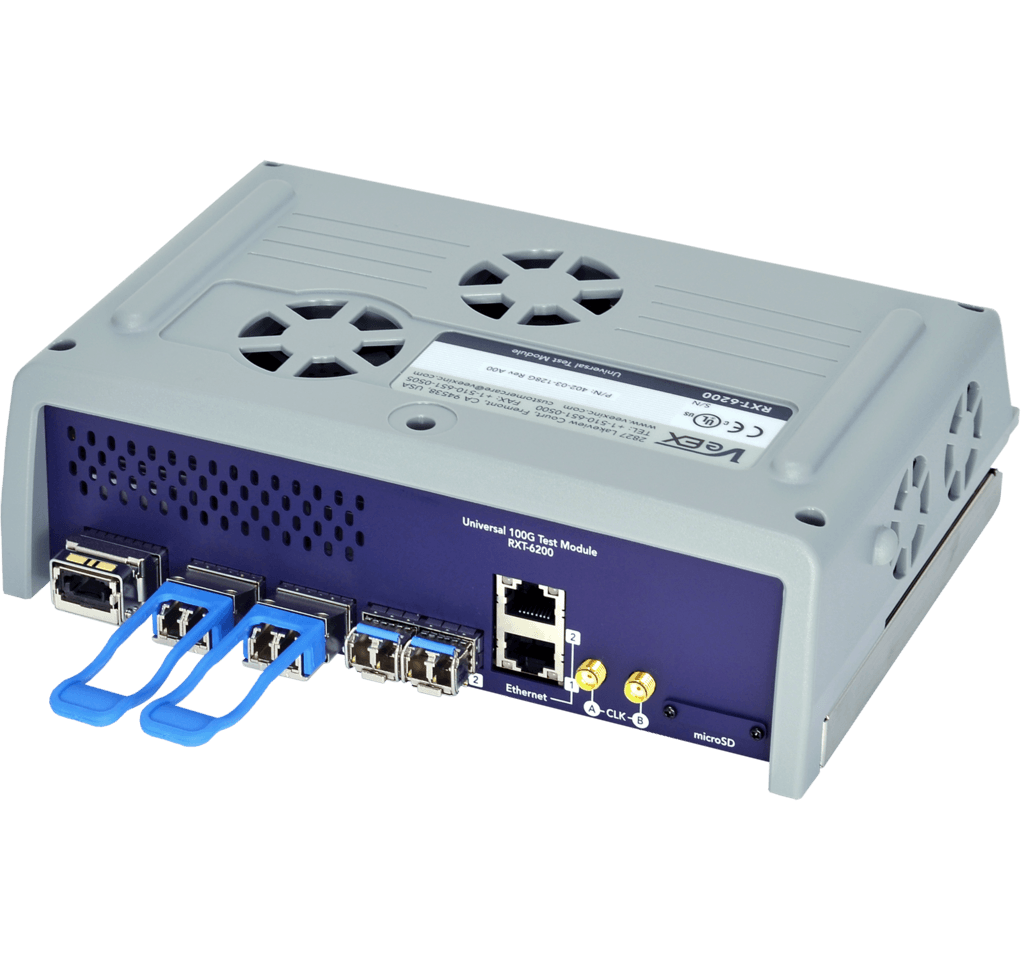

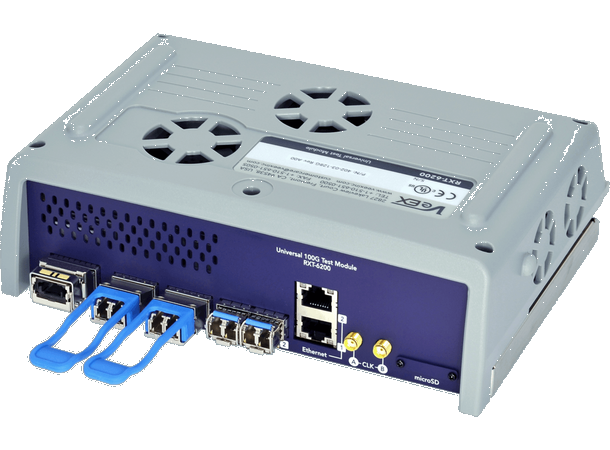

  • RXT-6200 Universal 100G Test Modul. 1x CFP4, 2x QSFP28/QSFP+, 2x SFP28/SFP+, 2x RJ45, 2x SMA Ext. Clock In, 2x SMA Recovered Clock Out test porter. Hardware support for Ethernet, SyncE, 1588v2/PTP, Fibre Channel¹, CPRI¹, eCPRI¹, OTN¹, SDH/SONET², Advanced Optical Transceivertesting, og valgbar PDH/DSn² hardware. (Software-opsjoner og optiske transceivere selges separat.)
  • WiFi Wiz, inkluderer USB WiFi 802.11b/g/n 2.4G og Bluetooth Adapter
  • 1/10GE bundle, inkluderer 10/100/1000Base-T, 100Base-FX, 1000Base-X og 10GE LAN/WAN BERT, Throughput, Loopback, RFC2544 og Y.1564
  • 100GE Bundle, inkluderer BERT, RFC2544, Throughput, Y.1564, Optical Lane BERT, Loopback, PCS Analysis, Multiple Stream, IP Connectivity og IPv6
  • Advance Optical Transceiver Test Suite: QSFP28/QSFP+, SFP28/SFP+ module testing. Includes Voltage Sweep, Freq. Offset Sweep, BER, and I2C read/write.

¹ Kan utvides til å støtte FibreChannel, CPRI, OTN, OTU versjoner, 25G, 40G, MPLS med mer. Se data-ark for fullstendige spesifikasjoner og software-opsjoner.

² Kan utvides med hardware opsjon for SDH/PDH og SONET/DSn Electrical Interface.



Ta kontakt for riktig oppsett og pris for dere.





Produktinformasjon på engelsk:

General

  • Independent Dual-Port testing, up to 2x 112G
  • CFP4 (LR4 & SR4) and QSFP28 interfaces for 100GE, OTU4 and 50GE applications
  • Supports IEEE 802.3bj Clause 91 RS-FEC as required for SR4
  • QSFP+ for 40GE, OTU3
  • SFP28 interface for 25GE, 32/16G FC, 24G CPRI 10 and 25G eCPRI Layer 4 with RS-FEC
  • SFP+ for 100Base-FX, 1000Base-X, 10GEBase-X, OTU2/2e/1e/1, STM-64/16/4/1/0, OC192/48/12/3/1, and Fibre Channel 16/10/8/4/2/1G and CPRI up to 12G
  • RJ45 for 10/100/1000Base-T applications

Ethernet Testing

  • Optical 100 Mbps to 100 Gbps Ethernet testing, including 25GE and 50GE
  • Electrical 10/100/1000 Mbps Ethernet testing
  • Dual-port testing capabilities
  • Optical Lane BERT and CAUI-4/XLAUI Lane BERT
  • PCS Layer Testing with Skew generation/monitoring
  • Multi-stream testing up to 32 independent streams
  • IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, and MPLS-TP OAM support
  • RS-FEC support for SR4 and SR10 transceivers
  • Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB, EoE support
  • MAC flooding
  • RFC2544 and V-SAM (Y.1564) testing
  • IPv4 and IPv6 traffic generation
  • BERT and Throughput testing at Layer 2 and Layer 3
  • Smart Loopback mode for Layer 2 and Layer 3
  • One-Way-Delay latency measurement (GPS assisted)
  • Line rate packet capture with Wireshark™ decode
  • Error and Alarm Injection

CPRI Testing

  • Common Public Radio Interface standard (CPRI) link performance verification
  • Supports all Rate Options up to CPRI 10 (from 614.4 Mbps to 24.33 Gbps) per CPRI Specification v7.0
  • Layer 2 Framed BER testing with PRBS stress patterns
  • REC/BBU (master) and RE/RRH (slave) emulation
  • Latency measurements
  • Dual-port operation and bi-directional monitoring mode
  • CPRI Hyperframe Capture

eCPRI Testing

  • 25G eCPRI
  • Dual-port testing capabilities
  • RS-FEC support
  • Multi-stream testing up to 32 independant streams
  • Throughput testing at Layer 2 and Layer 4
  • IPv4 and IPv6 support
  • Q in Q (VLAN stacking) and MPLS support
  • High accuracy One-Way-Delay latency measurement (GPS assisted)
  • Line rate packet capture

Fibre Channel

  • Storage Area Networks (SAN) testing for 1G, 2G, 4G, 8G, 10G, 16G and 32G interfaces
  • BERT and Throughput test
  • RFC2544: Throughput, latency, frame loss, back to back tests Layer 1 and layer 2 loopbacks

OTN Testing

  • OTN testing for OTU1, OTU2, OTU1e, OTU2e, OTU3 and OTU4
  • Complete multi-stage Mapping/Multiplexing
  • Advanced multi-step Map/Mux with SDH/SONET/PDH/DSn test payloads*
  • Ethernet over OTN (EoOTN)
  • ODUflex into ODU2, ODU3 and ODU4 with Bulk payload
  • Service Disruption Time (SDT)
  • Tandem Connection Monitoring
  • Overhead monitoring and generation
  • Terminate, Payload Through and Line Through test modes
  • Per-lane optical power and frequency measurements
  • External clock reference interface
  • Histogram Analysis

SDH/SONET Testing

  • Available as Line Rate or mapped into OTN payloads
  • STM-0 to STM-64 and STS-1/OC-1 to OC-192
  • Advanced multi-step Map/Mux with PDH/DSn test payloads
  • Test payload multiplexing down to VC11/VT1.5 and internally generated PDH/DSn tributaries

PDH/T-Carrier Testing

The test set provides optional legacy SDH/SONET/PDH and DSn test interface capabilities and sub-rates from 155M (STS3/STM1), 55M, (STS1/STM0), 140 Mbps (E4), 34 Mbps (E3), 2 Mbps, 45 Mbps (DS3), 1.5 Mbps (DS1), and G.703 64k codirectional.
