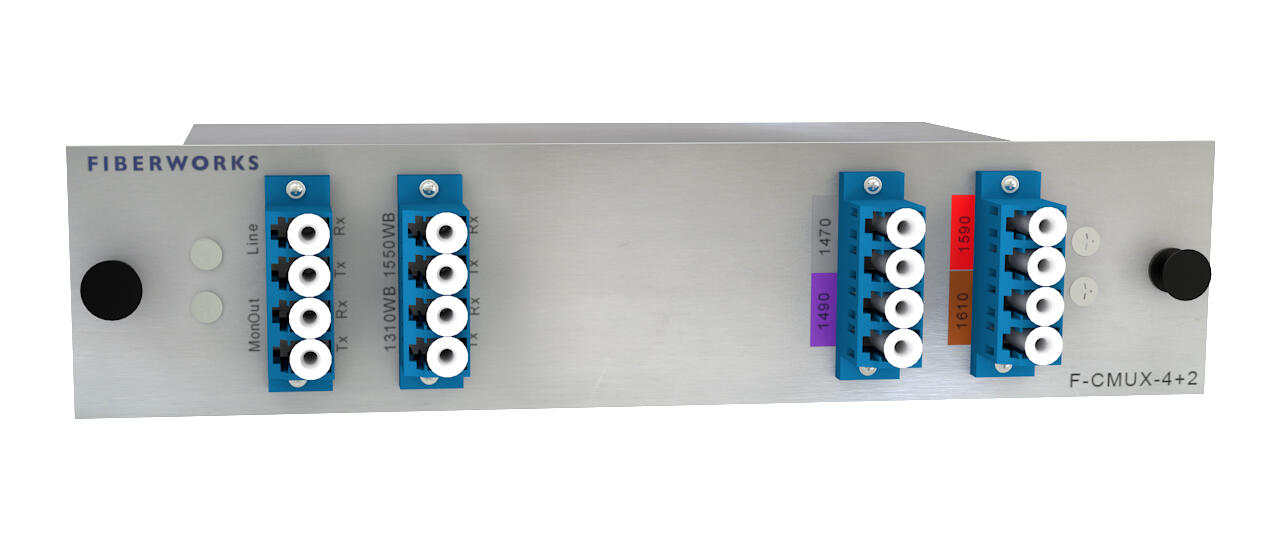

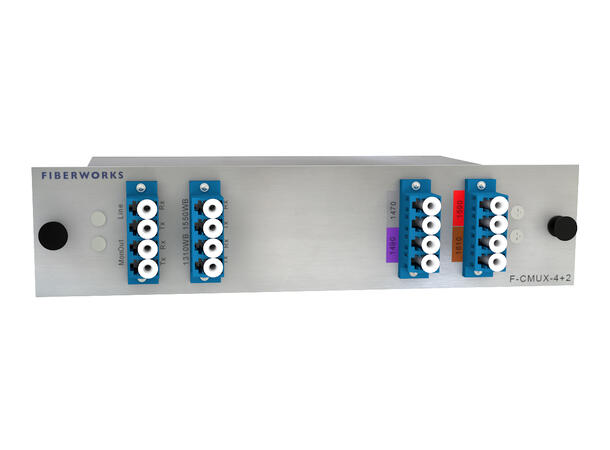

F-CMUX-4+2-4761-MLU Fiberworks AS Fiberworks 4+2 ch. CWDM Mux+Demux 4 CWDM ch + 1310 & 1550 nm WB, Mon.ports

Fiberworks 4+2 ch. CWDM Mux+Demux 4 CWDM ch + 1310 & 1550 nm WB, Mon.ports

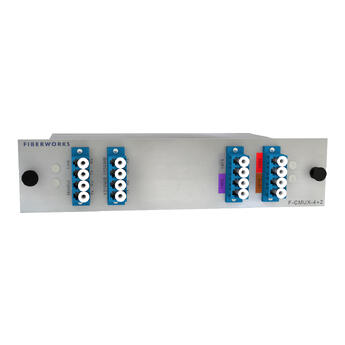

Fiberworks 4+2 ch. CWDM Mux+Demux

4 CWDM ch + 1310 & 1550 nm WB, Mon.ports

Varenr: F-CMUX-4+2-4761-MLU

Datablad / mer produktinformasjon

Beskrivelse

APPLICATIONS

- CWDM in combination with legacy 1310 and/or 1550 nm traffic

- CWDM in combination with active DWDM including OSC.

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

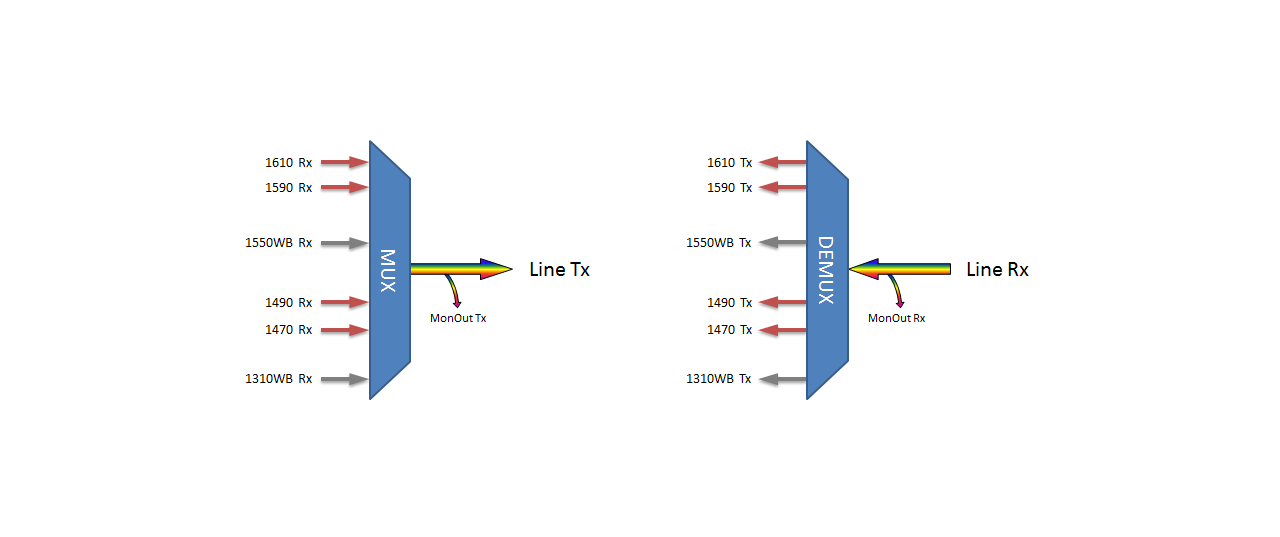

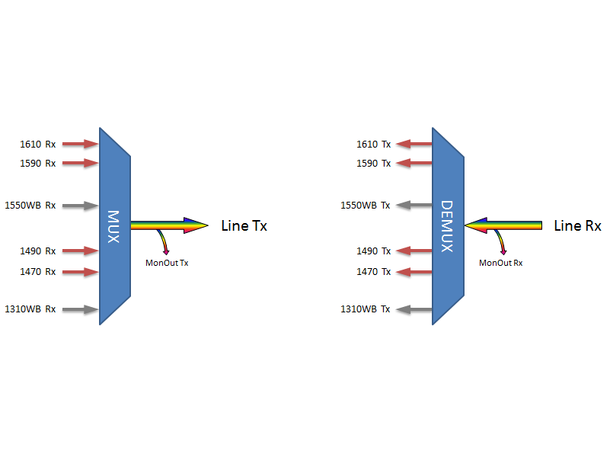

- CWDM channels 1470nm, 1490nm, 1590nm, 1610nm

- With 1310nm and 1550nm wideband ports

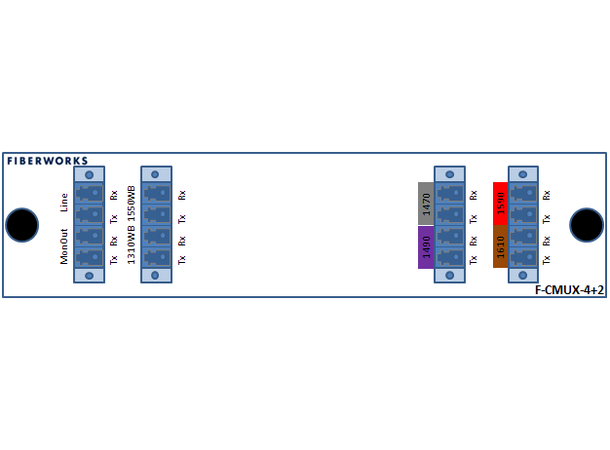

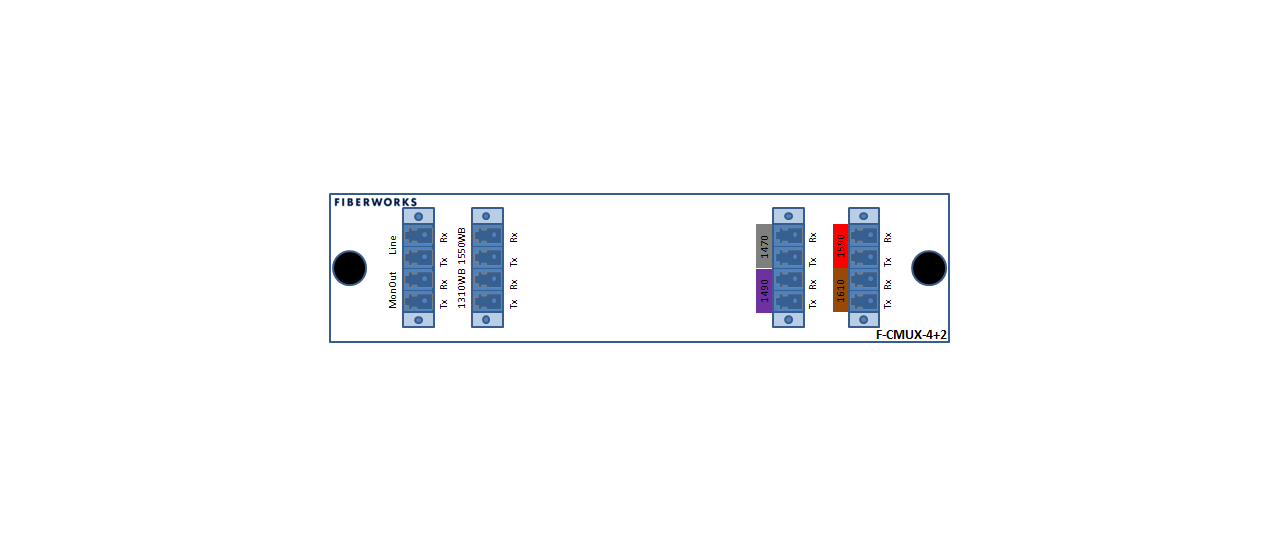

- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

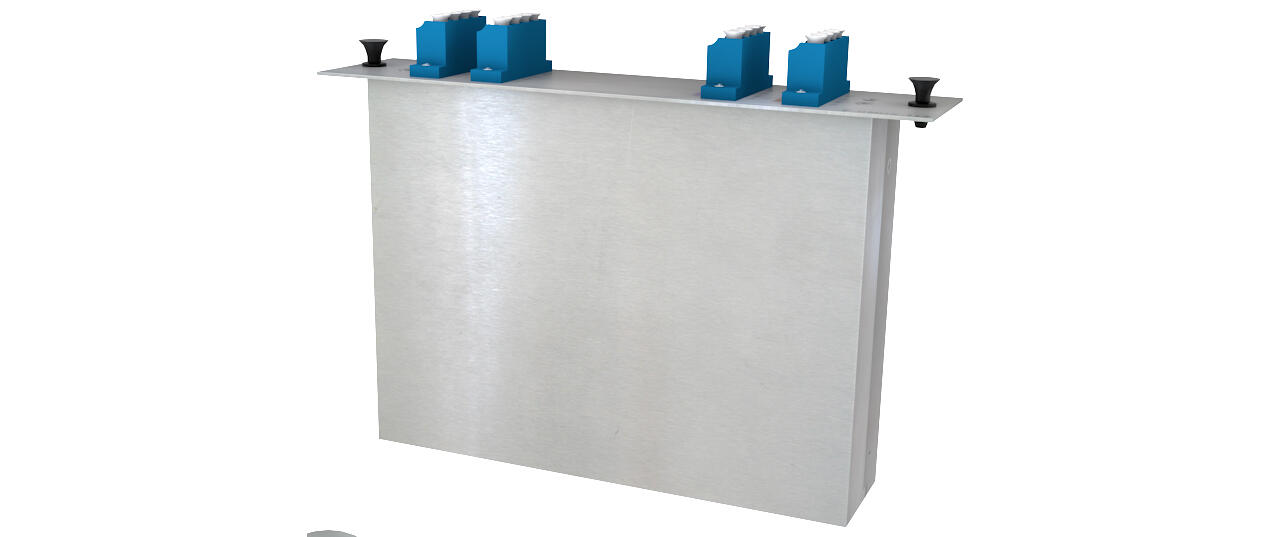

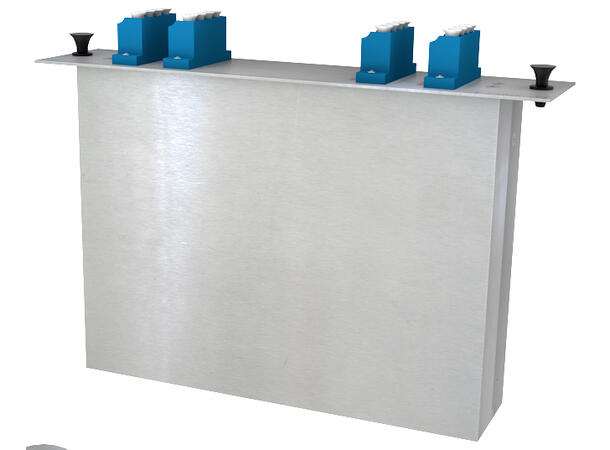

- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor	Fiberworks
Fibertype	SM
Linjefiber	Dobbel (fiberpar, mux+demux)
Antall kanaler	4
Add/drop-muligheter	Nei, kun mux/demux
Konnektortype	Rett (UPC, PC)
Konnektor	LC/UPC
Andre egenskaper	Monitorport Utvidelsesport 1310 nm Utvidelsesport 1550 nm
Produktklassifisering/tollkoder	ECCN: EAR99 HS: 8517.62.0090
