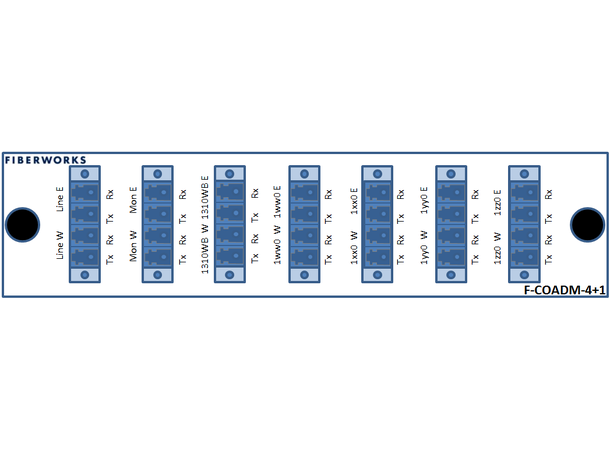

F-COADM-4+1-MLU-4761 Fiberworks AS Fiberworks 4+1 ch. CWDM OADM w/mon.ports C47, C49, C59, C61 + 1310 nm, E+W, LC

Fiberworks 4+1 ch. CWDM OADM w/mon.ports C47, C49, C59, C61 + 1310 nm, E+W, LC

Fiberworks 4+1 ch. CWDM OADM w/mon.ports

C47, C49, C59, C61 + 1310 nm, E+W, LC

Varenr: F-COADM-4+1-MLU-4761

Vis varianter som liste

Datablad / mer produktinformasjon

Beskrivelse

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

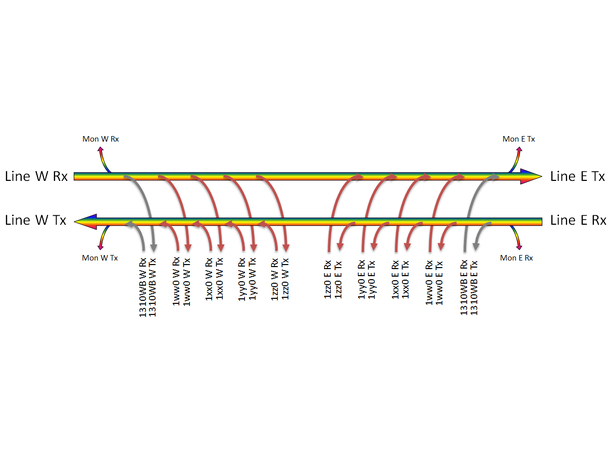

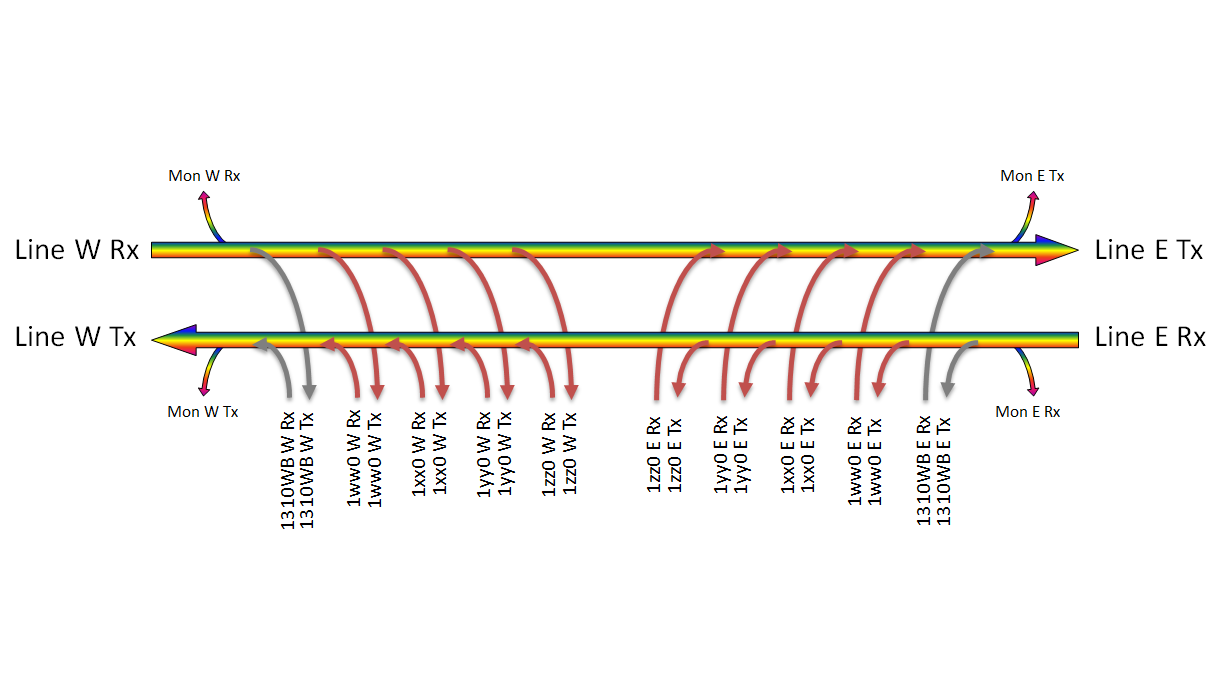

- Optical add/drop multiplexer (OADM) for 4 CWDM channels

- With wideband 1310nm port

- Two directions (east/west)
- Based on thin film optics with epoxy free optical path
- Four 2% monitor ports for easy troubleshooting
- Protocol transparent (support 1G, 10G etc.)
- Two modules fit in 1U in 19" rack

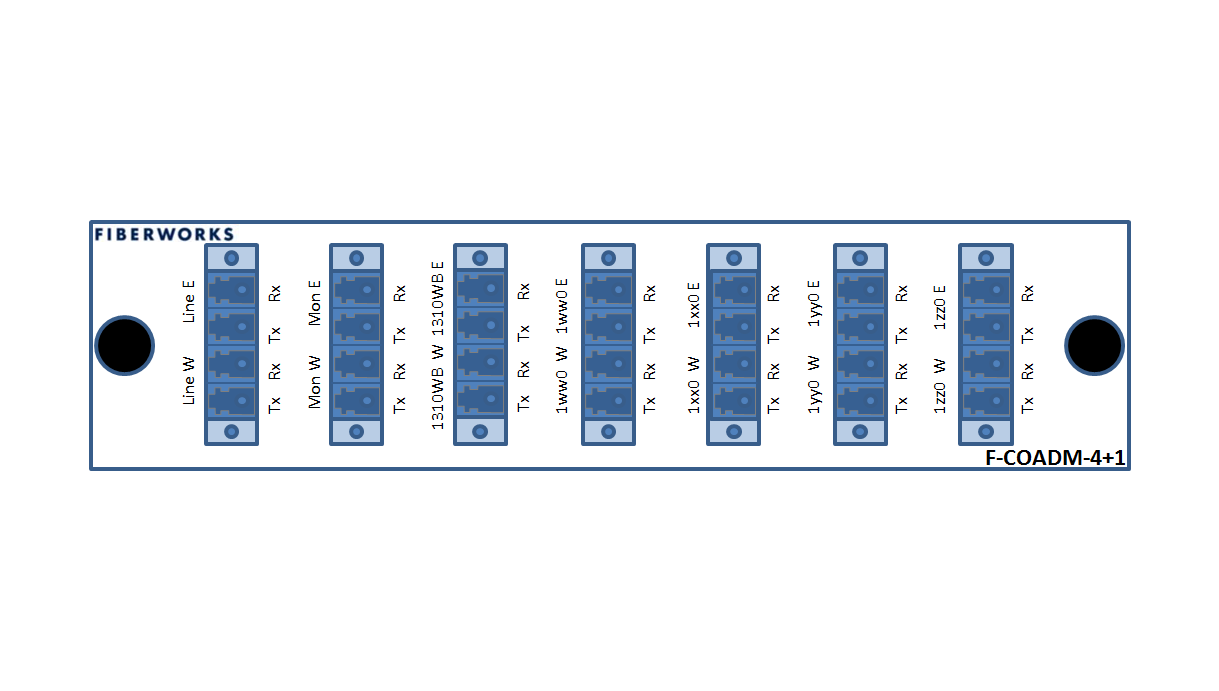

- LC connectors

Teknisk info

Produktinformasjon

Formfaktor	Fiberworks
Linjefiber	Dobbel (fiberpar, mux+demux)
Antall kanaler	4
Add/drop-muligheter	Ja, øst+vest
Konnektortype	Rett (UPC, PC)
Konnektor	LC/UPC
Andre egenskaper	Monitorport Utvidelsesport 1310 nm
Produktklassifisering/tollkoder	ECCN: EAR99 HS: 8517.62.0090
