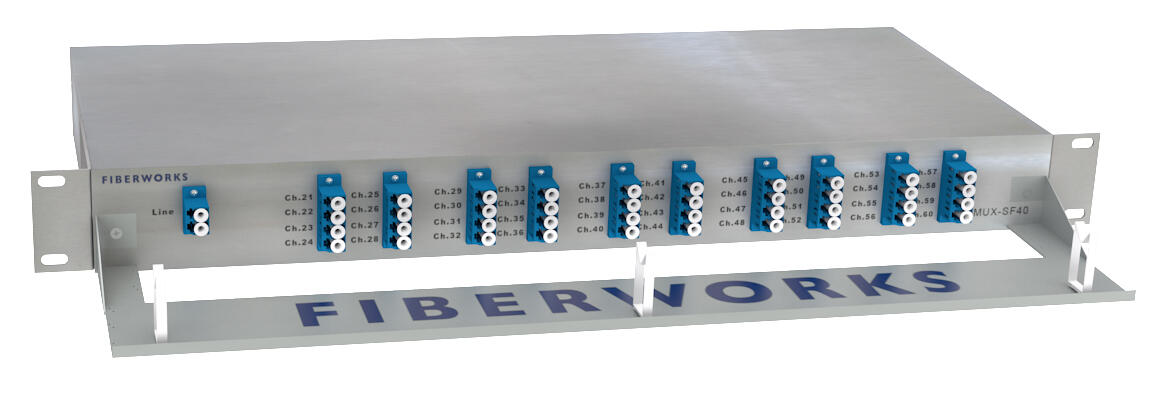

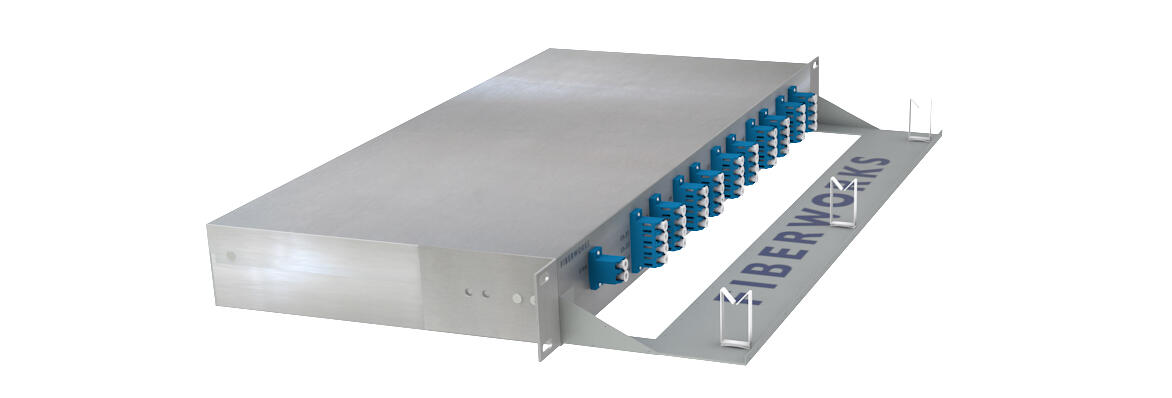

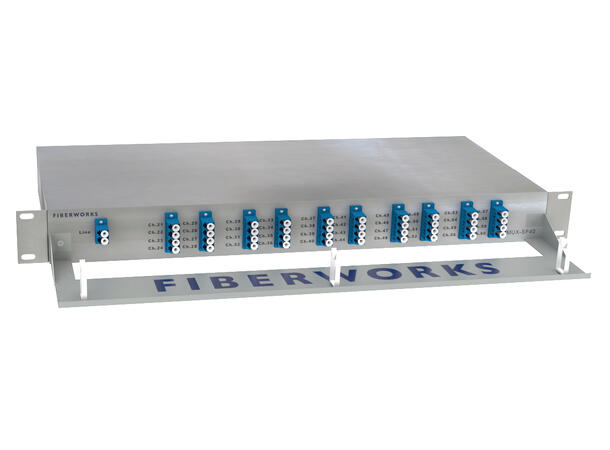

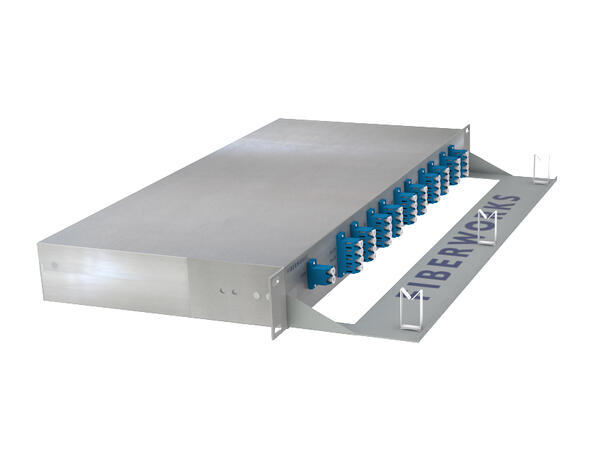

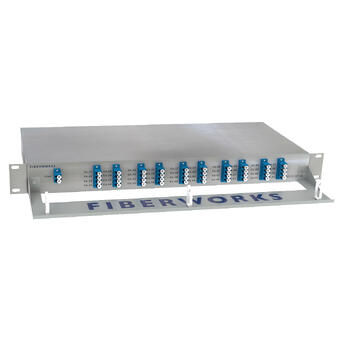

Fiberworks 40 ch. DWDM Mux/Demux 19" 1RU

ITU ch. 21-60, 100 GHz, Single Fiber, LC

Varenr: F-DMUX-SF40-2160-LU
BeskrivelseTeknisk infoTilbehør
Beskrivelse
Med denne multiplekseren får man tilgang til de 40 vanligste DWDM-kanalene til en pris per kanal man er vant med fra CWDM.

FEATURES
- Dense WDM in compliance with ITU-T G.694.1

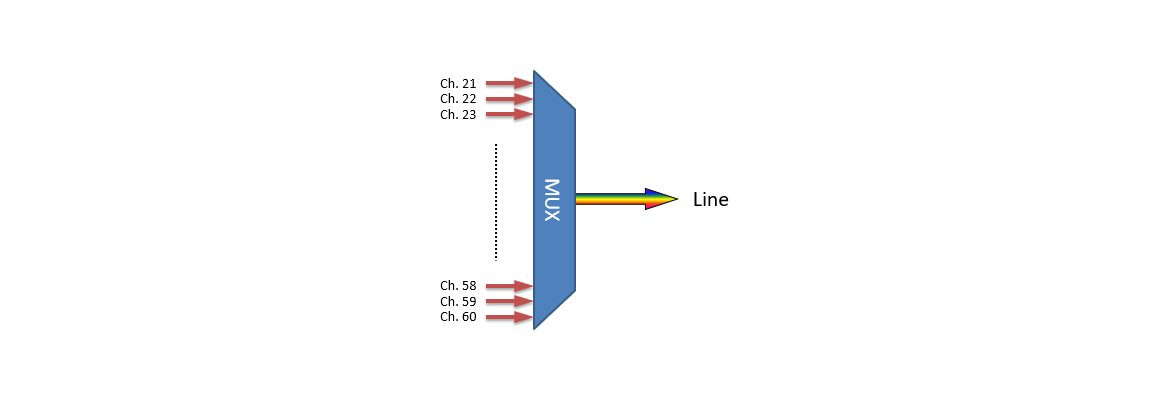

- 40 DWDM channels 21-60 with 100 GHz spacing

- Based on arrayed waveguide (AWG)
- Uniform insertion loss across all channel
- Insertion loss < 4.0 dB
- Protocol transparent (support 1G, 10G etc.)

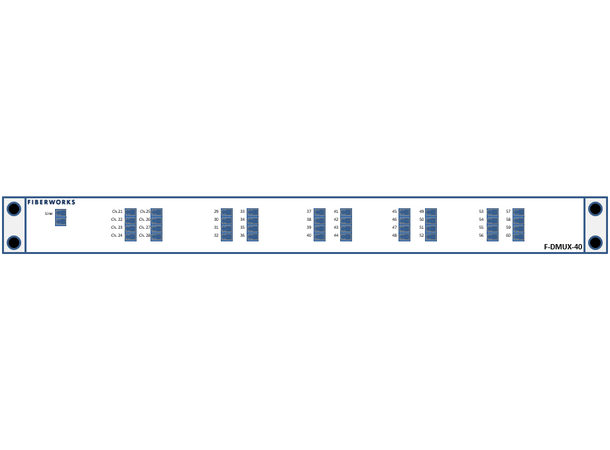

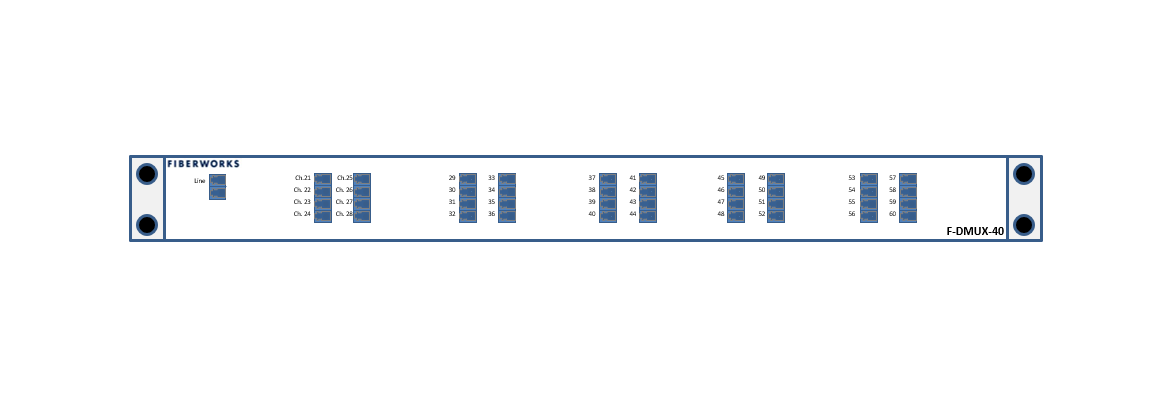

- 19" rack module, height 1U
- LC connectors

Teknisk info

Produktinformasjon

Fibertype SM

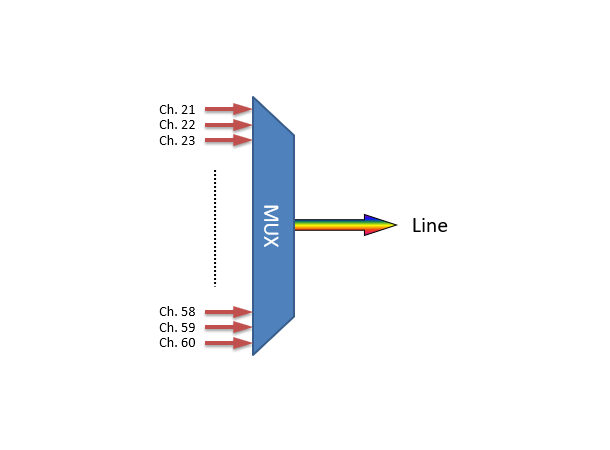

Linjefiber Enkel (bidi, mux/demux)
Antall kanaler 40
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
